10Te Buoyancy Subsea Winch
ROV Subsea Winch with Buoyancy
Description
The Imenco 10Te Subsea Winch is a hydraulic subsea winch intended for offshore subsea pulling operations by use of ROV, and the design is based on the 15Te design. The winch is operated locally and powered hydraulically from an external HPU supplied by ROV via a quick acting coupling live hot stab, and the drive is an orbital hydraulic motor with a drive chain system.
The Imenco 10Te Subsea Winch gives 10 Te line pull at 165 bar, with a maximum hydraulic flow of 200 l/min. The pulling table gives 2 Te at 30 bar, 4 Te at 60 bar, 6 Te at 95 bar, 8 Te at 120 bar and 10 Te at 165 bar. Maximum drum speed is ~0.24 m/s at a drum rotational frequency of 0.51 s⁻¹, depending on the oil flow available from the ROV HPU.
The drum can be rotated 360 degrees for 10 Te line pull in a horizontal plane. A 40 m, 14 mm Dyneema SK78 rope runs through a guiding block for controlled spooling onto the drum, which has a 150 mm core diameter, a width of 414.7 mm and a maximum of 3 layers. Horizontal angle deviation is max ±2°. A modified API 17 D class 4 stab fastened to the bottom plate docks the winch and locks onto the receptacle with vertical locking, and the interface is prepared for bolting onto designed structures.

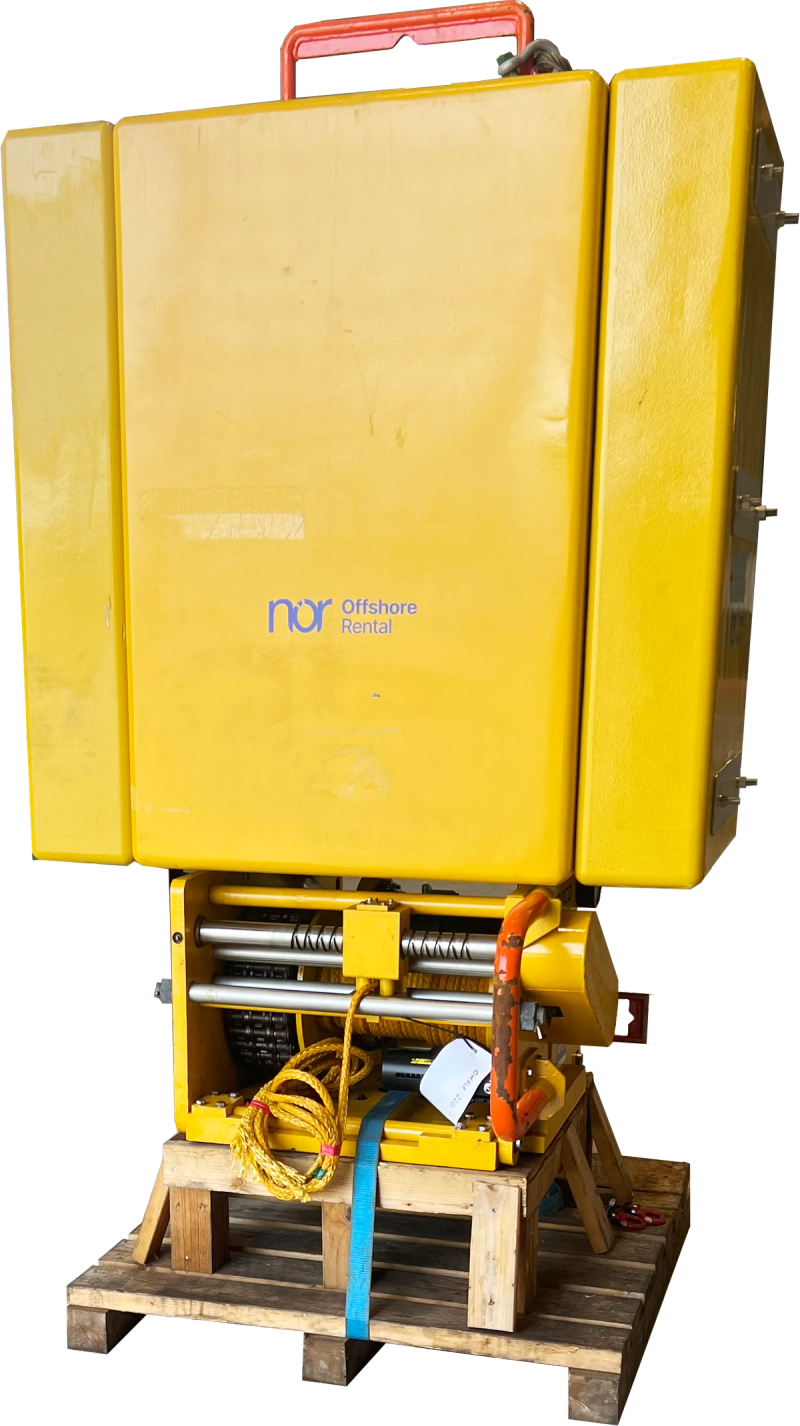

The Imenco 10Te Subsea Winch has removable buoyancy plates. Dry weight is 1750 kg with all buoyancy and 1465 kg with main buoyancy; weight in water is 294 kg with main buoyancy only, 193 kg with main buoyancy and 1 side plate, and 28 kg with main buoyancy and 2 side plates. Overall dimensions are stated as 830.5 × 925 × 776 mm. All structural components are painted to NORSOK M501 System 7B, RAL 1004 yellow.
