Dredging & Excavation
DWT BAG10 Grab
The BAG10 Grab is a 10 m3 ultra deep water tool operated through a salt water based hydraulic system. The Grab is part of a package (Water Tooling PackTM) covering the complete system from ROV to tool. It is developed to be an environmentally friendly and sustainable option to oil-based systems where leakage is a common and severe problem. With oil leakage you will have multiple problems at hand. Not only hurting the environment but also the tool itself when water leaks in, damaging both pumps and valves with increased maintenance and repair as a result. When using the DWT BAG10 Grab you don’t have to bring compensators (oil reservoirs) with you and will therefore have the ability to operate on big depths up to 6000 m.
ROV Skid/Backpack
NOR DOP SKID
The NOR DOP skid is built to use with various of fluids for pressure testing and running of various ROV and intervention tooling. This is integrated with Kystdesign ROV skids.
Torque Tools
Class 5 Verification Unit
The ISO 13628-8 Class 5 Surface Verification Unit (API 17D) is used to give pre-dive surface confirmation of the torque toolcalibration. It consists of a standard ISO class 5 torque reaction bucket with sturdy base and built in torque sensor. The unit comes complete with USB cable to connect to the PSS Torque Tool Control System for Auto Calibration.
Misc. ROV Tooling
Subsea Adjustable ROV Pen
NOR’s new ROV PEN allows the ROV to adjust the crayon colour sticks subsea. This helps save operational time so the ROV does not have to recover back to deck to retract the crayon when used for subsea marking.
Cutting Tools
NOR Saw 60-200 mm
The equipment was constructed to cut pipes under water. It is attached it to an ROV and operated with hydraulics. Thesaw is held in place during operation by built-in clamps and contains a rotating blade that is fed into the workpiece.
ROV Skid/Backpack
ROV Tool Drawer Skid
ROV Tool drawer skid can be fitted to many types of ROV`s, and has space to install DWP, valve packs, IHPU`s or any other applicable equipment which can be supplied by NOR. Here is also the possibility of adding more buoyancy to make it lighter in water. This is a very robust skid which can withstand heavy loads in harsh conditions.
ROV Skid/Backpack
Modular DWP 100 lp
NOR Modular Dirty Work pack is a easy integrated and very robust design to use with various fluids, valve packs, backpacks and skids.
Cutting Tools
NOR Diamond Wire Saw 4-26 inch
The NORSubsea Diamond Wire Saw is designed to be rugged and simple to use. It clamps onto pipes and cuts by operating the feed function on the wire. The saw can be operated by ROV with it`s internal HPUin combination with hot stabs and Valve stabs, or Divers with the help of deck hose reel and HPU.
ROV Skid/Backpack

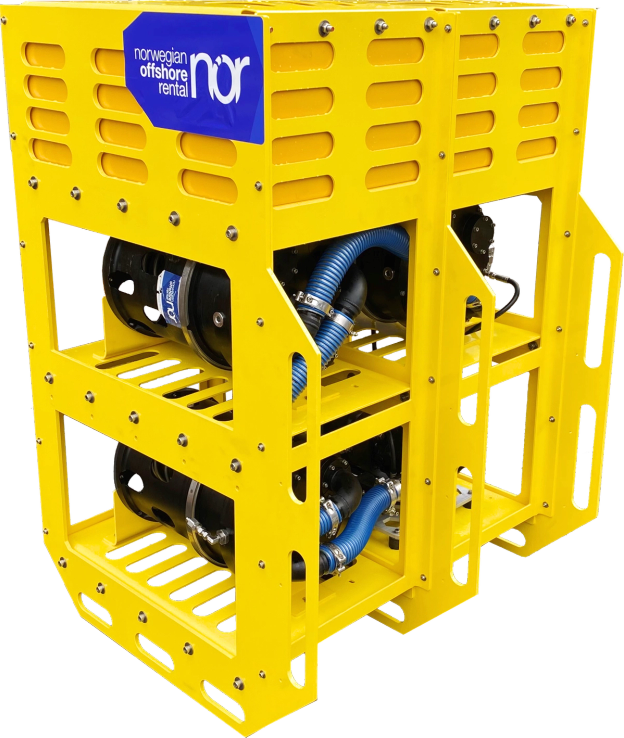

IHPU Backpack Skid
The Isolated Hydraulic Unit is a compact isolated hydraulic system, which is easily integrated to a ROV System andexcellent for fluid injection and for high pressure testing. It is a very versatile system which can be integrated with variousoptions of set up and features.
Dirty Work Packs

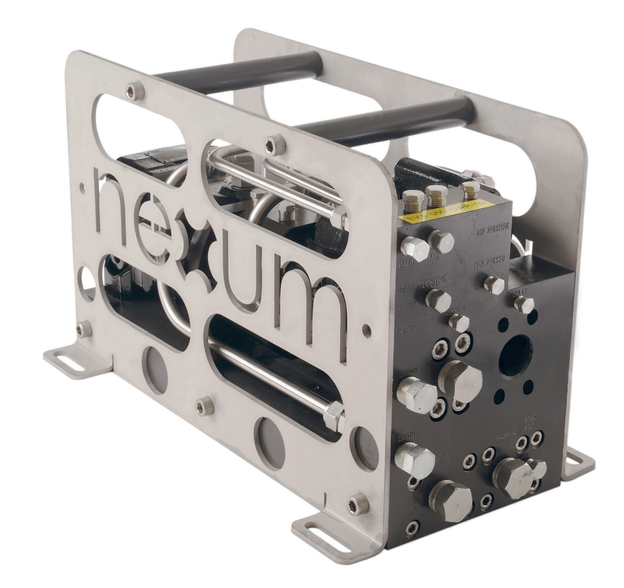

Dirty Work Pack 60 lpm
The motor circuit on the Dirty Work Pack (DWP) has a built-in start/stop valve for remote start/stop, and it has a flow regulator valve for speed control. The pump circuit has a built-in pressure relief valve. It can be internally pressure compensated, remote pressure regulated or connected to a load-sensing valve system. A soft start function is integrated to ensure optimised operation at all times. When the supply and pump pressure are the same, the flow rate is 66% of supply flow. The unit is rated to full ocean depth and can be delivered as a complete unit with oil filters and compensators. The skid can be assembled as a backpack for rear end interface, or a flat skid for interface underneath the ROV.
Hot Stabs

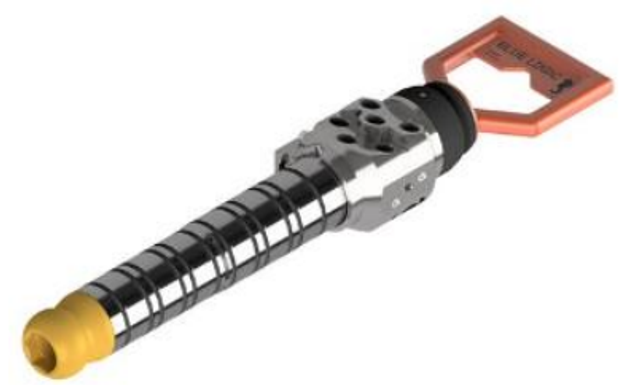

Ø55/Ø57 Valvestab System
Combining hot stab and ball valve technologies in one quick-connector. Connect and disconnect with no fluid spill or water ingress.
Fluid Injection

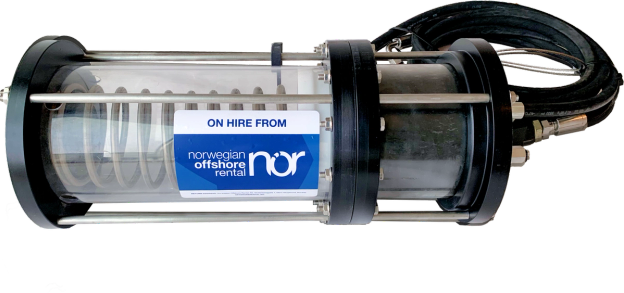

Hydraulic Compensator 2.7L
Imenco hydraulic compensators are made from polycarbonate tubing, aluminium flanges and stainless-steel springs. They are prepared for installation of optional warning compensation volume sensors. Subcon proximity sensors are normally used. Hydraulic connection(s) are done on top with two JIC 1/2” fittings. All nuts and bolts/rods are stainless steel.
