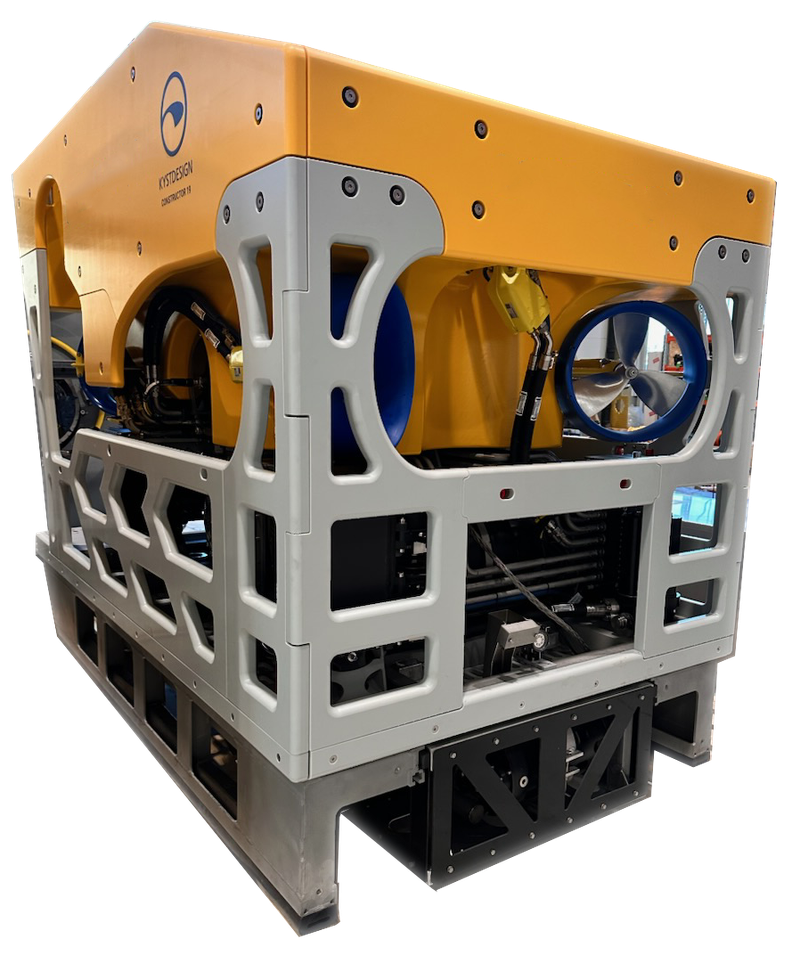

NOR DOP SKID
ROV Fluid Pressure Testing Skid
Description
The NOR DOP Skid is an ROV skid for pressure testing and for running ROV and intervention tooling with different fluids. It is integrated with Kystdesign ROV skids and works with hydraulic and water based fluids (HW443 and Transaqua).
The skid takes a maximum supply of 207 bar and 132 lpm (2200 rpm) and gives an output pressure of 207 bar and an output flow of 100 lpm. It has one high pressure line at 700 bar, with more lines available (optional). The reservoir holds 20 litres in 2 × 10 litre compensators.
The NOR DOP Skid is fitted with a volume sensor, an internal pressure sensor and a water filter (Cardev). Flow sensors and additional reservoirs are available (optional). The skid measures 1320 × 930 × 390 mm and weighs 251 kg in air and 175 kg in water.
