Multiplexer
The Matrix is a stand-alone fibre optic multiplexer and control solution, providing a simple, plug and play interface for a large array of sensors and equipment to any remotely operated system. The system consists of a compact, one-atmospheric subsea unit rated for 3000 MSW, and a 19” rack mounted topside unit with touch screen and status for all channels on the screen.
Multiplexer

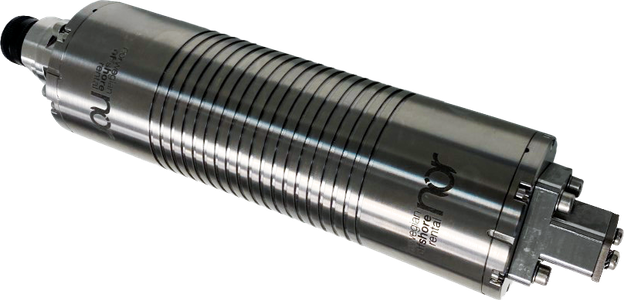

The NOR fiber adapter bottle was created to simplify multiplexer integration with Schilling
Bathymetric & Profiling Systems

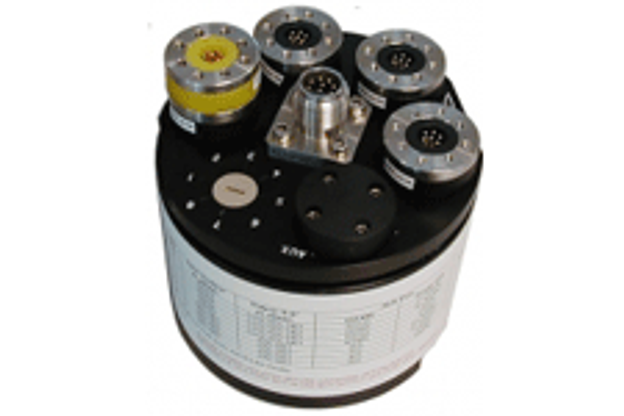

The Tritech Multicomm Intelligent Junction Box simplifies interfacing SeaKing or SeaPrince sensors. The Tritech Multicomm Intelligent Junction Box can be linked to a number of SeaKing sensors and communication can then be made to the SCU (Surface Control Unit) using RS232 protocol. As well as providing RS232 output, the Multicomm can be set to act as a transparent interface allowing communication using Tritech’s ARCNET protocol. This transparent interface also accepts SeaPrince sensors, which provides a simple junction box for system installations where time is critical. The Multicomm not only interfaces to the full range of SeaKing sensors, the Multicomm can also accept a serial output from a third party sensor such as a gyro. This connects to the Multicomm’s Aux Port The flexibility of the Tritech Multicomm Intelligent Junction Box provides users with a package that can be interfaced almost anywhere.
Sonars

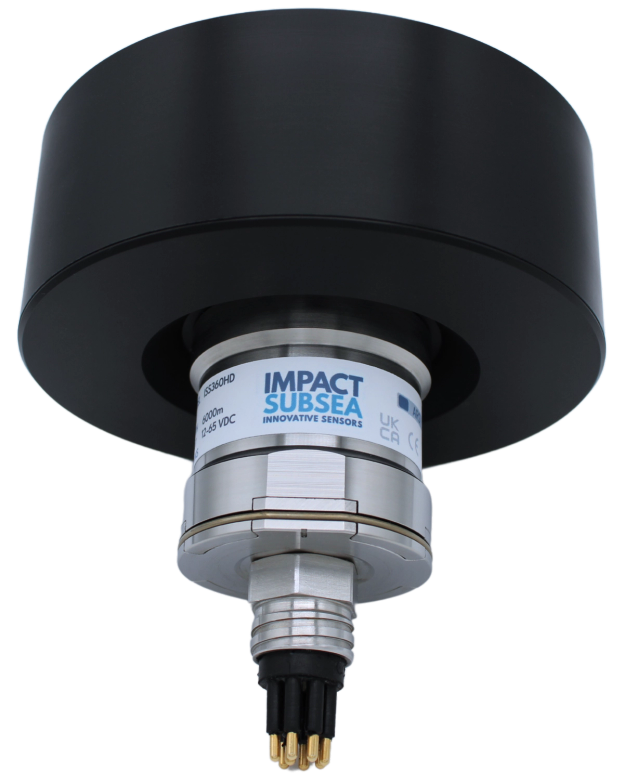

Impact Subsea are proud to present the high resolution imaging sonar – the ISS360HD. Optionally available with integrated Pitch & Roll. Utilising a broadband composite transducer together with an advanced digital acoustic engine provides excellent range capability and image clarity. For applications where Sonar Imaging, Pitch & Roll are required; all can be provided from a single device. The use of Compressed High Intensity Radar Pulse (CHIRP) acoustic signalling enables a significant increase in range resolution while maintaining an excellent range capability.
Bathymetric & Profiling Systems

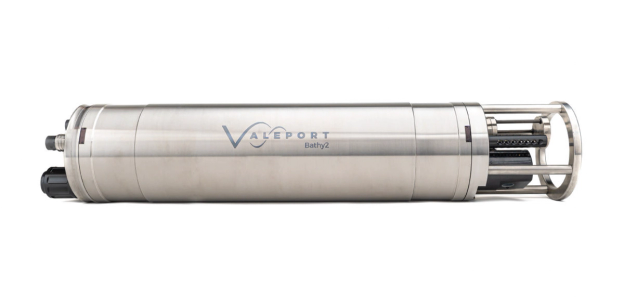

The Bathy2 is an enhancement of the MIDAS Bathypack offering Valeport’s proven construction survey industry standard sensors to generate precision Sound Velocity and Density profiles for highly accurate depth and height data. Key features include interchangeable pressure sensors to maximize accuracy for depth application, external input from a Digiquartz pressure transducer and separate output for INS or other use. Vibration & Shock tested to ISO 13628-6:2006 (Q2 levels).
Multibeams

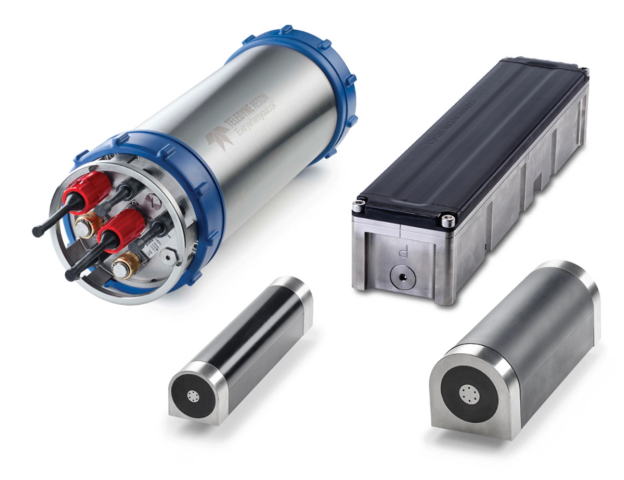

The T50-S is a new addition to the leading SeaBat productrange engineered from the ground up to evolve with yourbusiness.Combined with a Subsea Sonar Processor (SSP), the T50-Sproduces unprecedented clean data, providing faster operationalsurveys and reduced processing time in a fully integratedsonar processing and data storage unit housed in asubsea pressure vessel.The SSP provides internal data storage for self-containedsurvey solution and interfacing via standard Ethernet to reduceintegration time.
Motion Sensors

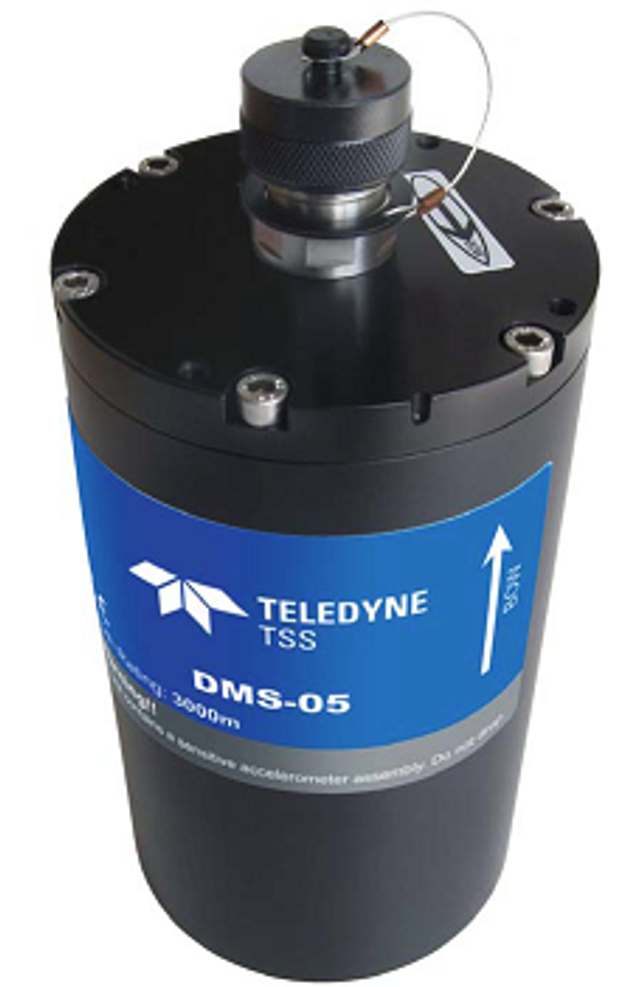

The TSS DMS-05 motion sensor is designed specifically for the emerging needs of multibeam users allowing highly productive surveys aboard small boats, in rough sea conditions undertaking tight turns and rapid speed changes. To benefit fully from the abilities of modern multibeam echosounders and to ensure accuracy standards are maintained and improved, total data confidence must extend across the full cross-track swath width and throughout vessel manoeuvres. Using an emerging generation of processing techniques optimised for the high dynamic marine environment the Sensor provides the ability to combine GPS data with new low-cost inertial sensors, to achieve 0.05° optimal accuracy at an affordable price. The TSS DMS-05 motion sensor can interface to an optional GPS unit or external GPS/DGPS or a speed log if already available. The auxiliary input also accepts Heading Gyrocompass data.
Pipe & Cable Tracking

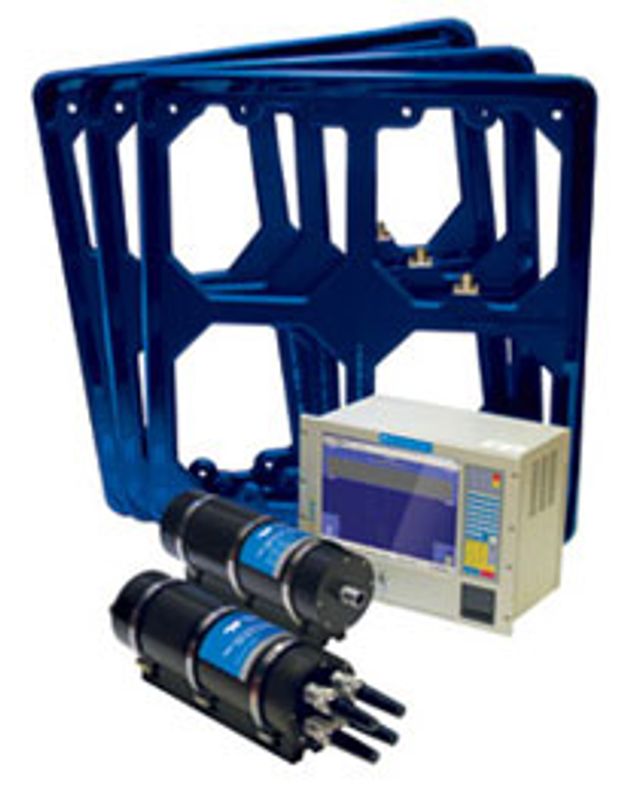

Based on the industry standard TSS 340, the TSS 440 utilises pulse induction technology and advanced digital signal processing to accurately determine ranges to buried pipelines or cables. The system is capable of detecting any conductive material and advances in signal processing techniques enable the TSS 440 to detect at greater ranges than any other pulse induction based survey tool. A fully integrated system, the TSS 440 combines location, steerage and accurate depth of burial survey data to suit a wide variety of applications.
Bathymetric & Profiling Systems

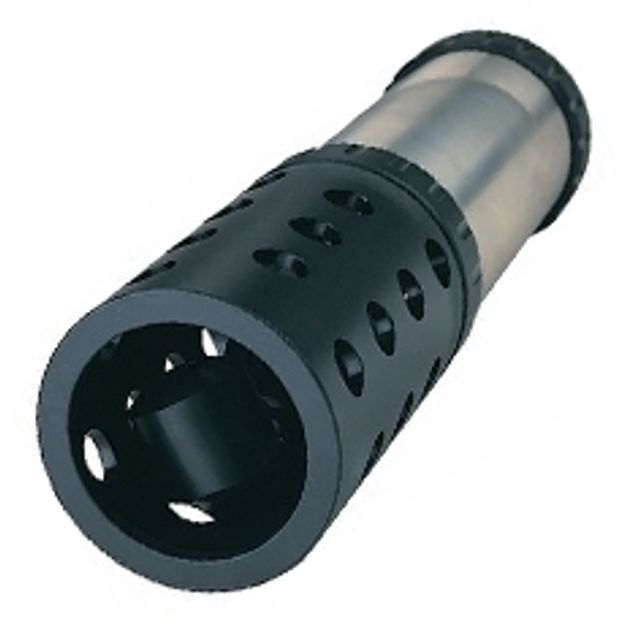

The Tritech SeaKing 704 Bathymetric system comprises up to four high resolution sensors – a depth sensor, conductivity probe, temperature probe and the PA500 altimeter. Two standard configurations are available, either as a pressure only package (SeaKing 701) or as a pressure, conductivity and temperature package (SeaKing 704). The sensors form an integrated package, however, the PA500 altimeter is on a cable and can be mounted separately on the ROV which allows positioning of the individual sensors away from areas of masking or disturbance such as vehicle structure or thruster wash. With the Tritech SeaKing 704 Bathymetric System, full water column profiling is achieved by dynamically modifying a lookup table which contains all measured parameters versus depth. This table may be stored by the surveyors and re-loaded as required. For the Tritech SeaKing 704 Bathymetric System full water column profiling is achieved by dynamically modifying a lookup table which contains all measured parameters versus depth. This table may be stored by the surveyors and re-loaded as required. The SeaKing 704 Bathymetric System operates as a stand-alone instrument, or a single subsea node on the SeaKing network and shares the same twisted pair wiring as the SeaKing Profiler or SeaKing Sonar. Vehicle integration is very simple since only a single pair of conductors are required on the ROV.
Sonars

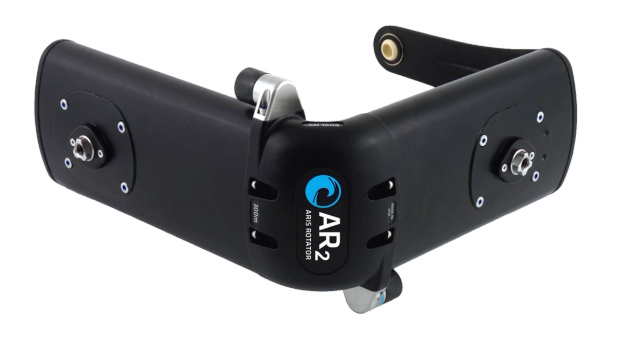

In the pan/tilt mode, the AR₂ rotates a full 360º to enable complete imaging of the surrounding environment. In the tilt/roll mode, varying the roll angle on a target can provide a 3D-like perspective, or can roll 90º to switch between horizontal and vertical imaging modes. Manual and automated control is simple using the intuitive ARIScope software interface. Both the sonar and the AR₂ operate on a single standard cable.
Sonars

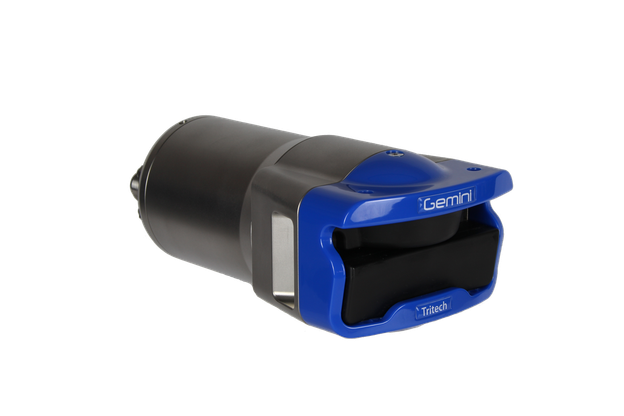

The 720is is the latest generation from Tritech’s renowned multibeam sonar range and offers a real-time, high frequency imaging solution. The Gemini 720is operates at 720kHz and this combined with Tritech’s state-of-the-art processing electronics, produces images of superb clarity. This latest design is ideal for pan and tilt mounting on observation class ROVs.
Bathymetric & Profiling Systems

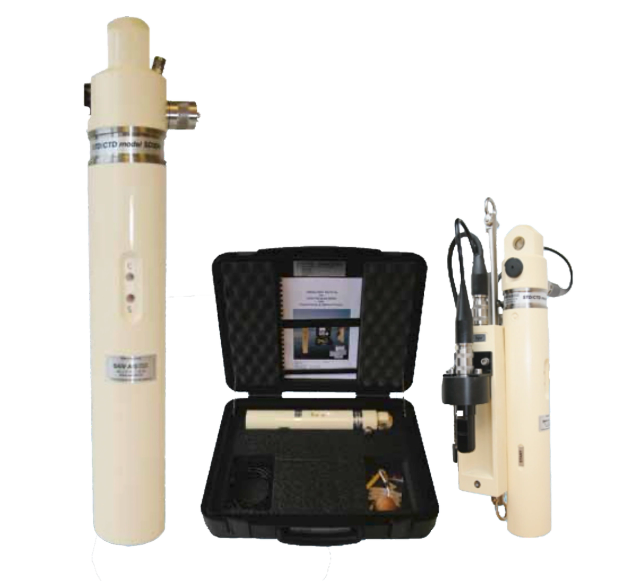

The SD204 measures, calculates and records sea water conductivity, salinity, temperature, depth (pressure), sound velocity and water density.
