Corrosion Monitors
Buckleys Marine Survey Kit
The Buckleys Marine Survey Kit comprises a Weighted Silver/Silver Chloride Half Cell, plastic cable spool and an accurate multimeter. The kit has been specially created to include all items required to easily carry out a corrosion survey of marine structures. The half cell is housed in a PVC body with holes to allow the easy flow of water around the cell. The half cell is weighted to help keep it in position. The cell is connected to the cable spool by 75m of CSP 55/015 cable. Two other leads are supplied to connect the spool and the structure to the accurate multimeter. In use the multimeter is connected to the structure (+ terminal) and the cable spool (- terminal). The Half Cell is then lowered into the sea at the desired position. Turning on the multimeter to the DC voltage range will display the corrosion voltage. The kit can be tailored to suit customer’s requirements. Buckleys Marine Survey Kit (ref: H50) comprises: Weighted silver/silver chloride half cell with 75m cable, two leads for connecting with spool and multimeter, cable spool and multimeter.
MPI

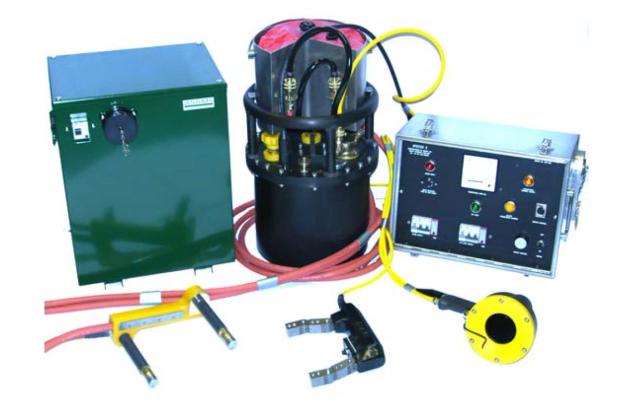

ASAMS System 3 MPI
The ASAMS System 3 MPI is a modular design employing a sophisticated power control Surface Unit and an integrated, pressure compensated, Subsea Unit with built-in ink management systems. A heavy-duty isolating transformer supplies power to the Surface Unit, which is connected to the Subsea Unit via a single 200 metre umbilical, which is deployed from a strong hand operated spooling frame. The Surface Unit is housed in a rugged stainless steel case with removable front cover. Its key features include: • An input-output current ammeter • Earth leakage detectors and trips • A magnetising loop operation indicator • A demagnetising facility. The Subsea Unit has AC and DC outlets or three magnetising techniques – Electromagnetic Yoke, Magnetising Coil and Prods. The Magnetising Coil and Prods can be AC or DC powered, whilst the Yoke is DC powered and allows bolt-on articulated sections to be tted to enable inspection of irregular/awkward shaped work pieces. These three options allow the user to select the best tool for a particular structure or pipeline conguration, increasing operational exibility and speeding up MPI diving programmes. The Subsea Unit contains a 7KVA magnetising transformer, power/supply conditioning choke for the powerful UV lamp and a motor-driven ink circulation system which continuously agitates the magnetic particles. The top of the unit carries a 10 litre ink reservoir tted with quick-release hoses to enable the diver to change the reservoir easily. The Powerful UV Lamp is connected to the Subsea Unit via a 5 metre combined power and ink delivery umbilical. A lever controlled ink nozzle on the lamp head allows one-handed operation.
Thickness Gauges

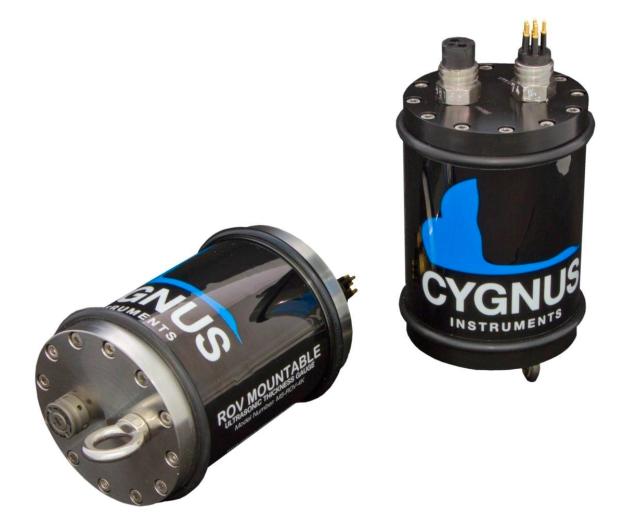

CYGNUS M5 ROV
Cygnus M5 ROV is specifically designed for underwater remotely operated vehicles. These mountable measurement gauges again benefit from the multiple-echo technology found in all Cygnus ultrasonic measuring devices. The Cygnus M5 ROV is truly versatile and designed to measure metal thickness through coatings in the harshest operating conditions. Dedicated software reveals the date, time and thickness readings on the surface which may be logged or stored. In addition, a Topside Repeater (TSR) is available providing the ability to present the thickness measurements remotely and overlay them on to a video signal. This permits the measurements to be superimposed on the ROV camera’s monitor screen.
Thickness Gauges

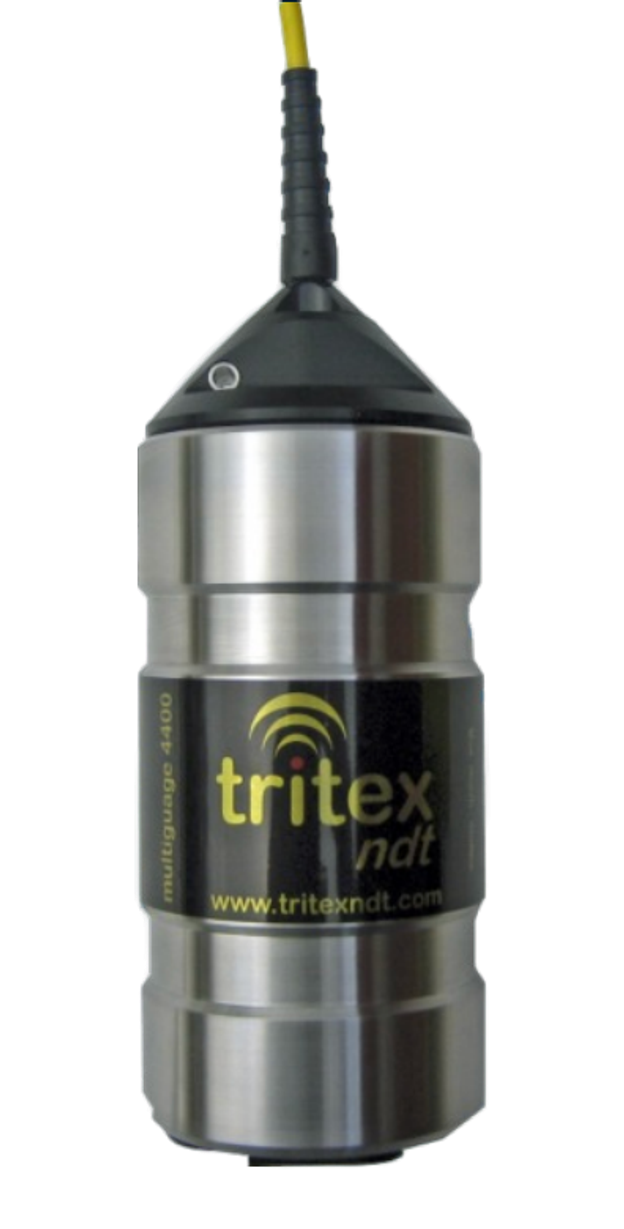

Multigauge 4000 ROV
The Multigauge ROV 4100 and 4400 Underwater Gauges are simple, robust ultrasonic thickness gauges designed to be mounted onto all types of work class ROV’s. There are two models in the range, the Multigauge ROV 4100 which has a depth rating of 1000m and the Multigauge ROV 4400 which has a depth rating of 4000m. Both gauges have been designed and built to survive extremely harsh conditions that exist in the offshore and underwater industries worldwide. The gauges use multiple echo which means measurements can be easily taken without the need to remove coatings, up to 6mm thick, and the selectable RS232 or RS422 output makes connection to most ROV’s simple.
Thickness Gauges

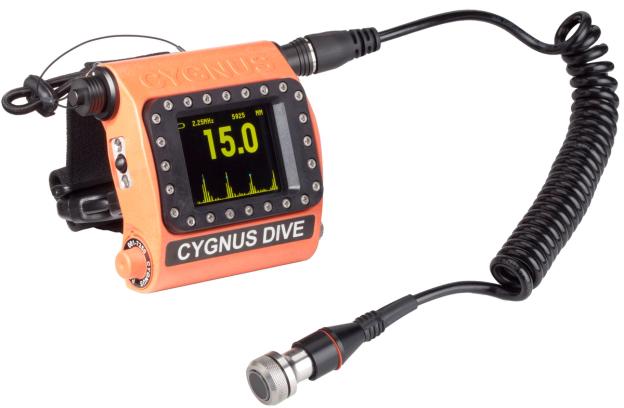

CYGNUS Dive
The Cygnus DIVE is a wrist-mountable, simple to operate, robust underwater ultrasonic thickness gauge which provides an invaluable free hand while performing remaining metal thickness measurements. The Cygnus pioneered Multiple Echo technique is the heart of the electronics and ensures protective coatings up to 20 mm thick are completely ignored, there is no need to remove protective coatings. Additionally, all measurements are automatically checked and verified by the multiple echo technique electronics. The large, bright colour AMOLED display is easily viewable by both the diver and his camera even in the poorest visibility and the operation of the gauge couldn’t be simpler, only two buttons for easy navigation of the intuitive, clear menus. The completely new feature of the Cygnus DIVE MK 2 is the added flexibility of Single Echo mode where Twin Crystal probes can be used. This feature is useful for some specific situations including on; uncoated surfaces that have extreme front face and back wall corrosion, anchor chain links and highly attenuative materials such as cast iron.
Corrosion Monitors

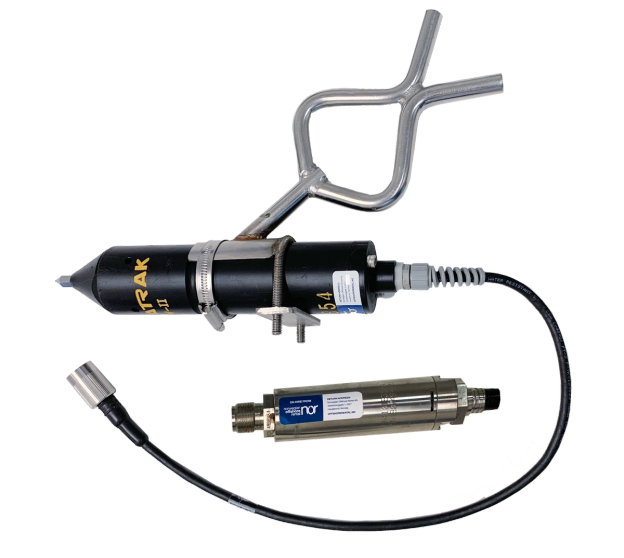

Digital CP System
The iCsys Digital CP System connects to standard CP sensors and converts the analogue signal locally to a digital RS232 or CAN-Bus communication. It simplifies integration into existing systems by eliminating the need for specialized CP sensor inputs. It is possible to log the reading and add notes to be able to print or archive the readings for later lookup.
Flooded Member Detection

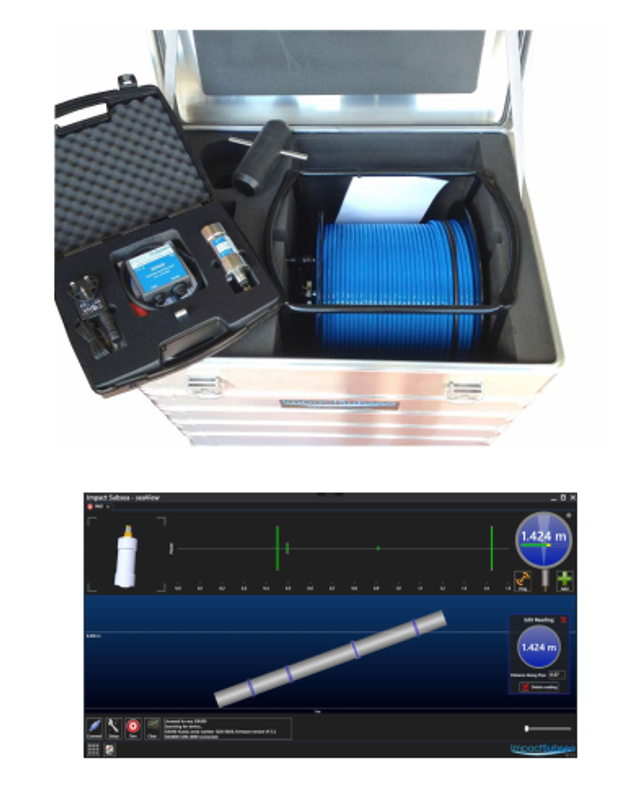

ISFMD Flooded Member Detection System
Impact Subsea is proud to present the ground-breaking ISFMD: the most advanced and reliable acoustic Flooded Member Detection System available today.Suitable for Diver or ROV use, the ISFMD utilises a broadband composite transducer probe together with an advanced digital acoustic engine to provide the highest level of accuracy and reliability in readings. Through the use of advanced acoustics, the ISFMD system removes the logistical, health and safety issues commonly associated with gamma ray based Flooded Member Detection systems. An optional ISD4000 Depth Sensor can be added to the system to automatically record depth of each check point. All readings are shown visually in the seaView software package. A final report of all readings taken is automatically generated – ensuring all data is accurately recorded.
Corrosion Monitors

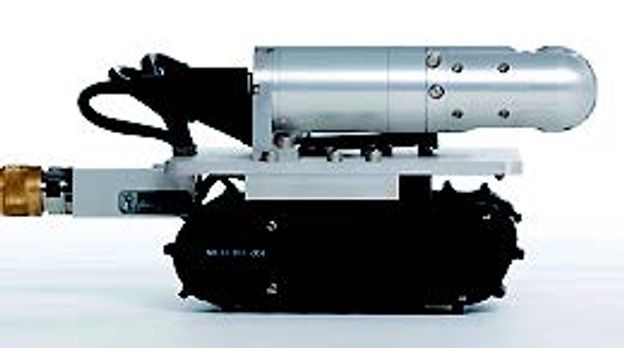

Versatrax 100 Micromag
The Versatrax 100 MicroMag ™ mobile robotic inspection vehicle is compact, waterproof and magnetic. It can be rapidly deployed for many applications that exclude most ordinary ROV’s. The Versatrax 100 MicroMag ™ visual inspection system has been engineered to deliver vivid color video footage in real-time while travelling almost any direction on ferrous metal surfaces. This unique remotely operated device is steerable on vertical, horizontal and inverted plains even when piloted underwater. The standard Versatrax 100 MicroMag ™ crawler is equipped with a flat aluminum chassis, a powerful rare earth magnet component, a pair of rugged aluminum Microtracs™ and an industrial Spectrum 45™ pan / tilt camera that boasts six high intensity LED lights. Two variable intensity halogen lamps provide bright auxiliary lighting when required.
Corrosion Monitors

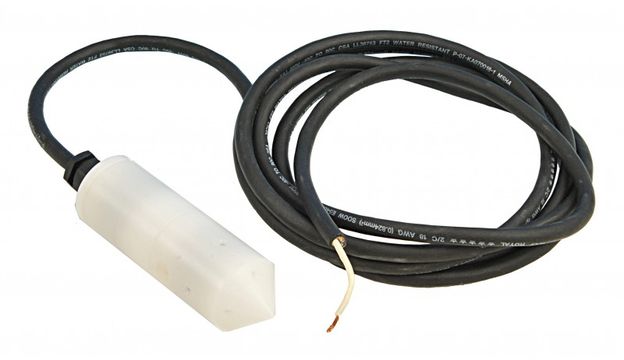

UCP1B Proximity Probe
The UCP1B Proximity Probe is a versatile instrument for conducting underwater cathodic protection potential measurements. The unit is designed for use with manned or Remotely Operated Vehicles (ROVs) and is supplied with three metres of underwater cable. By placing the UCP1B in close proximity to the surface under test, a voltage reading can be obtained on a suitable high impedance or digital voltmeter. The meter should be connected between the probe and a separate structure negative return. The UCP1B Proximity Probe is extensively used in a wide range of applications including production and drilling platforms, ships’ hulls, jetties and other marine works.
Thickness Gauges

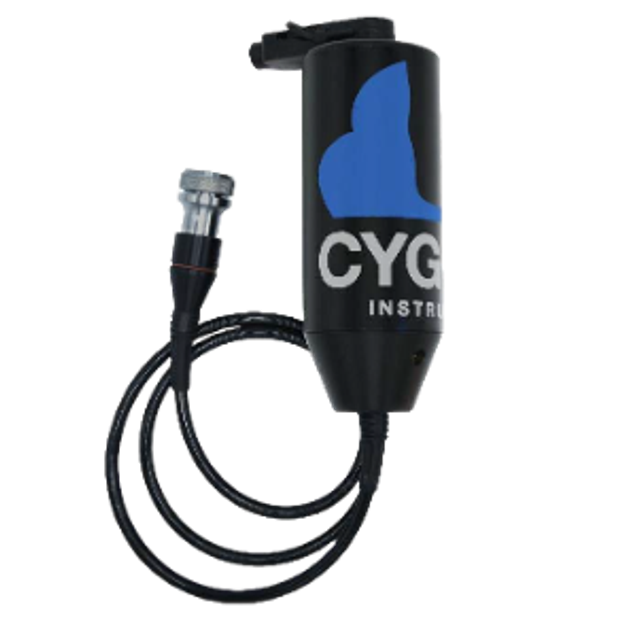

Cygnus Mini ROV Mountable
Ultrasonic Thickness Gauge Specially designed to be mounted onto small observation ROVs with or without a manipulator facility. This subsea thickness gauge allows the operator to carry out an ultrasonic thickness measurement in areas that have previously been unfeasible using larger ROVs or divers – and no need to remove coatings!
Corrosion Monitors

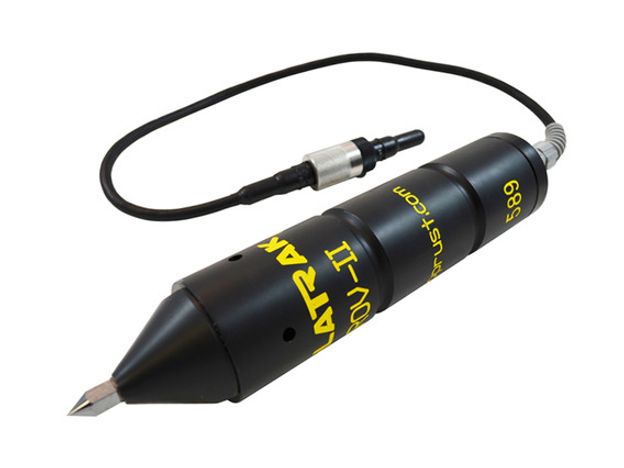

Polatrak ROV II
General Polatrak ROV II is a self-contained ROV-mountable or diveroperated cathodic protection meter/probe. The unit allows the operator to probe a submersed structure to determine its electrochemical potential. Features twin reference electrodes and dual ultrabright digital readouts (when using Polatrak’s Deep C Meter).
Corrosion Monitors

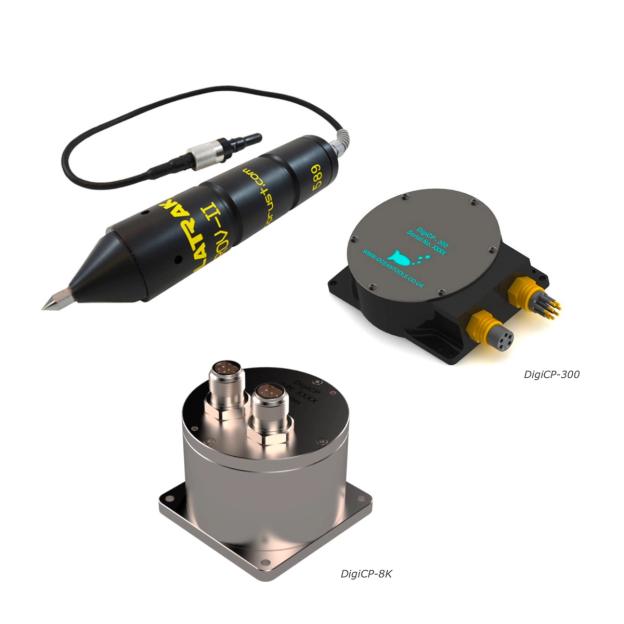

DigiCP combined with Polatrak ROV II
DigiCP combined with Polatrak ROV II Cp probe is a robust and well know system and is easy integrated with a ROV system. Can be used on any windows computer and has output string for overlay.
