ROV Skid/Backpack
NOR DOP SKID
The NOR DOP skid is built to use with various of fluids for pressure testing and running of various ROV and intervention tooling. This is integrated with Kystdesign ROV skids.
Equipment
Explore an extensive range of high-quality products tailored to fulfill your unique requirements.
ROV Skid/Backpack
ROV Tool Drawer Skid
ROV Tool drawer skid can be fitted to many types of ROV`s, and has space to install DWP, valve packs, IHPU`s or any other applicable equipment which can be supplied by NOR. Here is also the possibility of adding more buoyancy to make it lighter in water. This is a very robust skid which can withstand heavy loads in harsh conditions.
ROV Skid/Backpack
Modular DWP 100 lp
NOR Modular Dirty Work pack is a easy integrated and very robust design to use with various fluids, valve packs, backpacks and skids.
ROV Skid/Backpack
IHPU Backpack Skid
The Isolated Hydraulic Unit is a compact isolated hydraulic system, which is easily integrated to a ROV System andexcellent for fluid injection and for high pressure testing. It is a very versatile system which can be integrated with variousoptions of set up and features.
ROV Skid/Backpack

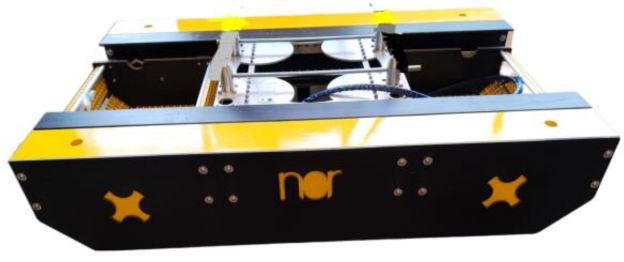

Rov GRP Skid
The ROV GRP Skid consists of one assembly and can be connected to multiple types of work class ROV’s. It is connected to the belly or underside of the ROV with probes attached to the main frame of the skid. The skid is complete with buoyancy and tool drawers in standard design. The front tool drawer is hydraulically activated, and the rear drawer is manually operated. The drawer in the back can be used to fit various vale packs or dwp`s.
ROV Skid/Backpack

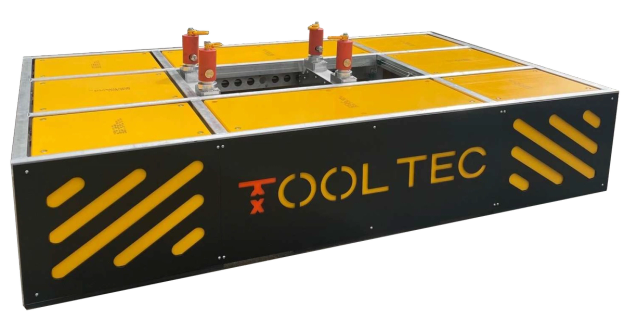

Multipurpose ROV Tooling Skid
Tool Tec’s Multipurpose Tooling Skid is ideal for many applications and can be fitted directly to most ROVs. Itcomes fitted with a full width, hydraulically actuated basket which can be used for storing manipulator deployedtools. The rear and sides of the skid have ample open space to allow fitting of client required equipment such asan IHPU, pressure intensification module or compensators/bladders etc. and these can be easily accessed foradjustment or maintenance through the removal of the skids bolted structural outer members and modularbuoyancy design.
ROV Skid/Backpack

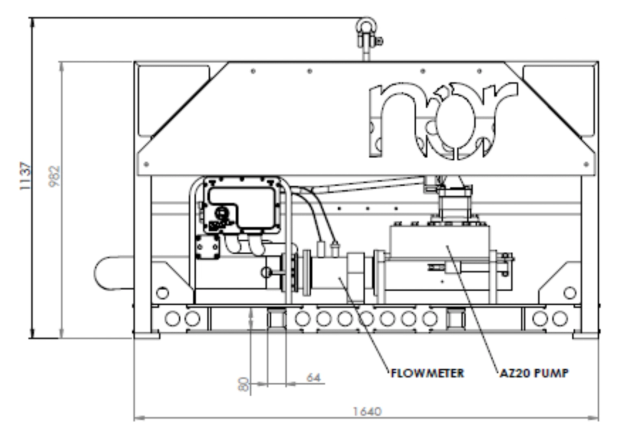

NOR Anchor Boss Backpack
NOR anchor boss system is a system which is easily mobilized on various ROV`s, provides easy integration, powerful AZ20 pump valve pack to operate the pump and logging capabilities. The hose can be connected to stab or any other manifold.
ROV Skid/Backpack
Modular DWP 65 lpm
NOR Modular Dirty Work pack is a easy integrated and very robust design to use with various fluids, valve packs, backpacks and skids-.
ROV Skid/Backpack

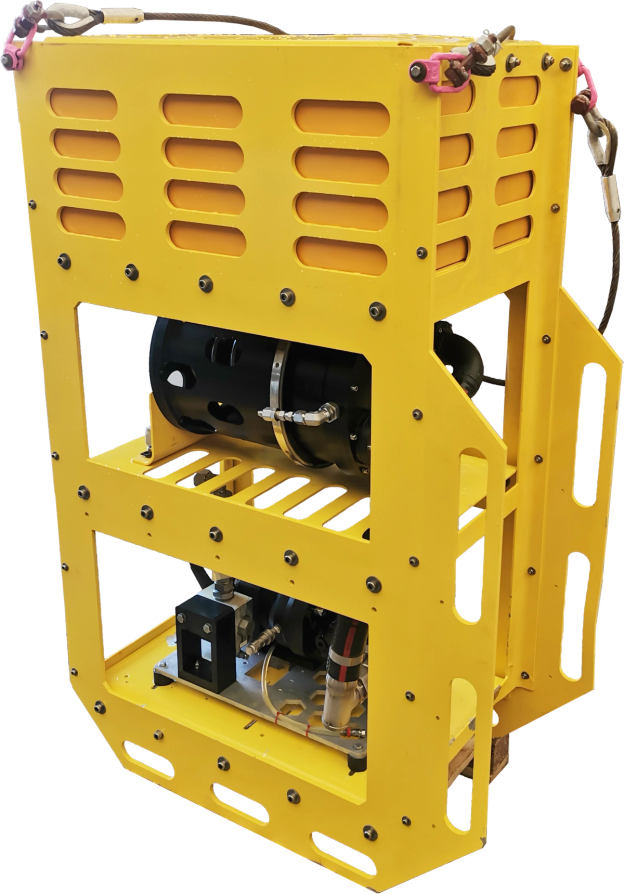

DWP Backpack Skid Medium
The High Flow DWP is a compact isolated hydraulic system, which is easily integrated to a ROV System. It is a very versatile system which can be integrated with various options of set up and features.
ROV Skid/Backpack
DWP Backpack Skid Large
The DWP Backpack Skid is a compact isolated hydraulic system, which is easily integrated to a ROV System and excellent for fluid injection and for high pressure testing . It is a very versatile system which can be integrated with various options of set up and features.
ROV Skid/Backpack

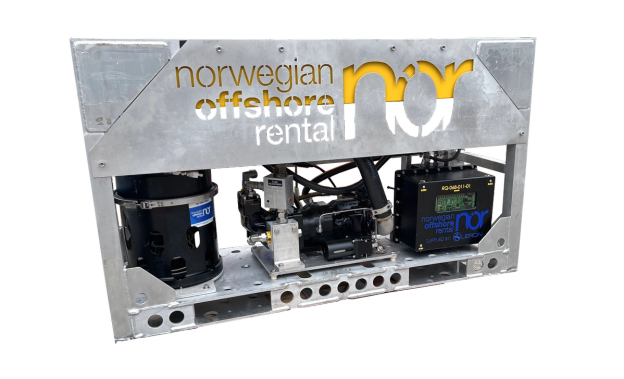

NOR Backpack M
NOR Backpack M was made to be integrated on the back of various ROVs for easy and quick installation. It has great capabilities in regards to operating various ROV tooling or other intervention tasks. With brackets on the back, the backpack can go into the ROV frame for connection points. It also has a lifting point on top to help installation on the ROV.
ROV Skid/Backpack

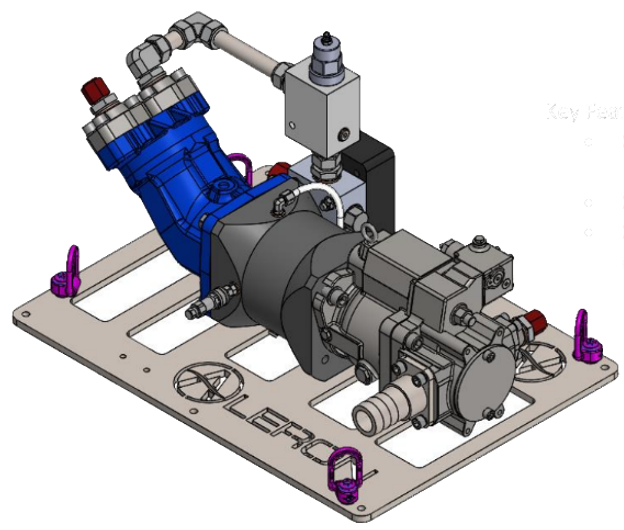

High Flow DWP 0-200lpm
The 200 L/min Dirty Work Pack (RQ-193) is designed to protect the hydraulic circuit of the ROV against external contamination during fluid transfer operations. It utilises a hydraulic motor powered by the ROV hydraulic circuit to drive a pump which supplies the delivery fluid from an external compensated reservoir. This configuration isolates the ROV hydraulic circuit from the delivery fluid circuit and therefore prevents the ingress of contaminants from the external equipment or seawater into the ROV circuit. The input of the hydraulic motor is controlled by a Flow Control Valve and a Pilot Operated Check Valve vehicle. The hydraulic motor drives the delivery fluid pump via a driveshaft. The delivery fluid is to be stored in a spring compensated reservoir. The delivery fluid is supplied at a working pressure of 3000 psi at a flow rate of up to 180 L/min.
