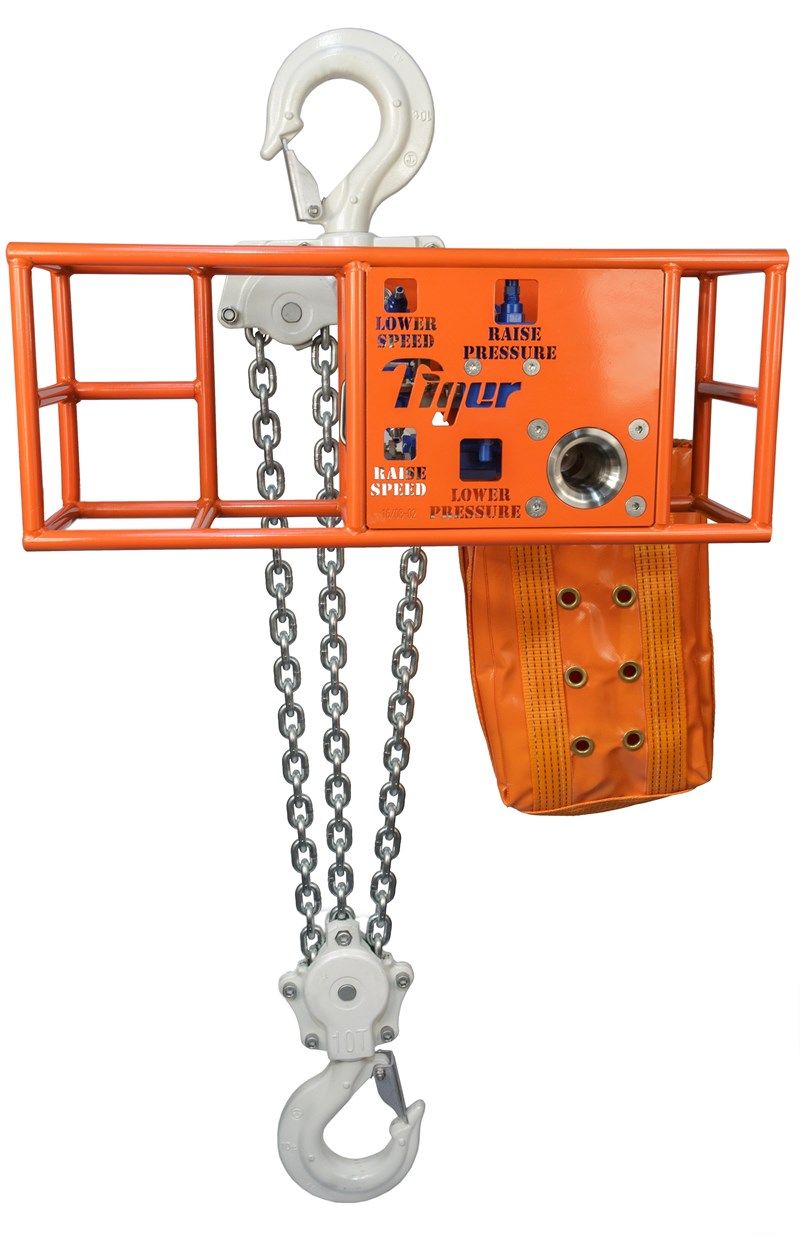

10Te ROV Chain Hoist

Description

The 10Te ROV Chain Hoist is a hydraulic chain block for ROV operation that lifts up to 10 tons when supplied with 210 bar hydraulic pressure through a hot stab connection. The hydraulic motor is driven through a dual port hot stab type A, and the hoist can be pre-set to the starting point required in the rigging drawings.

The 10Te ROV chain hoist has a block capacity of 10 te, 3 falls and a 12 m load chain with a chain diameter of 10 mm / 0.39 in. The standard height of lift is 3 m / 9.8 ft, the chain block effort is 40 kg and the ROV block maximum torque is 50 Nm / 36 ft lbs.

The framework and handle are made of stainless steel 316. The hoist has a subsea brake system and a hand wheel for on-deck adjustment of the height of lift. According to the datasheet, each unit is tested and certified before delivery.

Technical Specification

ROV block capacity

10 te

Hydraulic supply pressure

210 bar (for 10 ton lift)

Hot stab interface

Dual port hot stab type A (2-port)

Chain length

12 m

Load chain diameter

10 mm / 0.39 in

Number of falls

3

Chain block effort

40 kg

Standard height of lift (H.O.L)

3 m / 9.8 ft

ROV block max torque

50 Nm / 36 ft lbs

Framework and handle material

Stainless steel 316

Brake

Subsea brake system

Height of lift adjustment

Hand wheel, on deck

Testing

Each unit tested and certified before delivery
