IMENCO Sabre Cable Cutter 135mm

Description

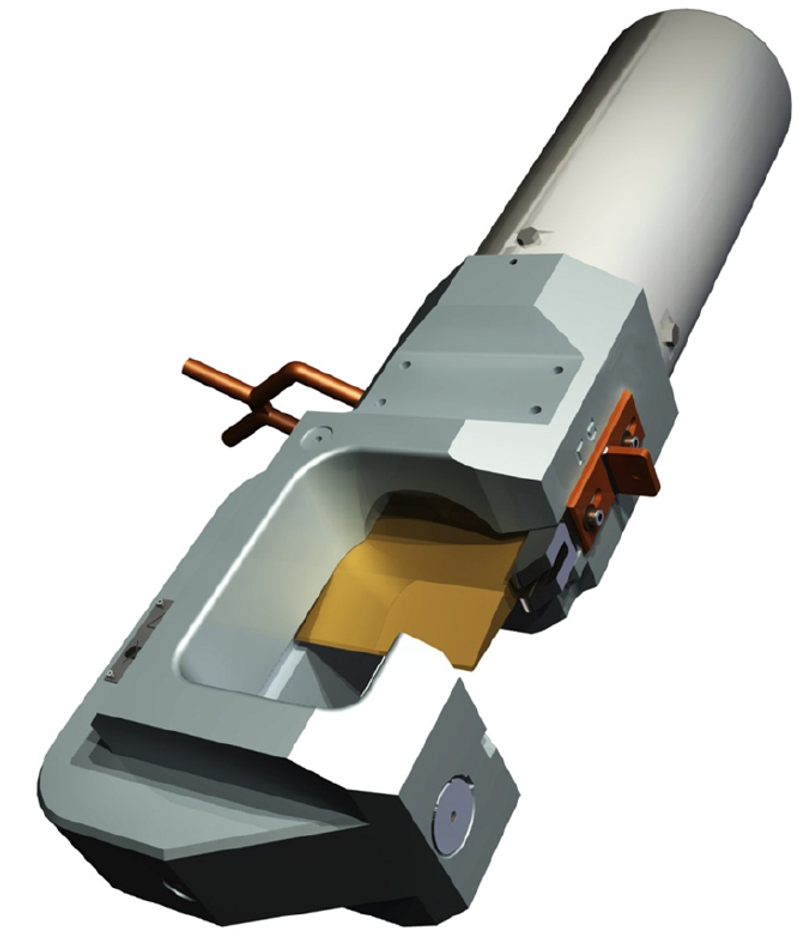

The Imenco Sabre 135 is a subsea hydraulic cable cutter designed to cut cable up to 135 mm diameter. It has a replaceable shear blade and an open jaw for ROV deployment.

The main cylinder of the Imenco Sabre 135 cable cutter takes a maximum input pressure of 700 bar. The cutter weighs 179 kg and has main dimensions of 978 × 205 × 307 mm.

Every Imenco Sabre 135 is delivered with a cable rope gate. An integrated pressure booster, an ROV hot stab system, an intensifier and an accumulator system for emergency cutting operations are available as options.

Technical Specification

Maximum cable diameter

135 mm

Input pressure (main cylinder)

Max 700 bar

Weight

179 kg

Main dimensions

978 × 205 × 307 mm

Jaw

Open jaw for ROV deployment

Blade

Replaceable shear blade

Supplied with

Cable rope gate

Integrated pressure booster

Available (optional)

ROV hot stab system

Available (optional)

Intensifier

Available (optional)

Accumulator system for emergency cutting

Available (optional)
