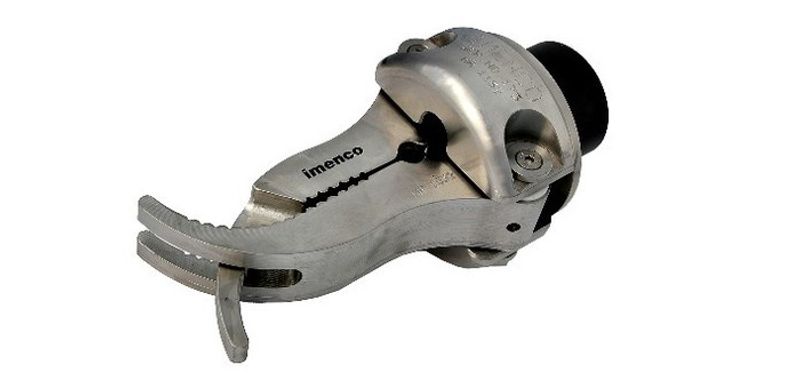

3 Finger Manipulator Jaw

Description

The 3 Finger Manipulator Jaw is a hydraulically operated tool for attachment to a Schilling Robotics work-class ROV manipulator arm. The jaw has three fingers and is made from S165M stainless steel.

The 3 Finger Manipulator Jaw has a maximum jaw opening of 170 mm; jaws made before 2016 have a maximum opening of 165 mm. Cylinder working pressure is 207 bar and the depth rating is 7000 msw. The jaw measures Ø 115 × 263 mm and weighs 5.1 kg.

Technical Specification

Number of fingers

3

Operation

Hydraulically operated

Compatibility

Schilling Robotics work-class ROV manipulator arm

Dimensions

Ø 115 × 263 mm

Cylinder working pressure

207 bar

Maximum jaw opening

170 mm (jaw made before 2016: 165 mm)

Depth rating

7000 msw

Material

S165M stainless steel

Weight

5.1 kg
