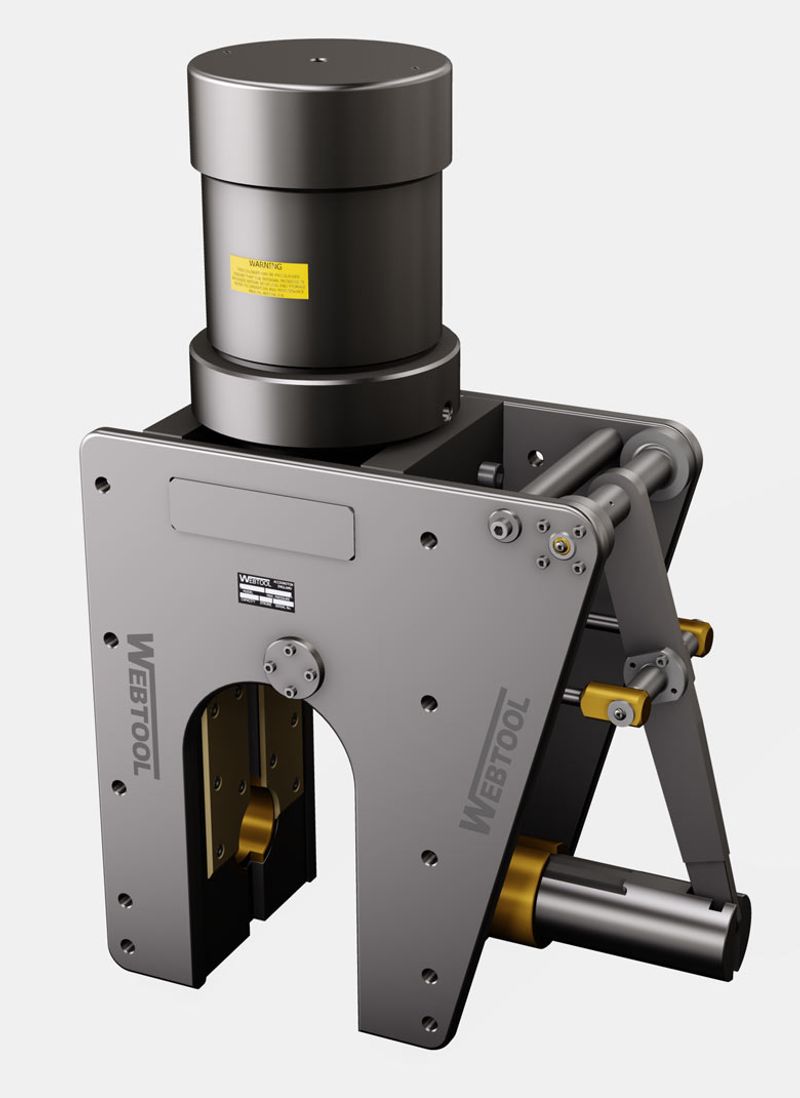

Webtool Wire Rope Cutter RCV155
Hydraulic Wire Rope Cutter for ROV
Description
The WEBTOOL RCV155 is a hydraulic wire cutter for cutting rope and cables with large diameters. It is designed to cut wire rope up to 155 mm diameter and has a hydraulically operated anvil for ROV deployment.
The main cylinder of the WEBTOOL RCV155 takes a maximum input pressure of 690 bar, and the anvil a maximum input pressure of 210 bar. The wire cutter weighs 240 kg in air.
The datasheet lists cutting capabilities for wire rope sizes of 76 mm, 102 mm and 115 mm (grade 2160 N/mm²), 127 mm (grade 1960 N/mm²) and 153 mm (grade 1880 N/mm²). An intensifier is available as an option.
