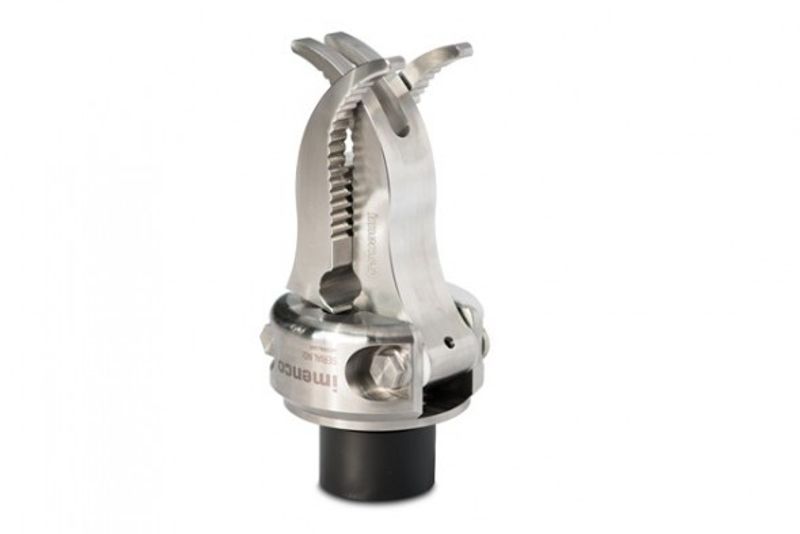

4 Finger Manipulator Jaw

Description

The 4 Finger Manipulator Jaw is a hydraulically operated tool with four fingers for attachment to a Schilling Robotics work-class ROV manipulator arm.

The 4 Finger Manipulator Jaw has a maximum jaw opening of 170 mm; jaws made before 2012 have a maximum opening of 165 mm. Cylinder working pressure is 207 bar, and the jaw measures Ø 115 × 263 mm.

Technical Specification

Number of fingers

4

Operation

Hydraulically operated

Compatibility

Schilling Robotics work-class ROV manipulator arm

Dimensions

Ø 115 × 263 mm

Cylinder working pressure

207 bar

Maximum jaw opening

170 mm (jaw made before 2012: 165 mm)
