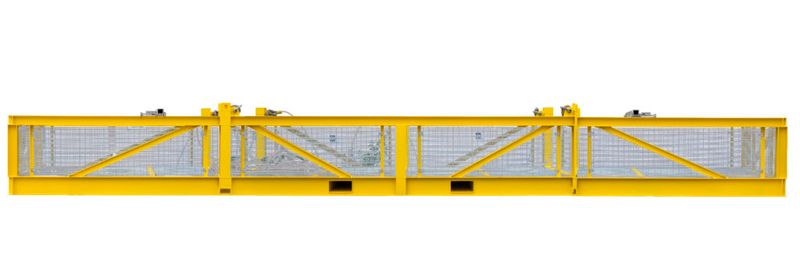

40 FT Subsea Basket

Description

The NOR 40 FT Subsea Basket is used to transport equipment to and from subsea locations, most notably to recover pipe/casing or drill pipe with a large payload. The 40 FT Subsea Basket is built to stack.

The 40 FT Subsea Basket main body measures 2440 × 1519 × 13000 mm, with inner dimensions of 2000 × 1319 × 12680 mm. Tare is 4.5 T, payload is 20 T and gross weight is 24.5 T.

The 40 FT Subsea Basket has a 2 × 2 leg wiresling, 8.6 m, DNV 2.7-1, with masterlink in top.

Technical Specification

Main body dimensions

2440 × 1519 × 13000 mm

Inner dimensions

2000 × 1319 × 12680 mm

Tare

4.5 T

Payload

20 T

Gross weight

24.5 T

Wiresling

2 × 2 leg, 8.6 m, DNV 2.7-1, with masterlink in top

Stacking

Built to stack
