8 station

Description

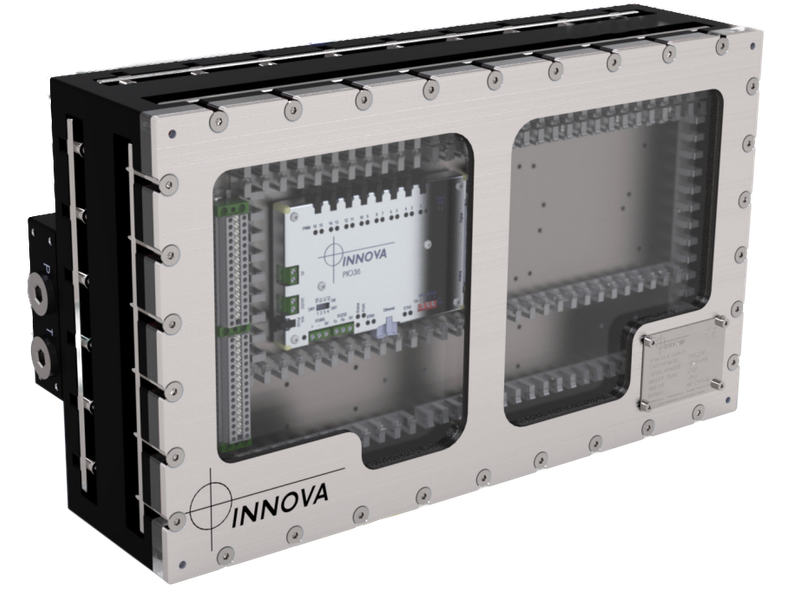

The 8 station is a subsea valve pack with up to eight 4/3-way NG4 control valves, available with any combination of solenoid and proportional valves. Design pressure is 250 bar and nominal valve flow is 30 lpm, with pressure transmitters on the P and T ports and temperature measurement on the T port.

The valves are controlled by an Innova PIO36 pressure tolerant controller board over Ethernet, RS232 or RS485. The pack can be run from the Innova Topside GUI software or integrated into an existing control system using MODBUS over serial or Ethernet. A transparent lid and LED indicators on all functions show valve operation during testing and diagnostics.

The housing is hard anodized aluminium with a polycarbonate lid and external compensation. It measures 400 × 245 × 156 mm excluding connectors and weighs 30 kg in air and 18 kg in water. Power and communication run through one Glenair SuperG55 connector, and four MCBH connectors are available for external equipment.

Technical Specification

Valves

Up to 8 × 4/3-way NG4 control valves, solenoid and/or proportional

Design pressure

250 bar

Valve nominal flow

30 lpm

Sensors

Pressure transmitters on P and T ports; temperature on T port

Hydraulic supply and return

G1/2 (G3/8 secondary)

Hydraulic output ports

G3/8

Connectors

1 × Glenair SuperG55 5506-2008 (power and communication); 4 × MCBH for external equipment

Controller

Innova PIO36 pressure tolerant embedded controller

Outputs

16 × 24 V PWM or on/off, 2 A per function

Inputs

16 × analog (16-bit ADC); 4 × isolated digital 24 VDC

Communication

Ethernet, RS232 or RS485; MODBUS over serial or Ethernet

Power consumption

Max 10 A @ 24 VDC

Water alarm

Yes

Housing

Hard anodized aluminium, polycarbonate lid, external compensation

Weight

30 kg in air, 18 kg in water

Dimensions (L × W × H)

400 × 245 × 156 mm (excl. connectors)

Software

Innova Topside GUI available for valve control, sensor readout, calibration and logging (configuration dependent)
