Accumulator System for Emergency Release Cutter

Description

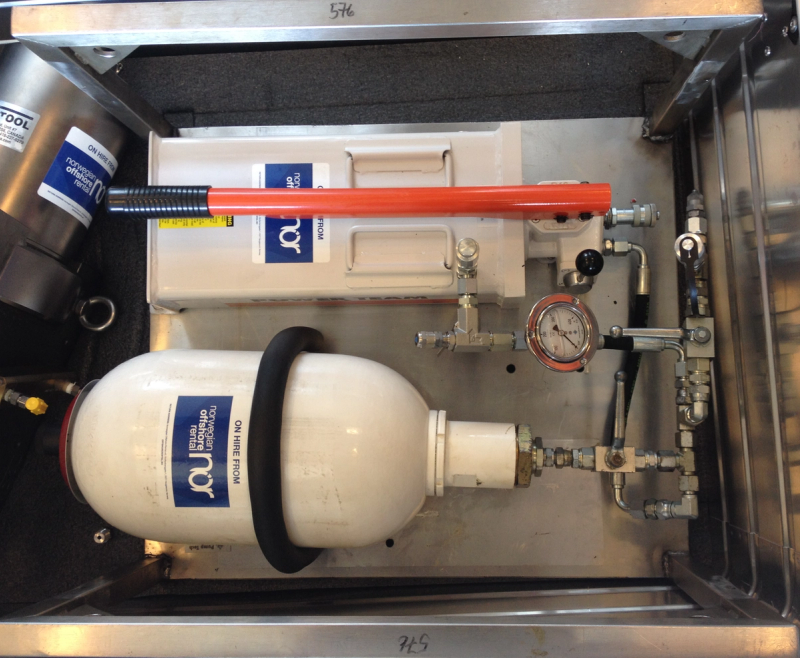

The Accumulator System for Emergency Release Cutter is an accumulator system designed to be used together with a wire/hose cutter. It allows the wire cutter to be operated in an emergency situation where all power from the ship or rig is lost.

The accumulator system is pre-loaded with sufficient power to cut the designated wire/cable without any external power. The accumulator is rated 10 l / max 330 bar, and the system is delivered with a hand pump rated 5.5 l / max 700 bar.

The Accumulator System for Emergency Release Cutter has a frame made from stainless steel, measures 1182 mm (l) × 782 mm (b) × 500 mm (h) and weighs 70 kg.

Technical Specification

Application

Emergency operation of a wire/hose cutter without external power

Accumulator

10 l / max 330 bar

Pump

5.5 l / max 700 bar

Supplied with

Hand pump

Frame material

Stainless steel

Dimensions (l × b × h)

1182 mm × 782 mm × 500 mm

Weight

70 kg
