LMS Air Skates

Description

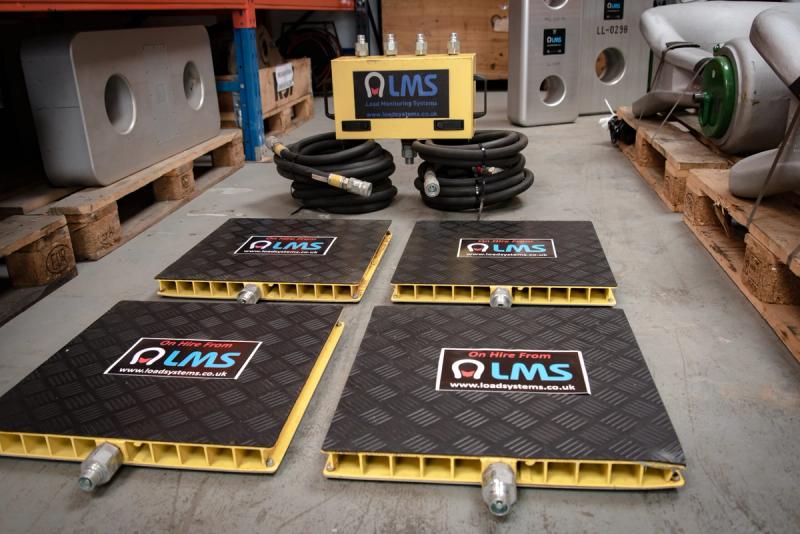

LMS Air Skates are low-profile air bearing modules for moving heavy and bulky loads in workshops, yards and other areas where forklifts and cranes cannot reach. Used in sets of four or six, they float the load on a thin film of air, which virtually eliminates friction and causes no floor wear.

The skates are connected to a control unit through a hose manifold and powered by a regular workshop air supply of 5 to 7 bar. The control unit regulates the air flow to each skate to suit the load and floor conditions, lifting the load clear of the floor so it can be moved and positioned precisely in any direction.

Capacities range from 7 t to 240 t for a 4-module set and from 10.5 t to 360 t for a 6-module set, depending on module size. A system includes the air bearing modules, interconnection hoses with quick release couplings, a control unit with a pressure regulator and gauge for each module, a 30 m supply hose with shut-off valve, and a storage box.

Technical Specification

System sizes

4-module or 6-module sets

Capacity (4-module set)

7,000–240,000 kg

Capacity (6-module set)

10,500–360,000 kg

Air supply

5–7 bar workshop air (6 bar nominal)

Air consumption (4-module set)

1,120–11,000 Nl/min

Air consumption (6-module set)

1,680–16,500 Nl/min

Module size

304–1,505 mm

Module height

31–71 mm

Nominal lifting height

15–75 mm

Interconnection hose ID

1/2", 3/4" or 1"

Supply hose ID

1", 1 1/2" or 2"

Floor conditions

Air consumption figures apply to power-trowelled, sealed concrete

Included

Air bearing modules, interconnection hoses with quick release couplings, control unit with regulator and gauge per module, 30 m supply hose with shut-off valve, storage box, operating instructions

Options

Control unit with ball casters, assembly brackets or swivel wheels; 8 or 10 m interconnection hoses; 50 m supply hose; outlets for air jacks and external drive units
