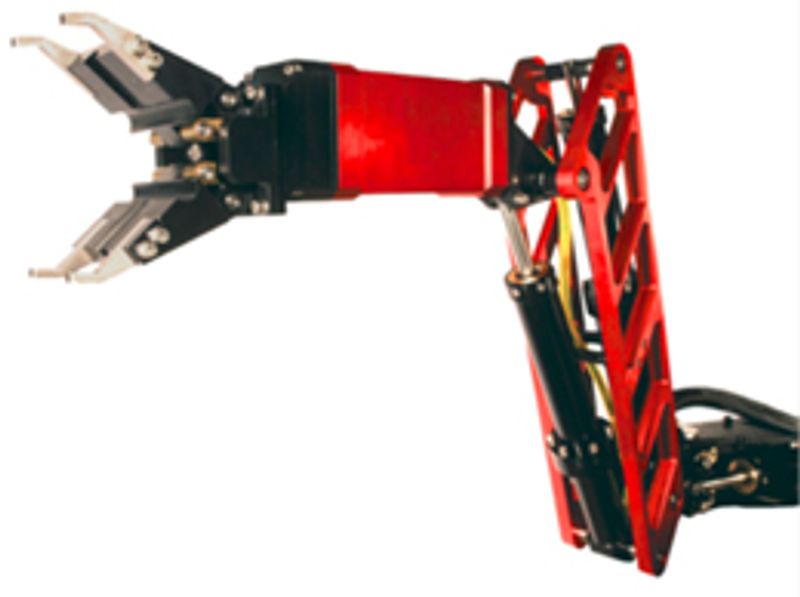

ARM 5E

Description

The ARM 5E is an oil-filled electric manipulator arm with a depth rating up to 6000 m. The datasheet lists underwater intervention, underwater manipulation, object retrieval, nuclear environment operations and EOD as applications.

The ARM 5E has a reach of 1000 mm and lifts 25 kg at full reach at 24–30 Vdc, 4 Amps per function. Slew is 120° with LH or RH mounting, elevation is 90° and elbow bend is 130°.

The ARM 5E manipulator has a modular construction for maintenance and repair on deck.

Technical Specification

Slew

120° LH or RH mounting

Elevation

90°

Elbow bend

130°

Reach

1000 mm

Lift at full reach

25 kg at 24–30 Vdc, 4 Amps per function

Depth rating

Up to 6000 m

Jaw rotate

Continuous

Jaw opening

140 mm at the tip

Jaw rotate torque

> 25 Nm at 4 Amps

Jaw rotate speed

~ 48 rpm at 24 Vdc

Jaw closing force

~ 60 kg at 4 Amps

Weight in air/water

27 kg / 18.5 kg

Materials

6082 T6 alloy, hard anodized

Power supply

24–30 Vdc

E-link options

RS232, RS485

Construction

Oil filled, modular
