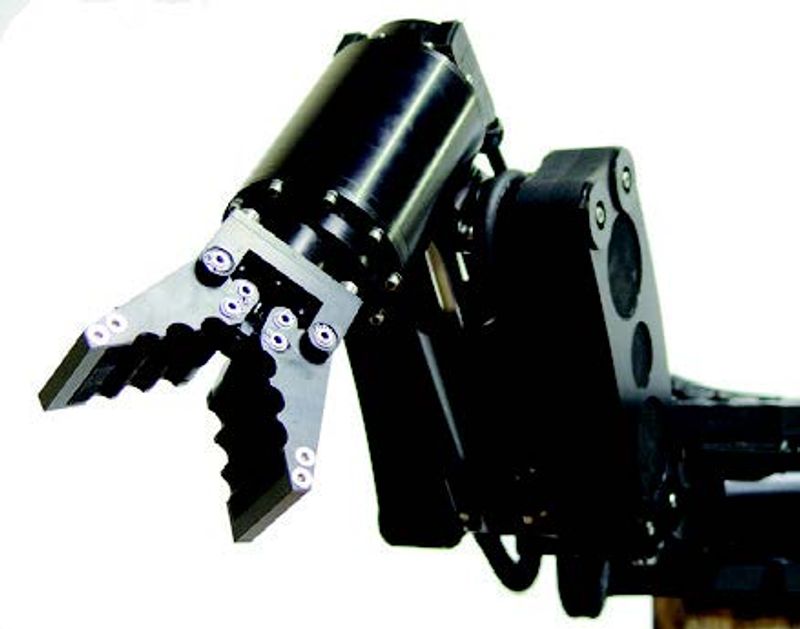

ARM 5E Micro

Description

The ECA Hytec ARM 5E Micro is a 5-function underwater electric manipulator arm for very light ROVs. It is powered by brushless 24–30 Vdc electric motors and uses a zero oil system rated to 300 m.

The ARM 5E Micro has a reach of 640 mm from the slew pivot and lifts 10 kg at 0.5 Amps at full extension. Slew is 120° with LH or RH mounting, elevation is 90° and elbow bend is 130°. The jaw rotates continuously, opens 125 mm at the tips, has a rotate torque of >10 Nm at 2 Amps, a rotate speed of ~49 rpm at 24 Vdc and a closing force of >50 kg at 2 Amps.

The ECA Hytec ARM 5E Micro weighs 10 kg in air and 2.75 kg in water (total mass), with a mobile mass of 2.2 kg. It is made of hard anodised 6082 T6 aluminium alloy with Airex C70.200 foam and has RS 232 and RS 485 E-link options. An oil-filled deepwater version rated up to 3000 m and skid mounting are available as options.

Technical Specification

Functions

5

Weight in air/water

10 kg / 2.75 kg (total mass)

Mobile mass

2.2 kg

Materials

6082 T6 aluminium alloy, hard anodised; Airex C70.200 foam

Power supply

24–30 Vdc / 240 Vac

Motors

Brushless 24–30 Vdc electric motors

Operating depth

Up to 300 m (zero oil system with air filled voids)

Operating depth, deepwater oil version

Up to 3000 m (optional)

E-link options

RS 232, RS 485

Slew

120° LH or RH mounting

Elevation

90°

Elbow bend

130°

Reach

640 mm (from the slew pivot)

Lift

10 kg at 0.5 Amps at full extension

Jaw rotate

Continuous

Jaw opening

125 mm at the tips

Jaw rotate torque

>10 Nm at 2 Amps

Jaw rotate speed

~49 rpm at 24 Vdc

Jaw closing force

>50 kg at 2 Amps

Skid mounting

Available (optional)
