Blue Logic ISO A
API 17H Type 2 Hot Stab System
Description

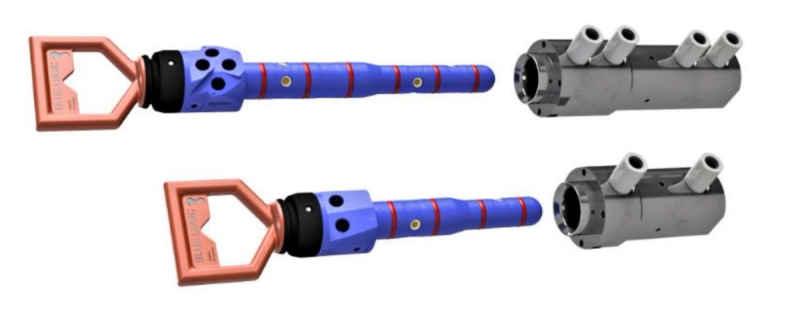

The Blue Logic ISO A Hot Stab System is a hot stab and receptacle system designed according to API 17H Type 2, with a tapered Ø35/Ø43 mm stab. The Blue Logic ISO A Hot Stab System is ROV or diver operated, is depth rated to 3000 m and comes in dual port and quad port configurations.
The Blue Logic ISO A Hot Stab System has a working pressure of 10 000 psi / 690 bar (10K) and a max flow of up to 30 l/min. The hydraulic interface is 3/8" BSP on the stab and 1/2" BSP on the receptacle. The hydraulic bore (stab/receptacle) is Ø6 mm / 1/2" for the dual port version and Ø5 mm / 1/2" for the quad port version.
Each port of the Blue Logic ISO A hot stab has an integrated check valve to minimise fluid spill and water ingress during connection and disconnection, and check valves are also available for receptacles (optional). An integrated flex-joint is fitted between stab and D-handle. The equipment is designed, tested and qualified according to API 6A (ISO 10423), and all hot stab equipment is pressure tested to 1.5 × design pressure. Operating temperature is −10 to +50 °C.
Receptacles, pressure stabs, dummy stabs and parking receptacles are available for the Blue Logic ISO A Hot Stab System, and the quad port version is no longer part of API 17H. The hot stab is made of S165M, the receptacle of Super Duplex and the seals of HPU, with other seal materials available. A dual port stab weighs 5.1 kg in air and 4.4 kg in water.
