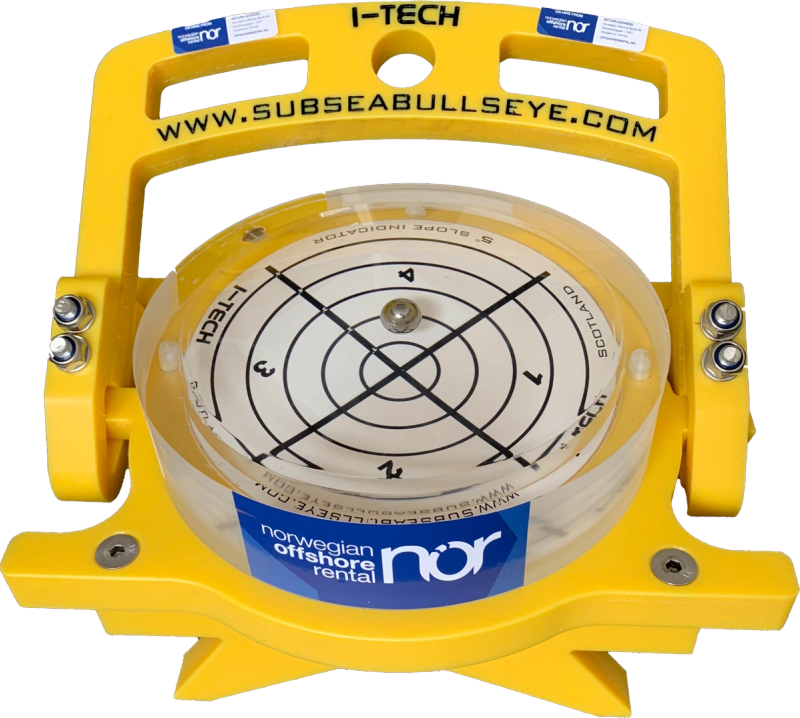

Bullseye 0-5 Degree Range 250mm

Description

The Bullseye 0–5 degree range (OD 250 mm, ROV portable) is a subsea bullseye for monitoring the inclination of subsea structures. When calibrated to a subsea structure, the Bullseye gives a reading of inclination with an accuracy of ±0.25°. Readings can be taken by ROV, camera systems or divers.

The Bullseye has an all-polymer construction in non-corrosive materials. The main body has an outer diameter of 250 mm and an overall height of 191 mm without handle. The complete Bullseye weighs 6.8 kg in air and has a maximum operation depth of 6000 m.

Technical Specification

Inclination range

0–5°

Accuracy

±0.25° (when calibrated to a subsea structure)

Reading

By ROV, camera systems or divers

Construction

All polymer, non-corrosive materials

Outer diameter

250 mm

Overall height (without handle)

191 mm

Weight in air (complete)

6.8 kg

Max operation depth

6000 m

Deployment

ROV portable
