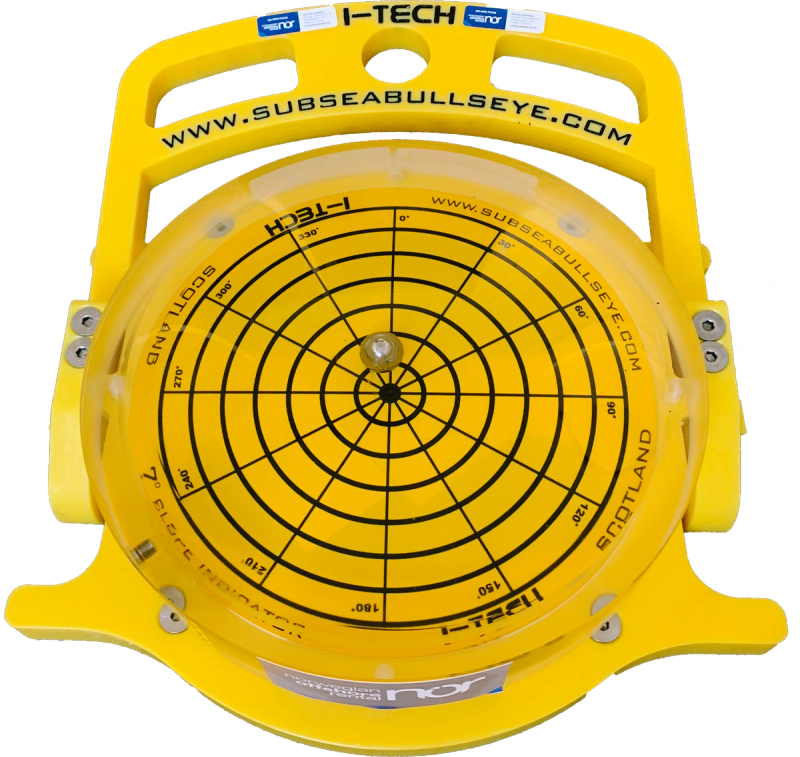

Bullseye 0-7 Degree Range 350mm
ROV Portable Inclination Bullseye
Description
The Bullseye 0–7 degree range, OD 350 mm, is an ROV portable bullseye for monitoring inclination. When calibrated to a subsea structure, the 350 Bullseye gives a reading of inclination over a 0–7 degree range to an accuracy of ±0.25 degree.
Readings from the 350 Bullseye can be taken by ROV, camera systems or divers. The bullseye is of all polymer construction with non-corrosive materials. It has an outer diameter of 350 mm, an overall height of 200 mm without handle, a complete weight in air of 13.1 kg and a max operation depth of 6000 m.
