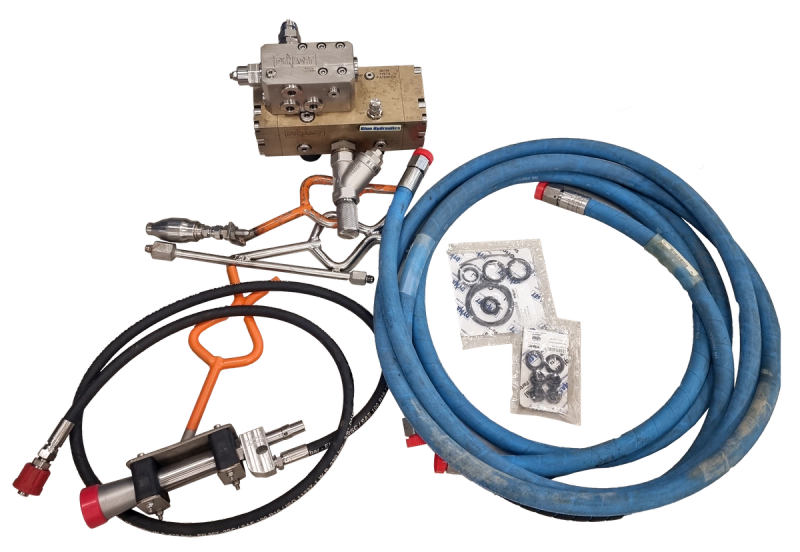

Cavitation Lance for ROV

Description

The Cavitation Lance for ROV is a double walled stainless steel cavitation lance for use on ROVs. It is made from salt water resistant materials, has a retrolance straight behind the cavitation lance and is intended for use with HPW 220 / 50.

The Cavitation Lance for ROV is rated to a maximum pressure of 500 bar, with a minimum flow of 28 lpm and a maximum flow of 80 lpm. Connections are 3/8" BSP(M) and 1/2" BSP(M). The lance is 280 mm long and weighs 1.8 kg.

Technical Specification

Length

280 mm

Weight

1.8 kg

Max. pressure

500 bar

Max. flow

80 lpm

Min. flow

28 lpm

Connection

3/8" BSP(M), 1/2" BSP(M)

Lance

Double walled stainless steel

Materials

Salt water resistant

Retrolance

Straight behind cavitation lance

For use with

HPW 220 / 50
