Coda Octopus DA2000 Series

Name: Coda Octopus DA2000 Series
Brand: Coda Octopus
SKU: 1926

Geophysical Data Acquisition System

Description

The Coda Octopus Coda GeoSurvey DA2000 is a geophysical data acquisition system in the DAseries for sidescan sonars (SSS) and sub-bottom profilers (SBP), including digital sonars and analogue systems. The DA2000 is a 1U, 19″ rack-mountable industrial PC delivered with the software pre-installed, and it acquires SSS and SBP data simultaneously.

The Coda GeoSurvey DA2000 has 4 analogue input channels with adjustable input range, including direct hydrophone connection, and up to 2 independent/asynchronous TTL trigger inputs with a standard TTL trigger output. It has 2 serial ports for NMEA navigation, fix and annotation data, 2 Ethernet interfaces (1 × 1 Gb, 1 × 10/100 Mb) for data transfer and digital sonars, 4 USB ports, IEEE 1394 and up to two parallel printer interfaces. Real-time heave input and magnetometer input are listed as features.

The DA2000 records to internal or external hard disk, DVD RAM or remote network devices in CODA, SEGY, XTF or QMIPS format, with automatic continuous recording switch-over. Display modes include scrolling waterfall, A-scan/oscilloscope, sub-bottom zoom windows and display on single or dual monitors. Processing includes real-time gain correction, speed correction, stacking, auto seabed tracking and real-time heave correction, and the unit runs on 100–240 V AC.

Technical Specification

System: Coda GeoSurvey DAseries DA2000
Triggers: 2
Channels: 4
Serial ports: 2
Interfaces: SSS and SBP simultaneously
Additional information: 19″ rack-mountable, dual printing, supports dual monitors, multiple sensor positions
Analogue inputs: Adjustable input range; compatible with analogue sidescan sonar outputs and sub-bottom profilers, including direct hydrophone connection
Trigger inputs: Standard TTL input, up to 2 independent/asynchronous triggers
Trigger outputs: Standard TTL output
Navigation and fix data: Serial ports for NMEA compatible navigation data and other proprietary navigation, fix and annotation strings
Printer interfaces: Up to two independent parallel printer interfaces, compatible with printers from Octopus, EPC, Alden/GeoAcoustics Ultra and Isys
Network: 2 Ethernet interfaces (1 × 1 Gb, 1 × 10/100 Mb) for data transfer and interface to digital sonars
Other interfaces: USB × 4; IEEE 1394 (peripheral interface)
Additional inputs: Real-time heave input, magnetometer input
Recording devices: Internal hard disk, external hard disk (via USB 2.0 or IEEE 1394), DVD RAM, remote network devices
Recording functions: Automatic continuous recording switch-over; raw or processed data recording and copying; post-acquisition back-up to DVD-R and CD-R
Recording formats: CODA, SEGY, XTF, QMIPS
Sonar display: Vertical and horizontal scrolling waterfall, A-scan/oscilloscope, dual or single channel
Sub-bottom display: User-defined seismic zoom windows; left/right, up/down scroll directions
Dual format display: Multiple channels and data types in multiple windows, on single or dual monitors
Navigation display: Real-time nav updates, track plot, corrected nav, navigation smoothing, speed correction
Sidescan processing: Real-time gain correction, colour palette display enhancement, cross-track smoothing, speed correction; Pipeline Inspection, Mosaicing and GeoKit interpretation modules
Sub-bottom processing: Real-time signal processing and gain correction, user-defined depth and time based filters and gain controls, stacking, auto seabed tracking, speed correction, real-time heave correction
Operating system: Windows or Linux (optional)

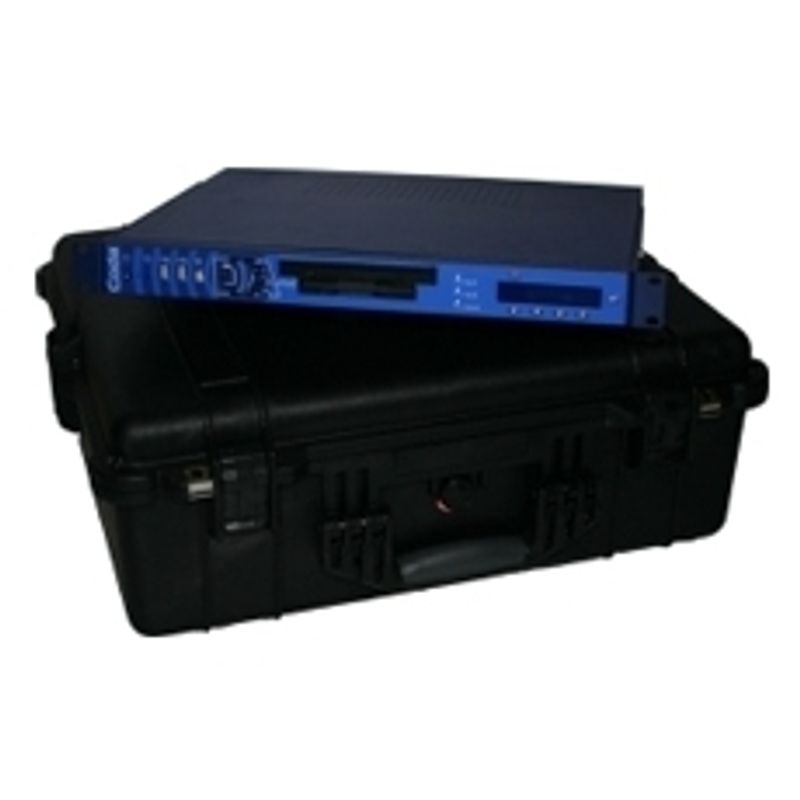

Description: 19″ rack-mountable system, 1U slim-line industrial PC
Dimensions: 17″ wide × 1.75″ high × 14″ deep (19″ wide × 1.75″ × 14″ deep with rack mounting)
Shipping case: Custom Peli-case
Power: 100–240 V AC
Processor: Pentium M 1.8 GHz or better
Memory: 512 Mb as standard
Hard disk: 300 gigabyte
Display: Single or dual screens (optional)
