Crosby G-209R Rov Shackle

Description

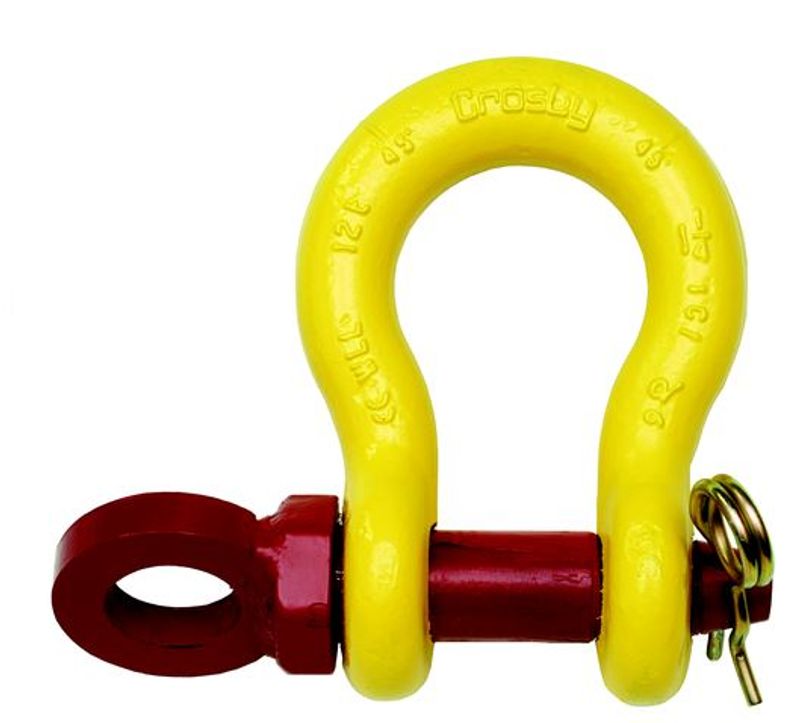

The Crosby G-209R ROV Shackle is a forged steel shackle delivered with working load limits from 6.5 t to 55 t. The shackle bow of the Crosby G-209R is galvanised and then painted fluorescent yellow.

The Crosby G-209R is listed in nine sizes, from stock no. 1020872 (WLL 6-1/2 t, 1.69 kg) to stock no. 1021158 (WLL 55 t, 42.8 kg). Minimum ultimate load is 5 times the working load limit. Dimensions A, B, C, H, L, O, P, S and T are given in mm for each size, with a tolerance of ±6.35 mm on dimension A.

Technical Specification

Material

Forged steel

Finish

Bow galvanised, then painted fluorescent yellow

Working load limit range

6.5 t to 55 t

Minimum ultimate load

5 times the working load limit

Dimension A tolerance

±6.35 mm

WLL 6-1/2 t (stock no. 1020872)

1.69 kg; A 36.6, B 25.4, C 84.0, H 148, L 102, O 50, P 58, S 17, T 10 mm

WLL 8-1/2 t (stock no. 1020902)

2.59 kg; A 42.9, B 28.7, C 95.5, H 167, L 119, O 50, P 61, S 18, T 10 mm

WLL 9-1/2 t (stock no. 1020932)

3.77 kg; A 46.0, B 31.8, C 108, H 190, L 131, O 70, P 83, S 18, T 12 mm

WLL 12 t (stock no. 1020952)

5.02 kg; A 51.5, B 35.1, C 119, H 210, L 146, O 70, P 84, S 23, T 12 mm

WLL 13-1/2 t (stock no. 1020972)

6.65 kg; A 57.0, B 38.1, C 133, H 233, L 162, O 75, P 91, S 23, T 15 mm

WLL 17 t (stock no. 1020992)

8.58 kg; A 60.5, B 41.4, C 146, H 254, L 175, O 75, P 93, S 24, T 15 mm

WLL 25 t (stock no. 1021102)

14.1 kg; A 73.0, B 51.0, C 178, H 313, L 225, O 90, P 114, S 29, T 17.5 mm

WLL 35 t (stock no. 1021125)

21.4 kg; A 82.5, B 57.0, C 197, H 348, L 253, O 106, P 132, S 30, T 20 mm

WLL 55 t (stock no. 1021158)

42.8 kg; A 105, B 70.0, C 267, H 453, L 327, O 120, P 145, S 45, T 25 mm
