Dalgripen DGE 35

Description

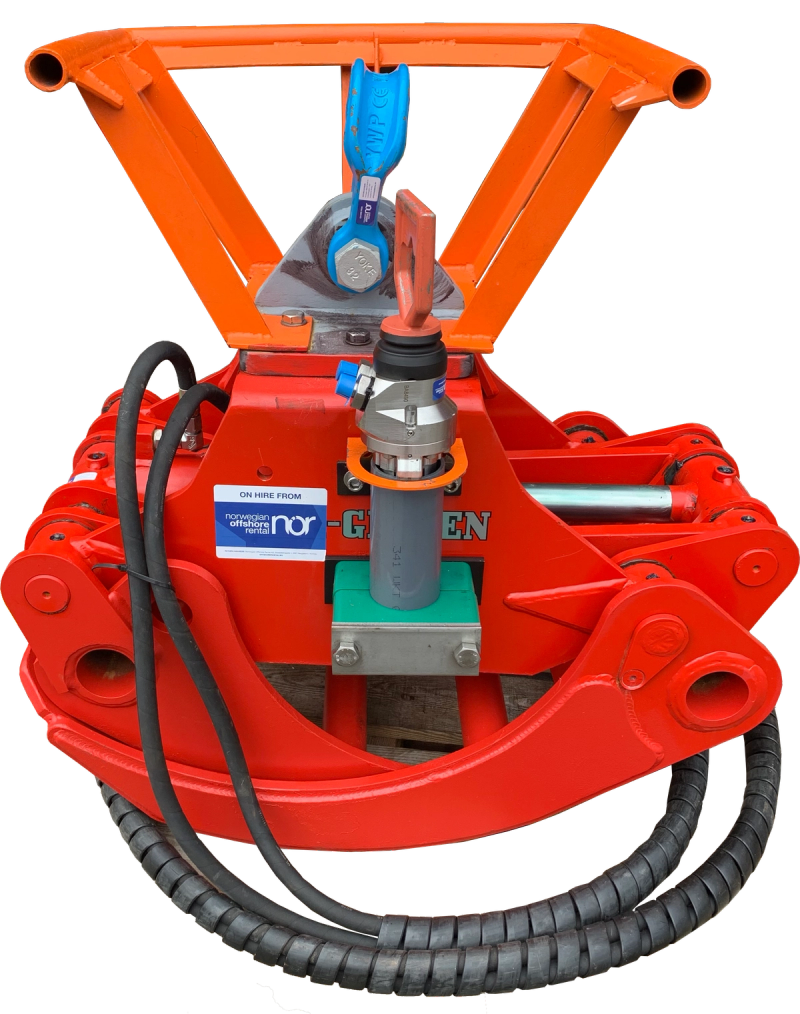

The Sit Right Dalgripen DGE 35 is a hydraulic subsea grab for boulder and debris removal. The Dalgripen DGE 35 is connected to the vessel crane and operated by ROV through hot stab or valve stab. It is fitted with a Ø60 2-port valve stab and has a 12te padeye on top.

The Dalgripen DGE 35 has a max working pressure of 250 bar, a cylinder force of 146.2 kN and a gripping force at the arm tips of 25.4 kN. Max load is 5000 kg, and the hydraulic volume of the cylinders is 1.5 l.

The Dalgripen DGE 35 weighs 275 kg in air, or 290 kg with handle and padeye. When closed it is 930 mm long and 610 mm high, and the max width is 495 mm.

Technical Specification

Manufacturer

Sit Right

Model

Dalgripen DGE35

Application

Boulder and debris removal subsea

Operation

Connected to vessel crane, operated by ROV through hot stab or valve stab

Valve stab

Ø60 2-port valve stab (fitted)

Padeye

12te, on top

Max working pressure

250 bar

Gripping force, arm tips

25.4 kN

Cylinder force

146.2 kN

Max load

5000 kg

Weight in air

275 kg

Weight with handle and padeye

290 kg

Length (closed)

930 mm

Height (closed)

610 mm

Max width

495 mm

Hydraulic volume, cylinders

1.5 l
