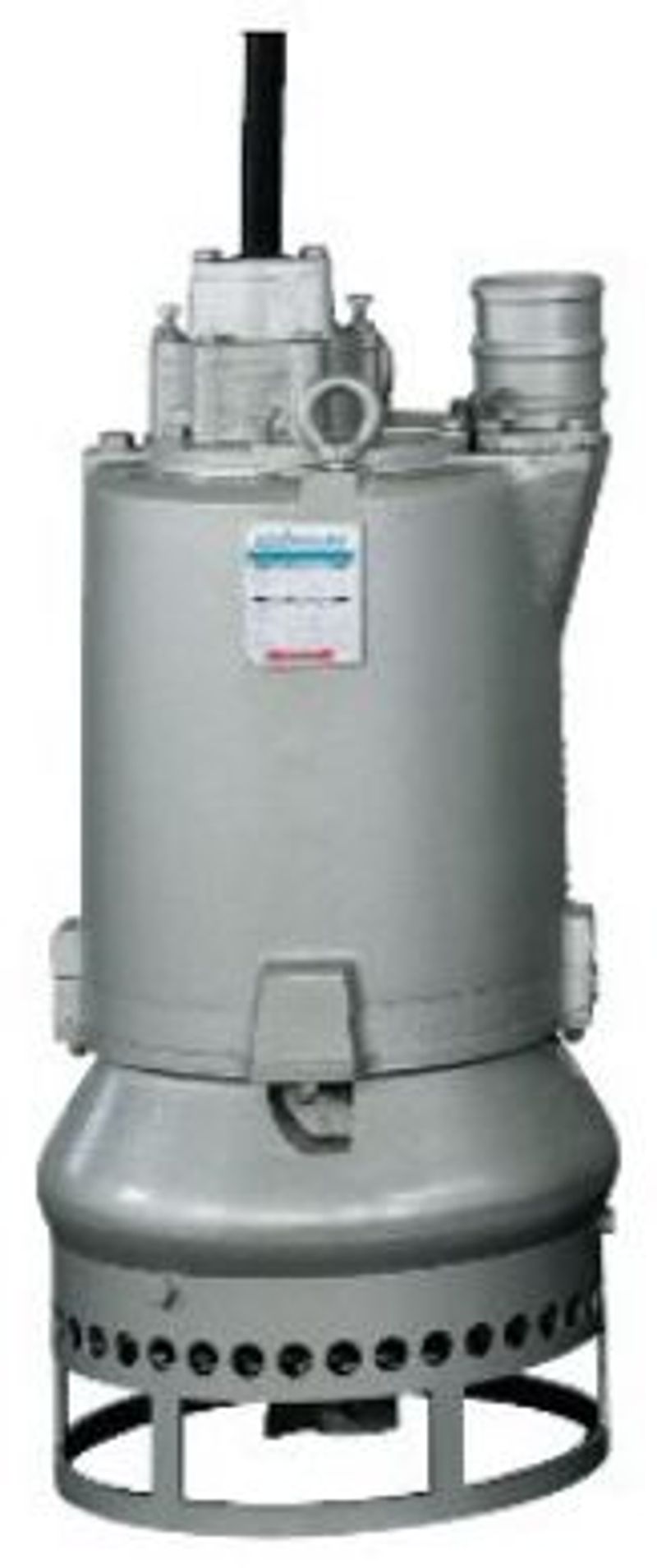

DragFlow EL12.5S
Electric Submersible Dredge Pump
Description
The DragFlow EL12.5S is an electric submersible dredge pump fitted with agitators to stir up sand, mud and similar material. The DragFlow EL12.5S has a low rotation speed and can handle up to 70 % material density.
The DragFlow EL12.5S has a capacity of 60 m³/h and a head of 18 m. It is driven by an 11 kW (15 HP) motor at 1450 rpm, 3-phase, 4-pole, 50 Hz, with Class F motor insulation, at 230–400 V / 38–23 A. The pump has a 4-vane open impeller of ø 308 mm, a Ø 100 mm bore and a Ø 25 mm cross section, and weighs 280 kg.
The DragFlow EL12.5S is controlled with an ABB frequency converter and is delivered with 100 metres of electrical cable and 30 metres of 4″ discharge hose. A pressure compensator allows the pump to be used down to 50 metres underwater. The motor zone has a double mechanical seal (silicon carbide – silicon carbide in oil bath), and the impeller zone has 2 compact polyurethane seals plus 2 double rubber lip seals with stainless steel spring.
