Drilling Tool

Description

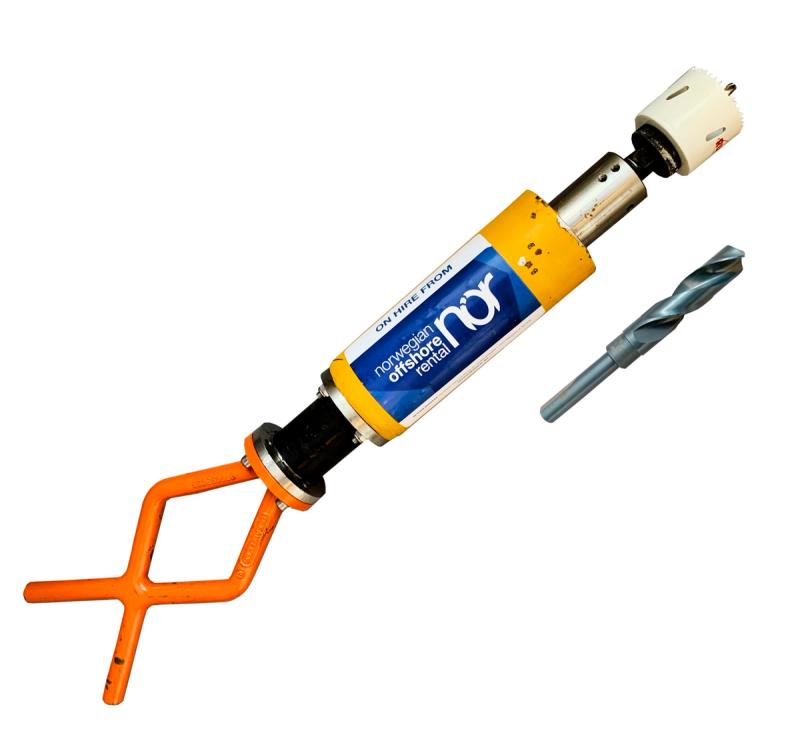

The Drilling Tool is a hydraulic ROV drilling tool that consists of a drill bit rotated by a hydraulic motor. The Drilling Tool is designed to be as small as possible to give the ROV operator a view of the operation, and it is fitted with a flexible fishtail handle.

The Drilling Tool has a maximum inlet pressure of 140 bar, a maximum flow of 20 ltr/min and a maximum speed of 630 rpm, with reversible, bi-directional rotation. It runs on Tellus 22 or similar hydraulic fluid and can be fitted with a wide range of drill bits.

The Drilling Tool measures 450 mm L × 250 mm W × 110 mm H and weighs 7.4 kg.

Technical Specification

Drive

Hydraulic motor rotating a drill bit

Dimensions

450 mm L × 250 mm W × 110 mm H

Weight

7.4 kg

Max inlet pressure

140 bar

Max flow

20 ltr/min

Max speed

630 rpm

Rotation

Reversible / bi-directional

Hydraulic fluid

Tellus 22 or similar

Drill bits

Can be fitted with a wide range of drill bits

Handle

Flexible fishtail handle
