Eagle IP 180 & 360 Cameras
4K IP Cameras with 180° or 360° View
Description

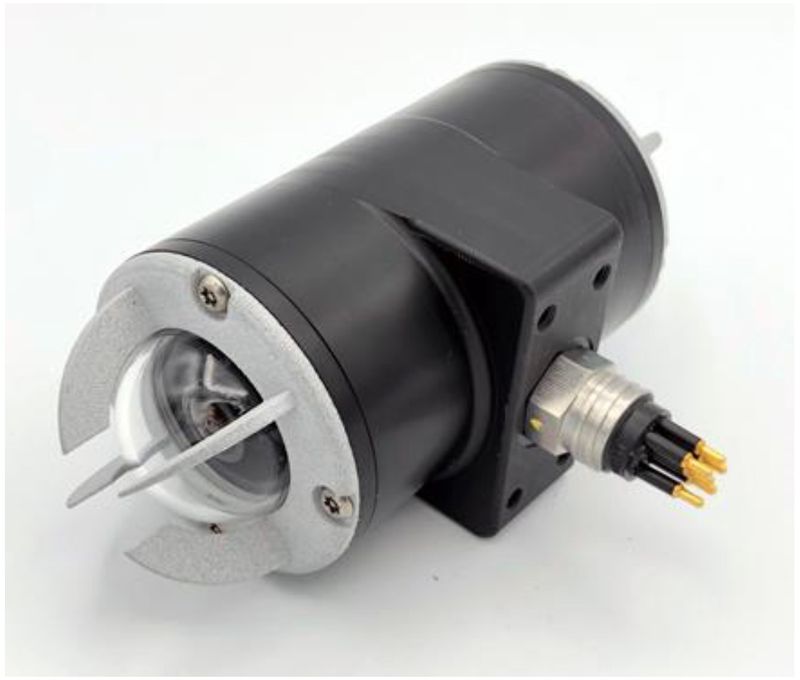

The OTAQ Eagle IP™ 180 and Eagle IP 360 are 4K underwater colour cameras with orbital field of view that communicate over 10/100 BaseT Ethernet. The Eagle IP 180 gives a 180° field of view, and the Eagle IP 360 generates a full 360° 'orbital' image.
With the topside software GUI on a laptop, the operator can pan, tilt, rotate and zoom within the live video feed, which removes the need for a mechanical pan and tilt. The software corrects image distortion and, for the Eagle IP 360, generates 'back to back' imagery in a single viewing window. The cameras allow single-pass image capture and post-process review of a work site.
Resolution is 8 megapixel / 4K / 3840 × 2160P at 15 FPS (variable), with 2 × 8 megapixel on the Eagle IP 360. Compression is H.264 and H.265, focus is fixed with digital zoom, and minimum light level is 0.01 Lux. Both cameras are made of acetal, weigh 250 g in air and 0 g in water, and have a depth rating of 300 m in the specification table. Power is 18–20 VDC at 200 mA (Eagle IP 180) or 500 mA (Eagle IP 360), and the connector is MCBH-6-M, with options available.
The Eagle IP cameras can be deployed on small inspection class ROVs, AUVs and landers. Listed applications are situational awareness, ROVs of all sizes, AUVs, fixed installations, landers and nuclear, in the offshore energy, oceanographic research and nuclear energy markets.
