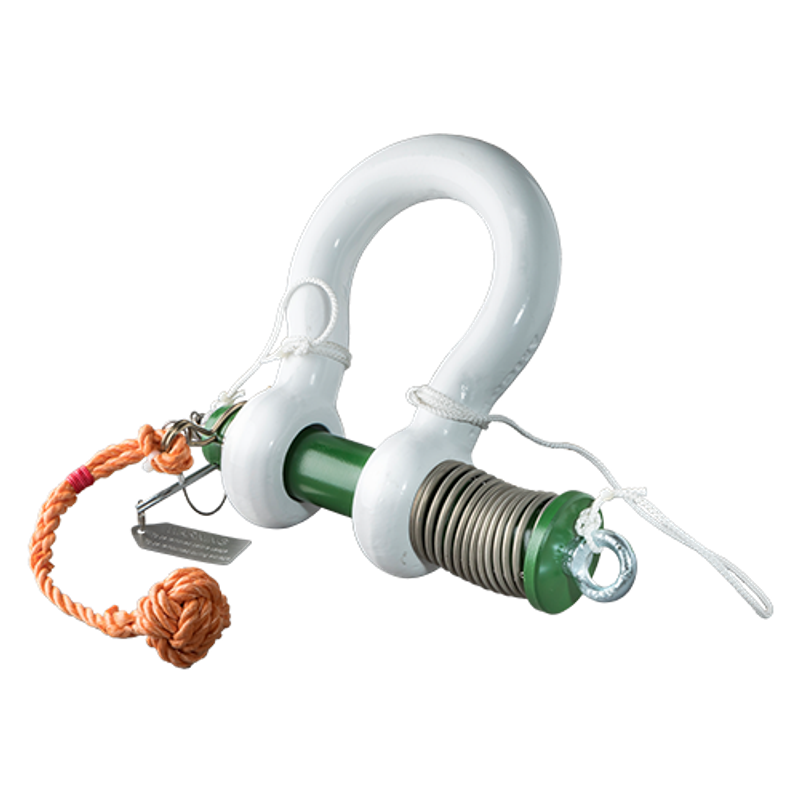

Green Pin® ROV Shackle

Description

The Green Pin® ROV Shackle is a spring-loaded shackle with a quick release system, developed for subsea applications. The quick release can be operated by a hydraulically operated ROV arm, which reduces the time needed to disassemble shackles underwater.

Bow and pin are made of grade 8 alloy steel, quenched and tempered, and the minimum breaking load (MBL) is 5 × WLL. The body is painted white and the pin green. The temperature range is −40 °C to +200 °C.

The shackle is for in-line use only and is assembled with wire rope slings and a monkey's fist. The series covers working load limits from 12 t to 150 t, with weights from 5.24 kg to 168 kg. Larger sizes require a special compression tool, which is sold separately.

Technical Specification

Type

Spring-loaded ROV shackle with quick release

Working load limit (WLL)

12, 13.5, 17, 25, 35, 42.5, 55, 85, 120 and 150 t

Safety factor

MBL equals 5 × WLL

Material

Bow and pin alloy steel, grade 8, quenched and tempered

Finish

Body painted white, pin painted green

Temperature range

−40 °C to +200 °C

Use

In-line use only; assembled with wire rope slings and monkey's fist

Compression tool

Required for larger sizes, sold separately

Certificates

Works certificate, 3.1 material certificate, manufacturer test certificate and/or EC Declaration of Conformity

WLL 12 t

Bow Ø 32 mm, pin Ø 35 mm, inside width 51 mm, inside length 115 mm, 5.24 kg

WLL 13.5 t

Bow Ø 35 mm, pin Ø 38 mm, inside width 57 mm, inside length 133 mm, 7 kg

WLL 17 t

Bow Ø 38 mm, pin Ø 42 mm, inside width 60 mm, inside length 146 mm, 9.25 kg

WLL 25 t

Bow Ø 45 mm, pin Ø 50 mm, inside width 74 mm, inside length 178 mm, 15.5 kg

WLL 35 t

Bow Ø 50 mm, pin Ø 57 mm, inside width 83 mm, inside length 197 mm, 20.4 kg

WLL 42.5 t

Bow Ø 57 mm, pin Ø 65 mm, inside width 95 mm, inside length 222 mm, 32 kg

WLL 55 t

Bow Ø 65 mm, pin Ø 70 mm, inside width 105 mm, inside length 260 mm, 42 kg

WLL 85 t

Bow Ø 75 mm, pin Ø 83 mm, inside width 127 mm, inside length 329 mm, 67 kg

WLL 120 t

Bow Ø 95 mm, pin Ø 95 mm, inside width 147 mm, inside length 399 mm, 123 kg

WLL 150 t

Bow Ø 105 mm, pin Ø 108 mm, inside width 169 mm, inside length 410 mm, 168 kg
