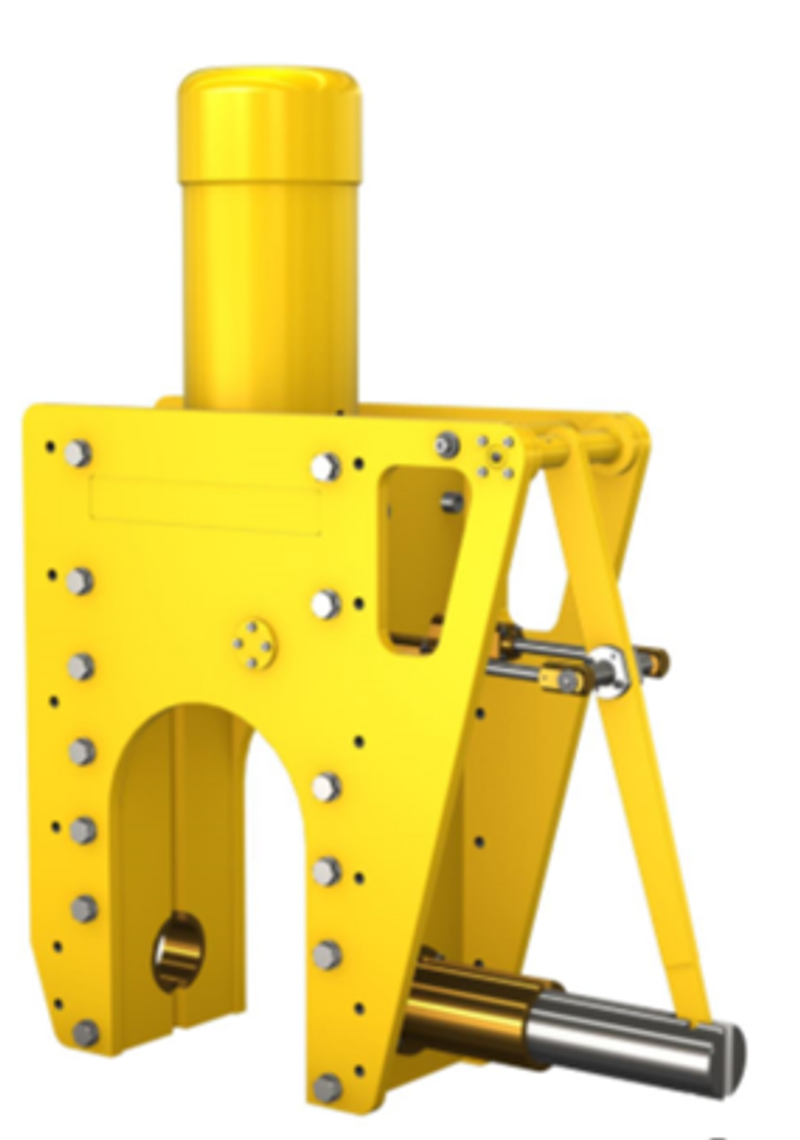

Webtool Cable Cutter HCV270

Description

The Webtool Cable Cutter HCV270 is a hydraulic cutter for large diameter cables, umbilicals and risers. It is designed to cut umbilicals up to Ø270 mm diameter and has a hydraulically operated anvil for ROV deployment.

The main cylinder of the Webtool HCV270 takes a max input pressure of 690 bar, and the anvil a max input pressure of 210 bar. An intensifier is available (optional). The main body of the HCV270 weighs 352 kg.

Technical Specification

Cutting diameter

270 mm

Application

Large diameter cables, umbilicals and risers

Input pressure main cylinder

Max 690 bar

Input pressure anvil

Max 210 bar

Anvil

Hydraulically operated

Main body weight

352 kg

Intensifier

Available (optional)
