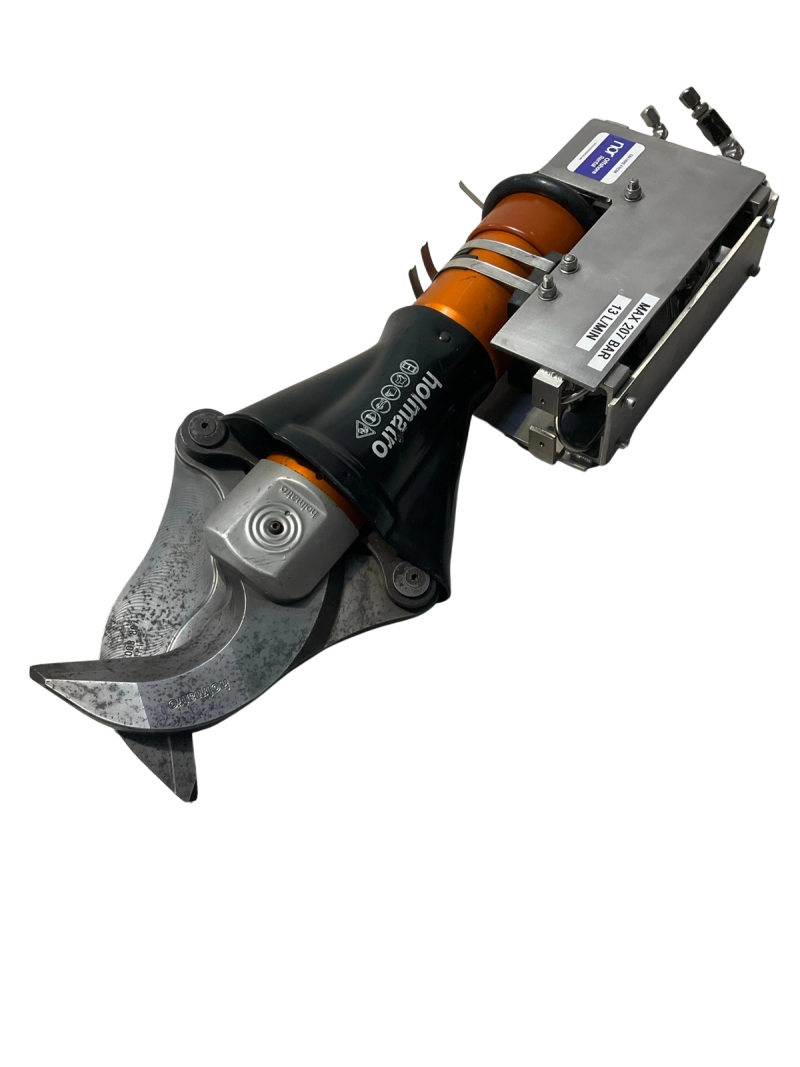

ICU 40 A 30 | ROV Cutter
ROV Cutter, 644 kN Cutting Force
Description
The Holmatro ICU 40 A 30 is an ROV cutter (article number 170.012.047) fitted with general standard blades, blade type 30 standard. The datasheet lists cutting of rod material, tube profiles, frames, construction materials, wood, fuel pipes, heating pipes and small cables among its applications.
The Holmatro ICU 40 A 30 has a max. cutting force of 644 kN (65.7 t) and a max. cutting opening of 181 mm at a max. working pressure of 500 bar (50 MPa). The required effective oil content is 163 cc, the weight ready for use is 19.4 kg, and the temperature range is −20 to +80 °C.
The Holmatro ICU 40 A 30 has a flat lever hinge pin construction and a permanently locked central bolt, so the cutter stays on torque. Moving parts are guarded, and various blade types are available. The technical drawing dimensions are A 775 mm, B 270 mm and C 218 mm. A lubricants set (170.013.021) and a balancer for 15–20 kg (130.182.039) are listed as accessories.
