Imenco ROV Shackle

Description

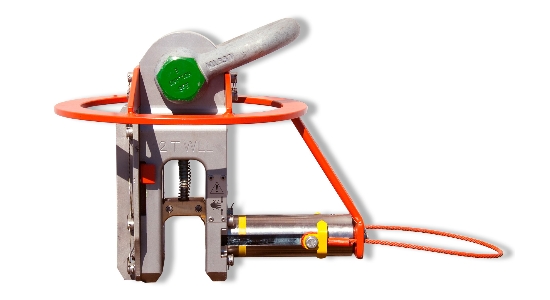

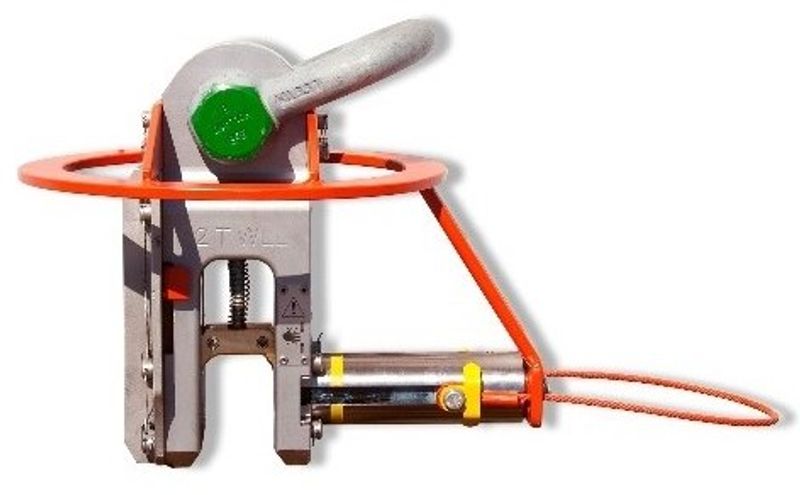

The Imenco ROV Shackle is a semi-automatic, ROV-operated shackle with a positive double locking system. Lock and unlock positions are marked L and U on the front cover plate, and the locking plate can be fitted with a monkey fist or similar for the ROV to pull on.

The shackle body and most other parts are made of high tensile stainless steel S165M, and the pin is forged high tensile 34CrNi steel. Dimensions match a standard D-type shackle of the same capacity, including pin size and opening width. All shackles are CE marked and supplied with an aluminium storage case and a full set of documentation.

The range covers working load limits from 6.5 Te to 150 Te, with dry weights from 9 kg to 404 kg.

Technical Specification

Type

Semi-automatic ROV-operated shackle, positive double locking

Materials

Body and most parts high tensile stainless steel S165M; pin forged high tensile 34CrNi

Marking

Lock/unlock positions marked L and U on front cover plate

ROV interface

Locking plate for monkey fist or similar

Dimensions

Equivalent to standard D-type shackle of the same capacity

Certification

CE marked

Supplied with

Aluminium storage case and full set of documentation

WLL 6.5 Te

Pin Ø 25 mm, inside width 36 mm, overall length 321 mm, 9 kg

WLL 12 Te

Pin Ø 35.1 mm, inside width 51 mm, overall length 375 mm, 16 kg

WLL 17 Te

Pin Ø 42 mm, inside width 60.5 mm, overall length 444 mm, 27 kg

WLL 25 Te

Pin Ø 51 mm, inside width 73 mm, overall length 502 mm, 44 kg

WLL 35 Te

Pin Ø 57 mm, inside width 83 mm, overall length 556 mm, 52 kg

WLL 55 Te

Pin Ø 70 mm, inside width 105 mm, overall length 644 mm, 81 kg

WLL 85 Te

Pin Ø 83 mm, inside width 127 mm, overall length 794 mm, 145 kg

WLL 120 Te

Pin Ø 95.5 mm, inside width 145 mm, overall length 1,050 mm, 380 kg

WLL 150 Te

Pin Ø 108 mm, inside width 165 mm, overall length 1,080 mm, 404 kg
