Innomar ISE Processing Software

Description

Innomar ISE is post-processing software with a GIS module from Innomar for data acquired by Innomar parametric sub-bottom profilers. Innomar ISE processes all Innomar data formats, including SES3 files, and handles 16/24/32-bit and multi-channel data files.

Processing of 2D seismic sections in Innomar ISE covers full-waveform and envelope data, noise and spike removal filters, gain correction such as time-variable gain (TVG) and automatic gain control (AGC), and (semi-)automatic bottom track. Corrections are available for vessel movements (heave, roll, pitch), tide/swell, static shifts and sound velocity. Seabed and sub-seabed reflectors and targets can be picked and exported, external sensor data can be cleaned, and external probe and core data can be overlaid to assist interpretation.

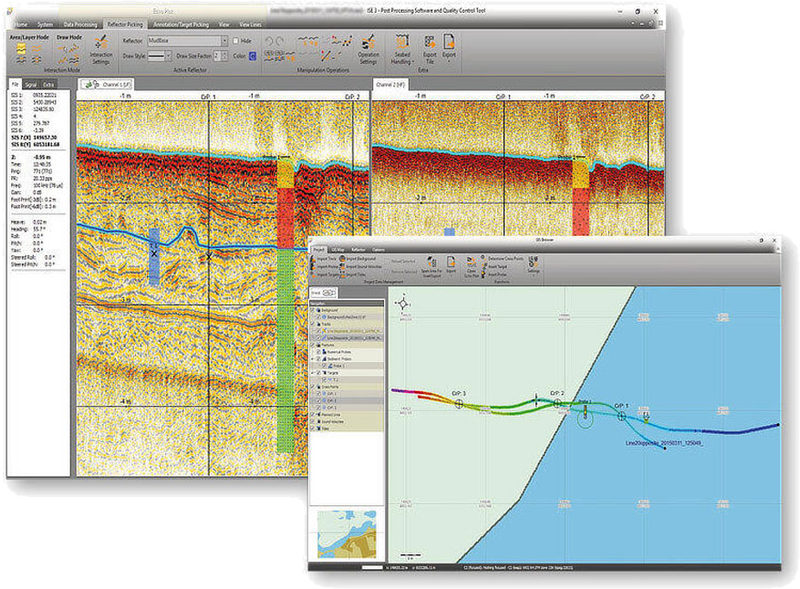

Innomar ISE uses a project-based workflow with a project tree for seismic data sections, tide files, ground truth data, picked layers and targets, and saves and restores the processing status between sessions; single data files can also be viewed or processed. The integrated GIS browser handles data in various coordinate systems and projections, overlays colour-coded bathymetry, sub-bottom layers, targets and ground-truthing onto charts, geo-referenced images and other GIS data, and calculates crossing points between tracks for quality assurance. The GIS map is synchronised with the seismic section view (cursor, track cross-points, picked targets and ground-truth positions).

Raw, processed and interpreted data can be exported from Innomar ISE to industry-standard formats including SEG-Y, XTF, ASCII, DXF and 3D grids. Innomar ISE has a similar look and feel to the Innomar SESWIN online control and data acquisition software.

Technical Specification

Software

Innomar ISE

Function

Post-processing software with GIS module for Innomar specific data files

Compatible systems

Innomar parametric sub-bottom profilers

Input formats

All Innomar data formats, including SES3 files

Data files

16/24/32-bit and multi-channel

Data types

Full-waveform and envelope data

Workflow

Project-based; single data files can also be viewed/processed

Project management

Project tree with seismic data sections, tide files, ground truth data, picked layers and targets; save/restore processing status between sessions

Visualisation

Several visualisation modes and colour-mapping options; free zoom levels; undo/redo

Filters

Signal filtering; various noise and spike removal filters

Gain correction

Time-variable gain (TVG), automatic gain control (AGC)

Bottom tracking

Different options for (semi-)automatic bottom track

Corrections

Vessel movements (heave, roll, pitch), tide/swell, static shifts, sound velocity; tide and vertical corrections

External sensor data

Cleaning of external sensor data

Picking

Picking and export of seabed and sub-seabed reflectors, layers and targets

Interpretation aids

Overlay of external probe and core data

GIS browser

Various coordinate systems and projections; overlay of colour-coded bathymetry, sub-bottom layers, targets and ground-truthing onto charts, geo-referenced images and other GIS data

GIS synchronisation

GIS map synchronised with seismic section view (cursor, track cross-points, picked targets, ground-truth positions)

Quality assurance

Calculation of crossing points between tracks, marked in the 2D sections

Export formats

SEG-Y, XTF, ASCII, DXF, 3D grids

User interface

Similar look and feel as Innomar SESWIN online control and data acquisition software
