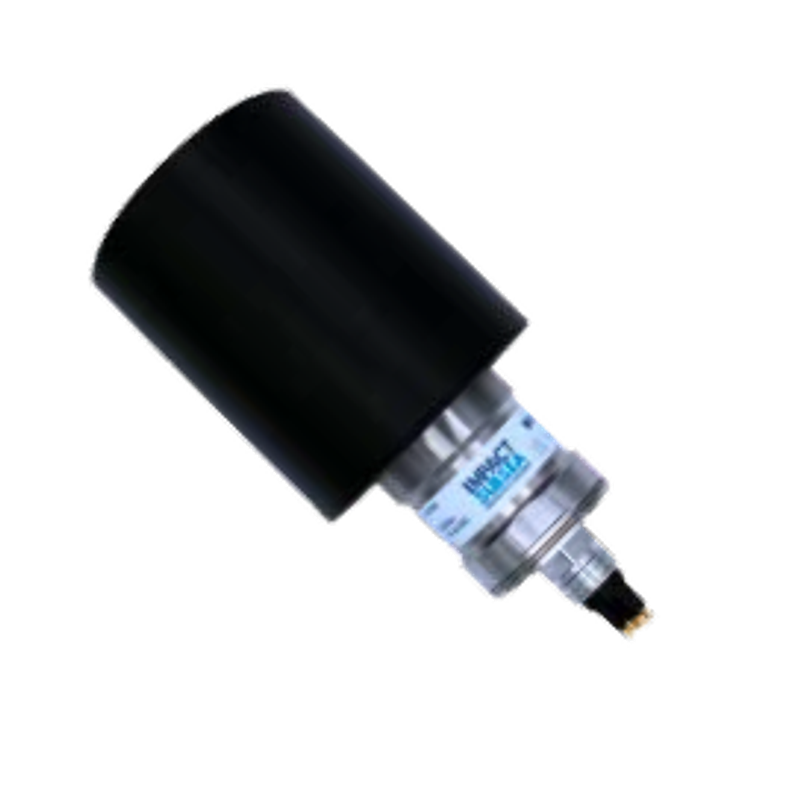

ISP360 Profiling Sonar

Description

The ISP360 Profiling Sonar is a subsea profiling sonar with a broadband composite transducer and the IS³ Impact Subsea Signalling Scheme. The ISP360 provides a full 360° field of view, or a narrower sector defined by the user, and supports both imaging and profiling modes of operation.

The ISP360 Profiling Sonar has a range of 80 m and a frequency bandwidth of 650 kHz to 1.25 MHz, with 0.35 mm (minimum) timing accuracy. It has no slip rings. Integrated pitch and roll with ±0.2° accuracy is available (optional).

The ISP360 is rated to 4,000 m and weighs 0.88 kg in air and 0.31 kg in fresh water. It operates from −10 to +40 °C and can be stored from −20 to +60 °C. The housing diameter is Ø80 mm and the body length is 157.50 mm plus 35.50 mm to the connector end.

The ISP360 Profiling Sonar runs on 12–65 V DC (380 mA @ 24 V DC) and communicates over RS232, RS485 and Ethernet at 9600–115,200 baud.

Technical Specification

Range

80 m

Depth rating

4,000 m

Weight in air

0.88 kg

Weight in fresh water

0.31 kg

Operating temperature

−10 to +40 °C

Storage temperature

−20 to +60 °C

Frequency

650 kHz to 1.25 MHz bandwidth

Transducer

Broadband composite transducer

Signalling scheme

IS³ Impact Subsea Signalling Scheme

Timing accuracy

0.35 mm (minimum)

Scan angle

360° continuous or sector scan

Operating modes

Imaging and profiling

Pitch and roll

Integrated, ±0.2° accuracy (optional)

Slip rings

None

Supply voltage

12–65 V DC

Output power

380 mA @ 24 V DC (as stated)

Digital interface

RS232, RS485 & Ethernet

Protocol

9600–115,200 baud

Housing diameter

Ø80 mm

Length (drawing)

157.50 mm + 35.50 mm to connector end

Connector end dimensions (drawing)

Ø43 mm, Ø47 mm, 45 mm
