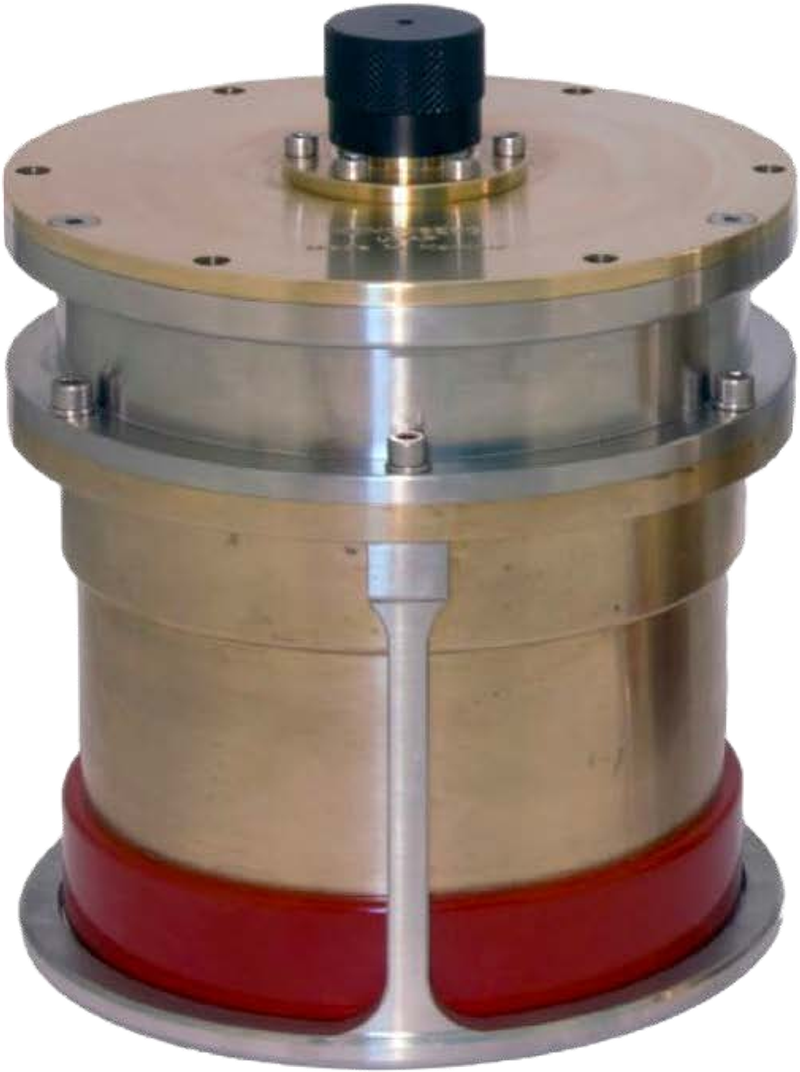

Kongsberg uPAP 200-NEL Portable USBL

Description

The µPAP 200 is a portable acoustic positioning system for tracking ROVs, tow fish, divers and other subsea objects from a surface vessel at several thousand metres range. The µPAP operates in SSBL mode, where it measures the distance and direction to subsea transponders and computes a 3D position in local or geographical coordinates.

All µPAP models operate at 20–30 kHz (MF), with a source level of 190 dB (re 1 µPa), a 22° receiver beam, ±90° operational coverage and ±80° main coverage. The µPAP range capability is 4000+ m, depending on line of sight, the transponder's transmit power setting, the vessel's acoustic system, ambient noise and ray bending. Maximum range and angular accuracy apply within the ±80° main coverage sector; outside it, range and elevation angular accuracy are reduced, and depth input for aiding is recommended. The µPAP 200 (part no. 337711) has a motion sensor accuracy of R/P 0.2° (range ±180°) and a system position accuracy of 0.32°/0.56 % with range ±0.02 m, in X and Y direction.

The µPAP supports 560 Cymbal wideband channels and 56 FSK channels, is cNODE compatible and works in SSBL, LBL and acoustic modem modes, with Fast Track mode, responder mode and electronic beam control. The µPAP has full LBL calibration and positioning capability for position box-in, calibration and positioning, and cNODE transponder models are available for depths down to 4000 m. APOS is the operator station for the µPAP. The built-in motion sensor compensates for vessel roll and pitch, while alignment to the vessel's gyro compass must be calibrated; the system can be interfaced to the vessel heading sensor and GNSS system.

The µPAP 200 transducer has a bronze/stainless steel housing, weighs 11.7 kg and is used at a transducer deployment depth of less than 100 m, with a transducer cable length of 25, 50 or 70 m. The µPAP operating temperature is 0 to +35 °C, the storage temperature is −20 to +70 °C and the storage humidity is 95 % relative, non-condensing.

Technical Specification

Model / part no.

µPAP 200 / 337711

Positioning modes

SSBL, LBL, acoustic modem

Other modes

Fast Track mode, responder mode

Frequency

20–30 kHz (MF)

Source level

190 dB (re 1 µPa)

Receiver beam

22°

Operational coverage

±90°

Main coverage

±80°; maximum range and angular accuracy apply within this sector. Outside it, range and elevation angular accuracy are reduced, and depth input for aiding is recommended.

Range capability

4000+ m (depending on line of sight, transponder transmit power setting, vessel's acoustic system, ambient noise and ray bending)

Navigation channels

560 Cymbal, 56 FSK, cNODE compatible

Beam control

Electronic beam control

Motion sensor accuracy (µPAP 200)

R/P 0.2°, range ±180°

System position accuracy (µPAP 200)

0.32°/0.56 %, range ±0.02 m (X and Y direction)

Motion sensor

Integrated, roll and pitch compensation

Interfaces

Vessel heading sensor, GNSS system

Operator station

APOS

Transponders

cNODE transponder models for depths down to 4000 m

Transducer cable length

25, 50 or 70 m

Transducer deployment depth

< 100 m

Operating temperature

0 to +35 °C

Storage temperature

−20 to +70 °C

Storage humidity

95 % relative, non-condensing

Vibration

5–100 Hz, 5–13.2 Hz ±1.5 mm, 13.2–100 Hz 1 g

Housing

Bronze/stainless steel

Weight (µPAP 200)

11.7 kg

Dimensions (PAP 200, outline drawing)

Ø199, height 247 including M8 studs, 203 excluding studs (unit not stated)

Lid

Ø184 bolt circle, Ø10 guide pin, Gisma receptacle 10.00.4.19.2.10

Other models

201-MGC-r3, 201-MGC-r2, 201-H, 202-m30

Document no.

393495 RevL
