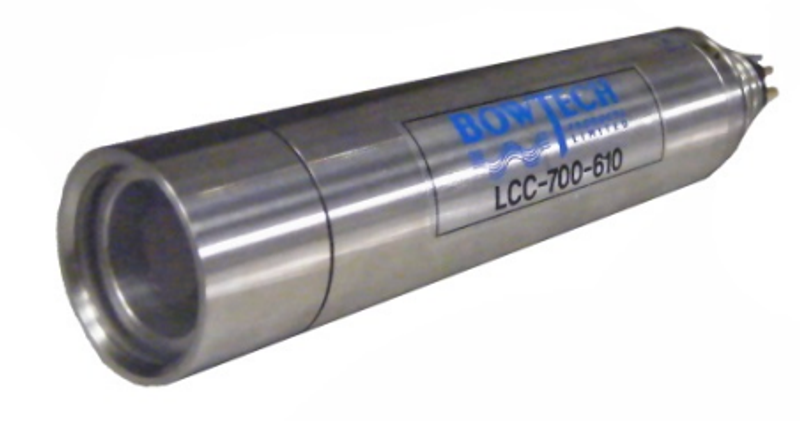

LCC-700-610 Miniature Monochrome Camera
Miniature Monochrome Underwater CCD Camera
Description
The Bowtech Products LCC-700-610 is a miniature monochrome underwater CCD camera fitted with a 610 nm filter to enable detection of fluorescing tracer dye. It is designed for use with the Bowtech LED-540 lamp and fluorescent tracer dye as part of the Bowtech Leak Detection System.
The LCC-700-610 has a 1/3" CCD sensor with 752 (H) × 582 (V) elements, giving a horizontal resolution of 700 TV lines and a limiting light sensitivity of 0.01 Lux @ f2.0. The fixed focus, wide angle lens gives a diagonal angle of view of 65° in water and 91° in air (2.9 mm lens) through a sapphire glass window, with focus fixed from 100 mm to infinity. Signal to noise ratio is >50 dB (AGC off).
The LCC-700-610 runs on 12–24 V DC at 100 mA maximum, gives a 1.0 V pk-pk composite video output in 625 line 50 Hz CCIR or 525 line 60 Hz EIA, and has built-in reverse polarity and surge protection. The titanium housing is rated to 4000 m as standard, with 6000 m as an option. The camera weighs 266 g in air (when fitted with MCBH4M) and 157 g in water, and the standard connectors are WETCON BH-4-MP or MCBH4M.
