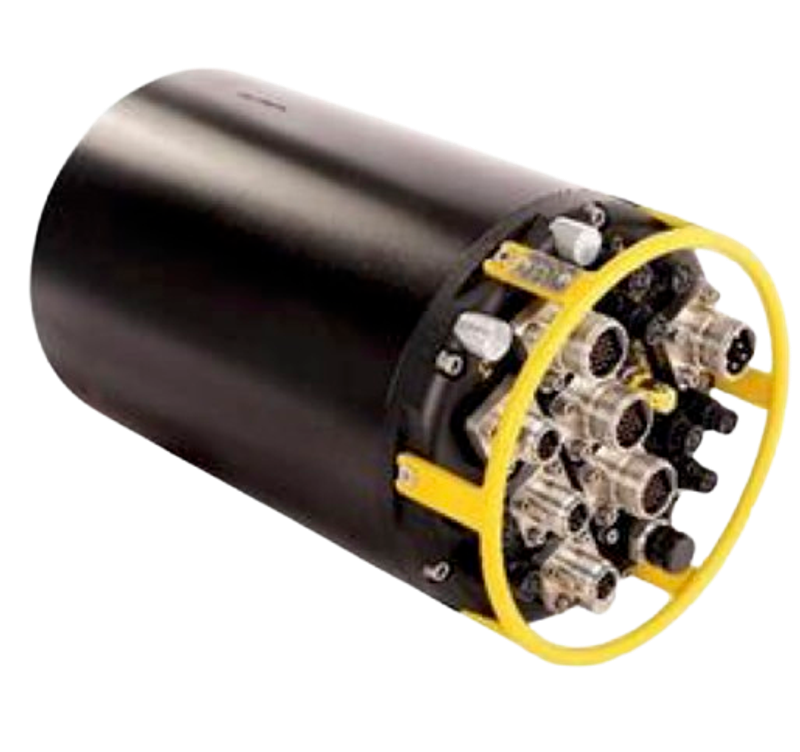

Mini Matrix MUX
Compact ROV Survey Multiplexer
Description
The Mini Matrix MUX is a compact subsea multiplexer for ROV systems carrying a large spread of sensors, based on the same technology as the Matrix MKII+. It provides a plug and play interface for sensors, with Ethernet and serial channels and options for analogue and HD video. All functions are controlled from a 19" 3U rack mount topside controller with touch screen interface and web-based remote control.
Power management in the Mini Matrix MUX includes individual 2-pole power switching, insulation monitoring and software resettable fuses on the DC power outputs, with 1200 W available DC power. The outputs are 2 × 48 VDC/24 VDC noise attenuated 6 A (software switchable), 1 × 48 VDC 3 A/24 V 6 A fixed output (hardware switchable), 10 × 24 VDC 2 A outputs with 2-pole relay and 1 × 110 VAC 2-pole relay output. The subsea unit takes 47–63 Hz, 85–264 VAC / 120–370 VDC, and the topside unit takes 90–265 VAC, 47–63 Hz.
The signal interface of the Mini Matrix MUX comprises 10 × RS232, 4 × software switchable RS232/RS485, 3 × Gb Ethernet 10/100/1000, 3 × analog video and 2 × 5 V TTL trigger, and all serial and trigger interfaces are isolated. The topside controller has a 7-inch Linux based touch screen for control and diagnostics, with status for all channels, voltage and current monitoring, alarm/warning logging and operational hours logging, plus a web browser-based interface for mirrored control. Monitoring includes water ingress detection, a subsea humidity sensor, topside and subsea temperature sensors, DC ground fault detection, and fibre, SFP and control board diagnostics.
The Mini Matrix MUX subsea housing is aluminium 6082-T6, hard anodized, or titanium grade 5, rated to 3000 MSW, with shock and vibration according to ISO 13628-6. Topside–subsea communication runs over a Seacon OPT-G1-SM fibre connector, with a Schilling fibre interface as an option.
