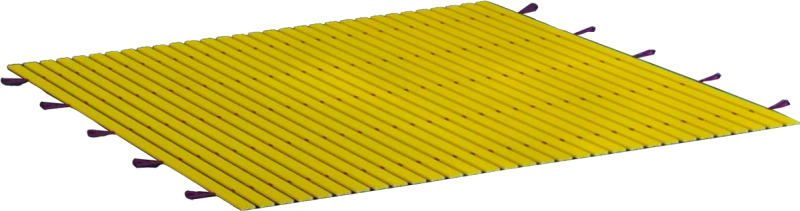

MudMat® 9 Standard

Description

The MudMat® 9 Standard is a heavy-duty polyurethane (PU) mat for offshore and onshore use, measuring 3600 × 2600 × 30 mm. It can be used as subsea support, as a landing and positioning device, or as seabed, pipeline and cable protection.

The MudMat® 9 Standard is made of Polyurethane PP-PU-100-65D High Performance Elastomer (PP-Elast PU 65 D). Certified lifting slings, 2 Te, green, are integrated in the mat during fabrication. The mat weighs 220 kg in air and 31 kg in seawater, and is bundled for storage and transport with a bundle size of 367 × 60 × 20 cm.

The MudMat® 9 is also available as MudMat® Reinforced, with steel reinforcement, weighing 238 kg in air and 49 kg in seawater. The MudMat® series also includes MudMat® 30, 18 and 4, and custom made solutions can be provided on request.

Technical Specification

Type

MudMat® 9 Standard

Material

Polyurethane PP-PU-100-65D High Performance Elastomer (PP-Elast PU 65 D)

Dimensions

3600 × 2600 × 30 mm

Mass in air / seawater (Standard)

220 / 31 kg

Mass in air / seawater (Reinforced)

238 / 49 kg

Bundle size (L × W × H)

367 × 60 × 20 cm

Integrated lifting slings

2 Te, green (certified)

Reinforcement

Steel reinforcement available (MudMat® Reinforced)

Applications

Subsea support, landing and positioning device, seabed, pipeline and cable protection

Series: MudMat® 30

6000 × 5000 × 30 mm; 674 / 94 kg (Standard), 730 / 149 kg (Reinforced); bundle 614 × 60 × 40 cm

Series: MudMat® 18

3600 × 5000 × 30 mm; 410 / 57 kg (Standard), 445 / 91 kg (Reinforced); bundle 367 × 60 × 40 cm

Series: MudMat® 4

2400 × 1600 × 30 mm; 91 / 13 kg (Standard), 99 / 20 kg (Reinforced); bundle 243 × 30 × 15 cm
