Multipurpose Cleaning Tool

Description

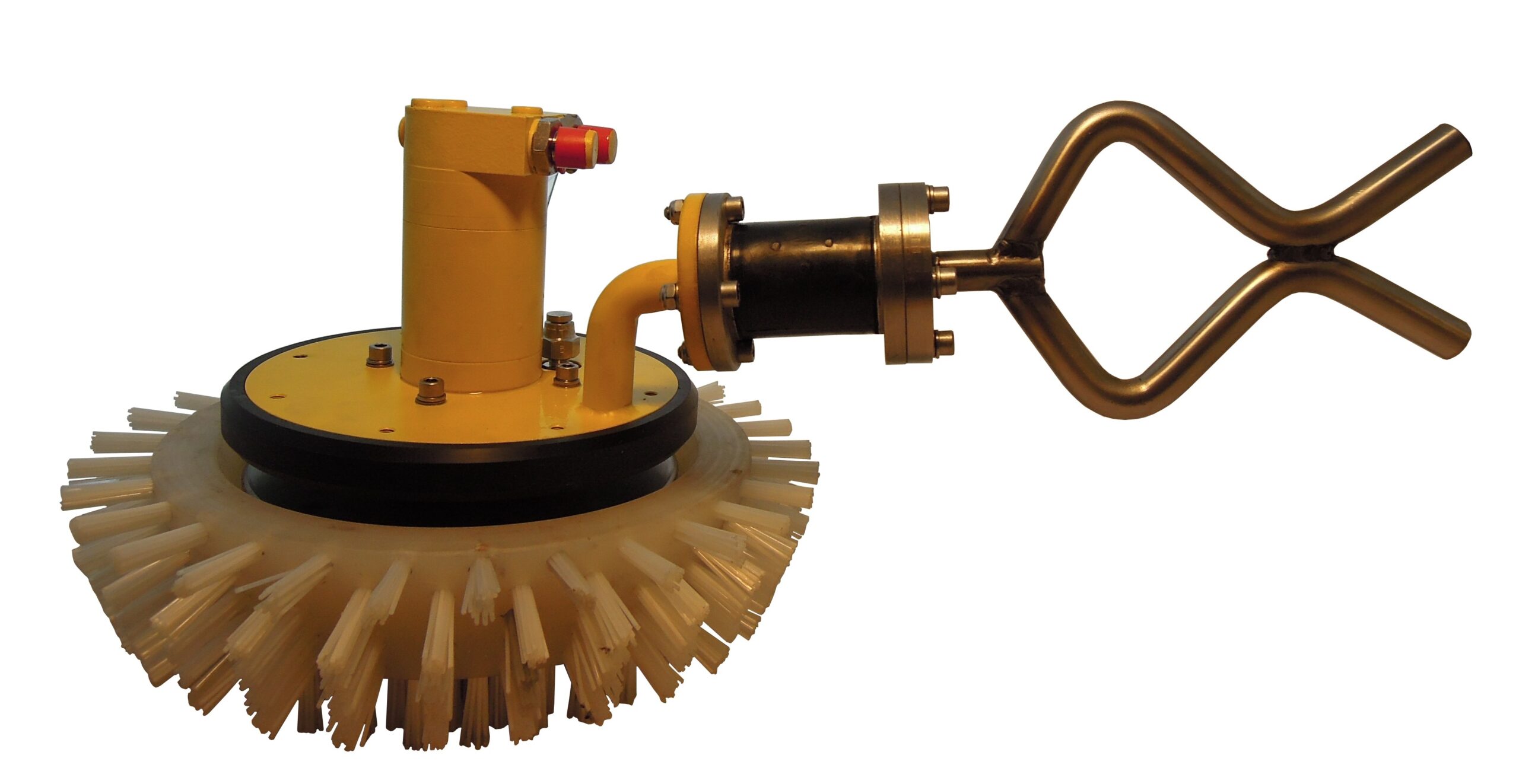

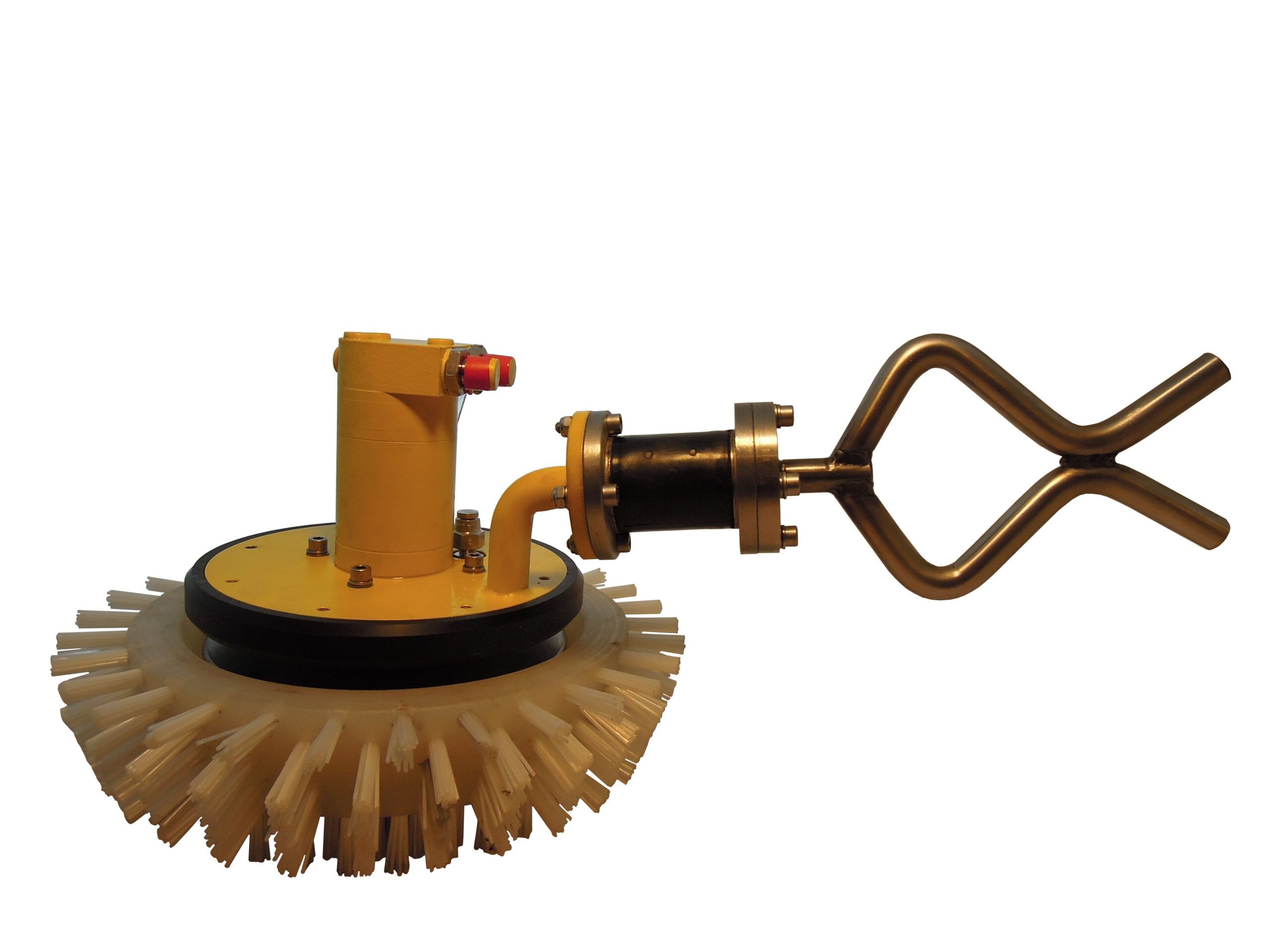

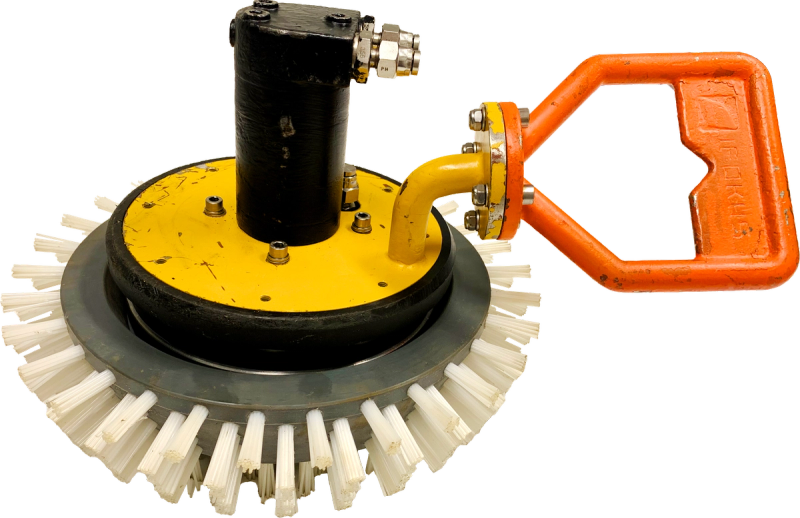

The Multipurpose Cleaning Tool (MCT) is an ROV tool for cleaning a wide range of surfaces and removing marine growth. It has a brush head rotated by a hydraulic motor, and the rotation is reversible.

A mild acid cleaning solution is dispensed through the brush head. The tool is supplied with nylon brushing discs and is fitted with a flexible fishtail handle for ROV manipulators. It requires low maintenance.

The MCT measures 580 × 310 × 260 mm and weighs 15.9 kg in air with hoses and brush. It has 3.5 m of fitted hose, runs on Tellus 22 or similar hydraulic fluid, and is supplied in a plastic Peli case.

Technical Specification

Drive

Hydraulic motor

Rotation

Reversible / bi-directional

Brush

Nylon brushing discs

Cleaning solution

Mild acid, dispensed through the brush head

Handle

Flexible fishtail handle for ROV manipulators

Dimensions

580 × 310 × 260 mm

Weight in air (with hoses and brush)

15.9 kg

Hose length (fitted)

3.5 m

Hydraulic fluid

Tellus 22 or similar

Packing

Plastic Peli case
