NOR Big Bag Installation frame

Description

The NOR Big Bag Installation frame is a subsea installation frame developed to install concrete mattresses or big bags at seabed. It is designed for use by divers, by ROV, or from a vessel with applicable sensors.

For ROV and diver use the NOR Big Bag Installation frame is operated manually, with double safety locks. Concrete mattresses and big bags can also be installed with hydraulic supply from a vessel HPU. The frame has forklift pockets and ROV grabber bars, and is certified according to DNV GL ST E2.7-3 R60.

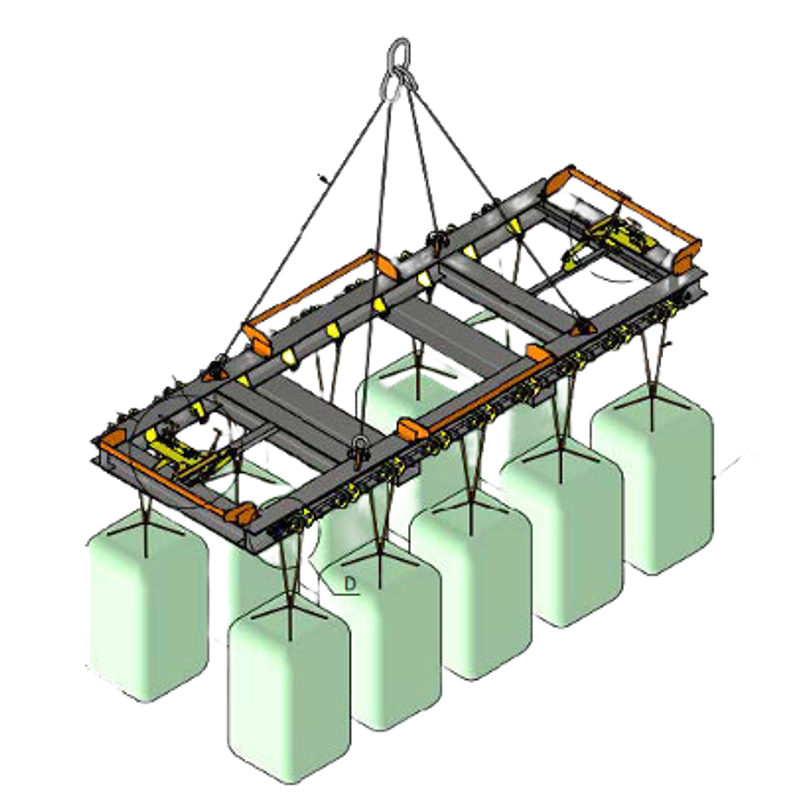

The NOR Big Bag Installation frame has a maximum gross weight of 24 000 kg. The frame alone weighs 2800 kg in air and approx. 2430 kg in water, and measures 6340 × 2500 × 640 mm. The general arrangement drawing in the datasheet shows the frame lifting 10 big bags of 900 × 900 × 1600 mm on flat straps, connected with shackles G-4163 (WLL 3.5t).

Technical Specification

Application

Installation of concrete mattresses or big bags at seabed

Operation

By divers, ROV, or vessel with applicable sensors

Operation (ROV and diver)

Manual, with double safety locks

Operation (vessel)

Hydraulic supply from vessel HPU

Certification

DNV GL ST E2.7-3 R60

Handling

Forklift pockets; ROV grabber bars

Maximum gross weight

24 000 kg

Weight in air

2800 kg (frame only)

Weight in water

2430 kg approx. (frame only)

Dimensions

6340 × 2500 × 640 mm

Big bags in drawing

10 × BigBag 900 × 900 × 1600 mm

Flat straps in drawing

10 × Flatstrap L=2000

Shackles in drawing

18 × Shackle G-4163, WLL 3.5t

Drawing reference

BigBag Lifting, DWG no. P25010080-40504-R-XS-0100
