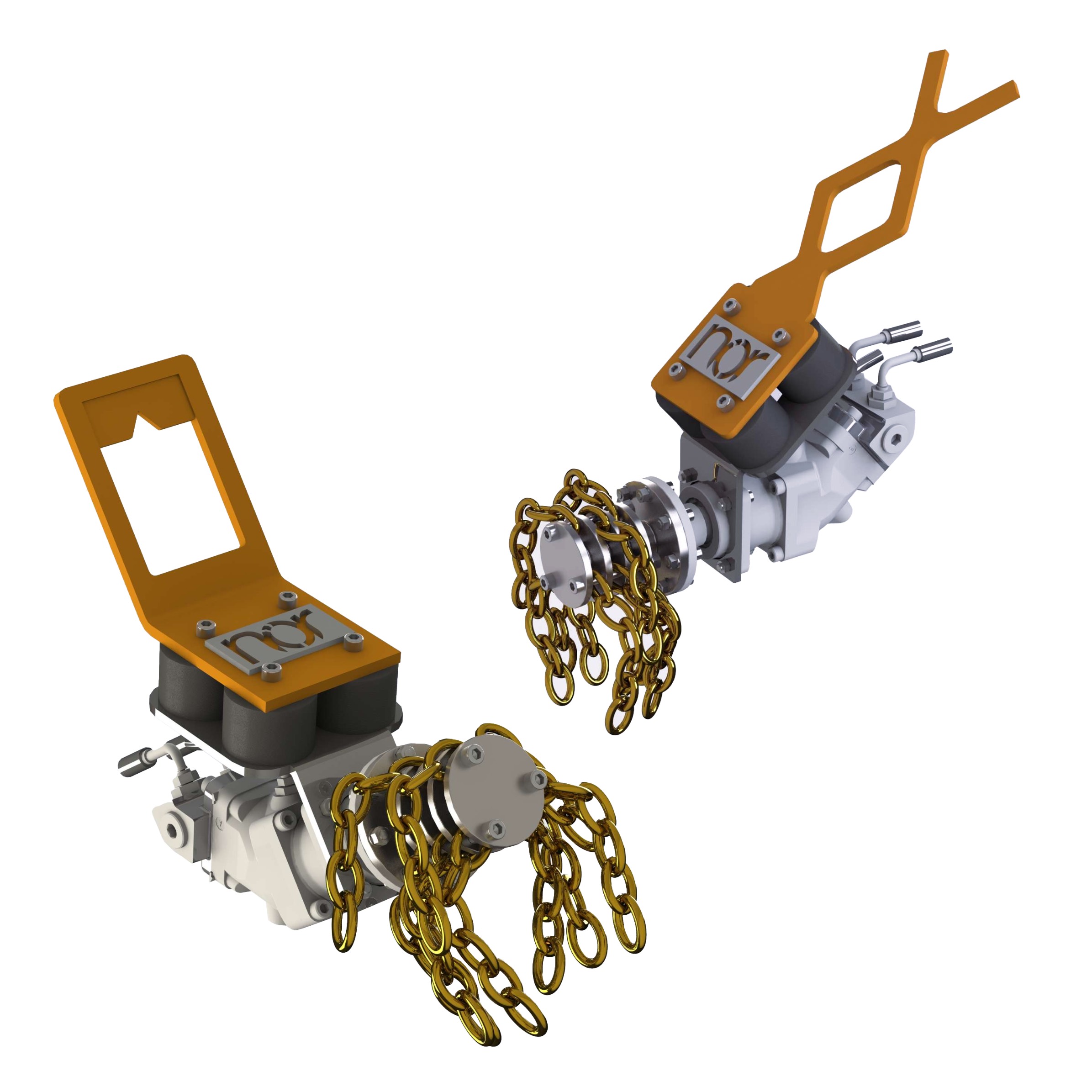

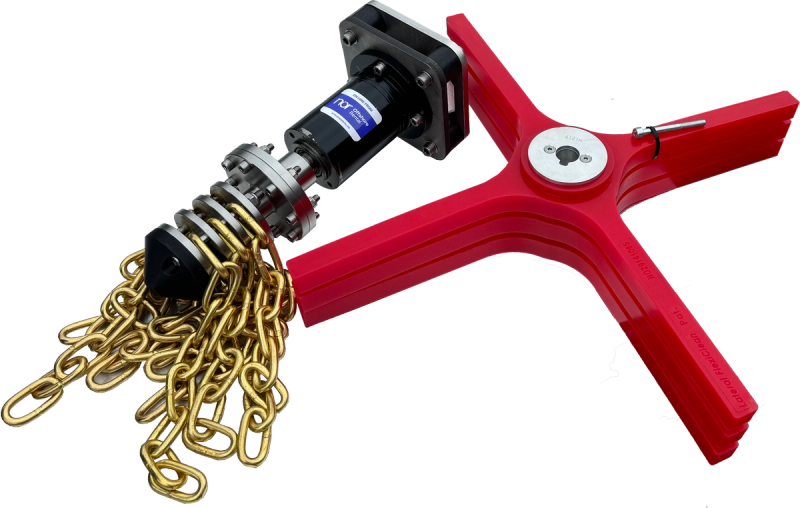

NOR Chain Flail Cleaning Tool

Description

The NOR Chain Flail Cleaning Tool is a hydraulic tool designed for heavy duty cleaning of marine growth. The NOR Chain Flail Cleaning Tool can be supplied with brass or steel chain links.

The tool has anti shock mounting points intended to help prevent damage to manipulators during operation. It is fitted with a Fishtail or Atlas/Rigmaster manipulator handle.

The NOR Chain Flail Cleaning Tool weighs 20 kg in air and operates within a pressure range of 0–140 bar and a flow range of 5–30 lpm. It has a 4.0 m hose and 2x JIC 8 hydraulic connections.

Technical Specification

Application

Heavy duty cleaning of marine growth

Chain links

Brass or steel

Mounting

Anti shock mounting points

Weight in air

20 kg

Manipulator handle

Fishtail or Atlas/Rigmaster

Pressure range

0–140 bar

Flow range

5–30 lpm

Hose length

4.0 m

Hydraulic connections

2x JIC 8
