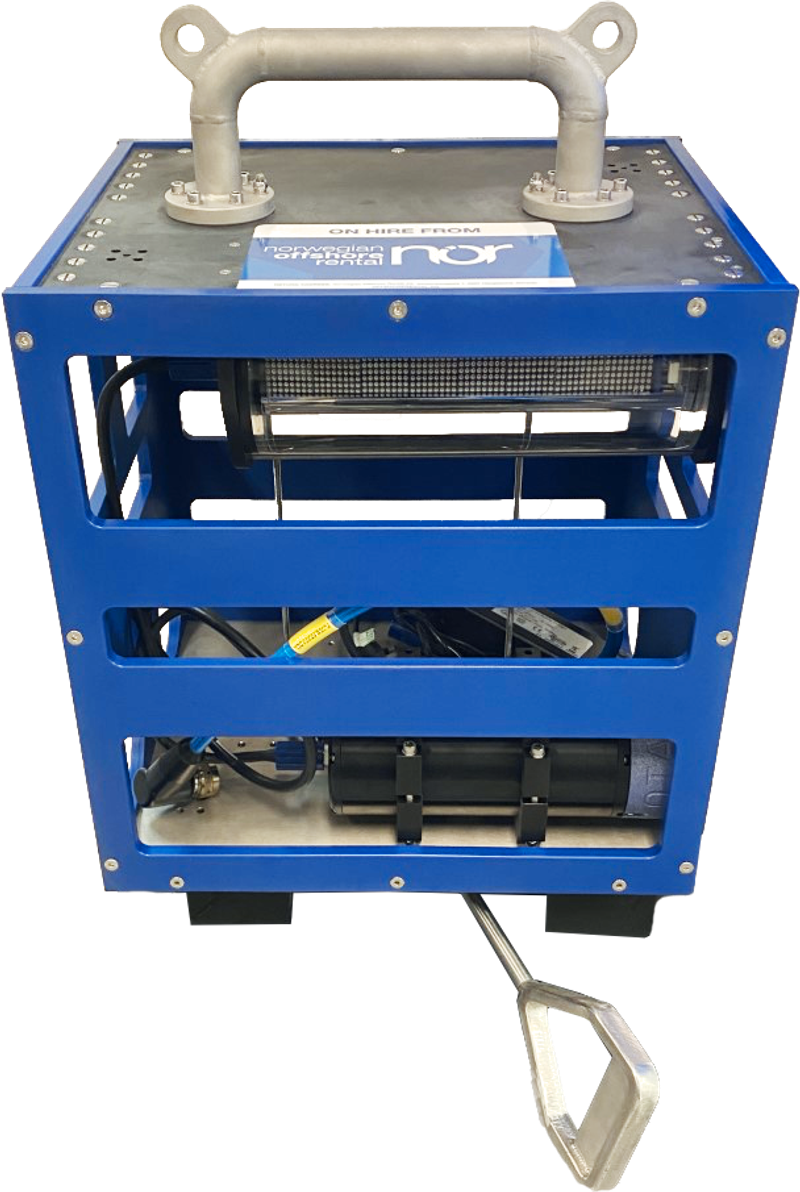

NOR-Otaq Gyro Frame

Description

The Otaq Gyro Frame is a gyro frame used for subsea structure positioning or as a standard inclinometer. Heading, roll and pitch are read out on the subsea display, with different possibilities for positioning.

The Otaq Gyro Frame can also be used with a MET stab, and the MET stab receptacle can be pre-installed on the structure. Power comes from a 10 Ah battery with ROV on/off switch; more battery capacity and other equipment integrations are available on request (optional).

The Otaq Gyro Frame measures 482 × 399 × 624 mm and is rated to 3000 MSW. It weighs 49 kg including MET stab assembly, 64 kg including Octans Gyro, and approximately 25 kg in water.

Technical Specification

Dimensions

482 × 399 × 624 mm

Weight (including MET stab assembly)

49 kg

Weight (including Octans Gyro)

64 kg

Weight in water

Approx. 25 kg

Battery capacity

10 Ah (more capacity available on request)

Battery switch

ROV on/off switch

Depth rating

3000 MSW

Read-out

Heading, roll and pitch on subsea display

MET stab

Can be used with MET stab; receptacle can be pre-installed on structure

Other equipment integrations

Available on request (optional)
