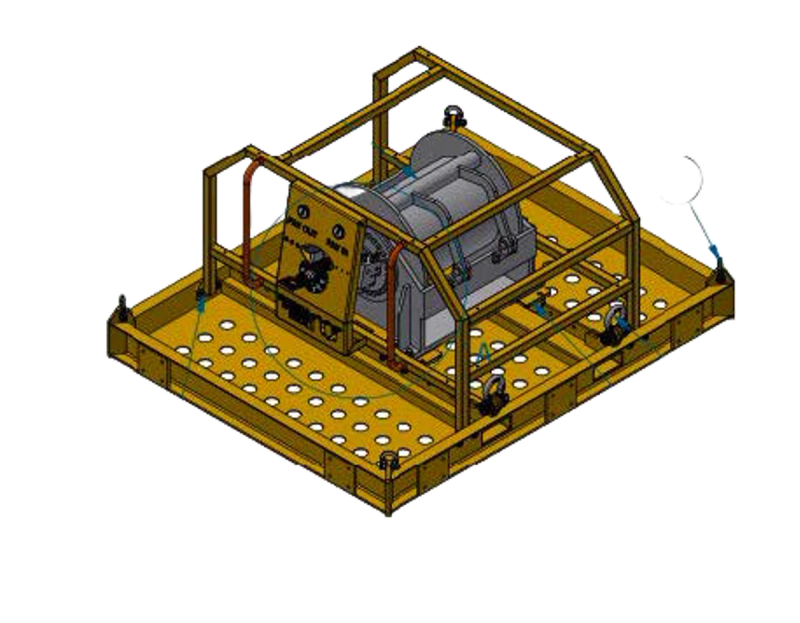

NOR Subsea Winch 20Te with lifting frame

Hydraulic Subsea Winch, 3000 m Rated

Description

The NOR Subsea Winch 20Te with lifting frame is a hydraulic subsea winch intended for offshore subsea pulling operations. The winch is operated locally and powered hydraulically from an external HPU supplied by ROV, through a 60 mm valve stab.

The NOR Subsea Winch 20Te has a maximum pressure of 230 bar, a maximum flow of 290 l/min and a maximum speed of 25 m/min. Maximum back pressure on the drain line is 1.5 bar. Wire rope capacity is 218 m of 30 mm rope, and the depth rating is 3000 m.

The frame measures 2421 × 3015 × 1409 mm. The weight is 3092 kg in air and 2555.74 kg in water. The winch is supplied on a certified lifting frame, which can be delivered with mud skirts for placement on soft seabed (optional).
