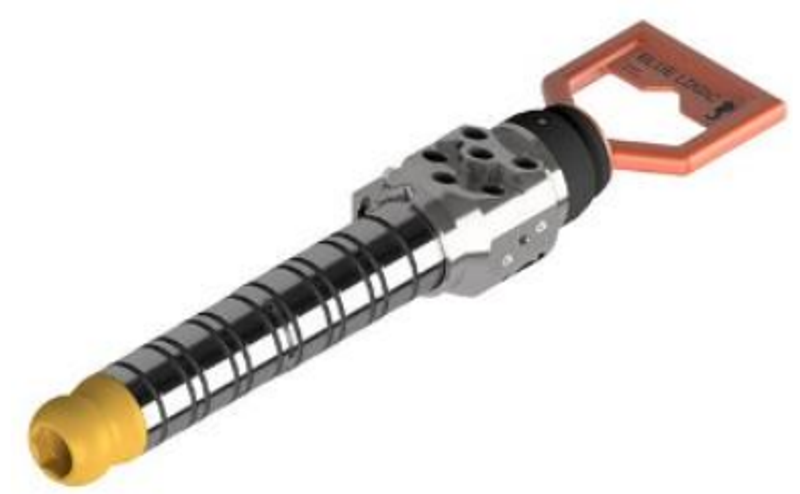

Ø55/Ø57 Valvestab System

Hot Stab and Ball Valve Quick-Connector

Description

The Ø55/Ø57 Valvestab System is a hydraulic quick-connector that combines hot stab and ball valve technologies in one unit. It connects and disconnects with no fluid spill or water ingress. The design standards stated are API 6A, ISO 10423 and NE-EN 13445.

The Ø55/Ø57 Valvestab System has a stab diameter of Ø55/Ø57 mm, a depth rating of 3000 m and an operating temperature of −4 to +60 °C. The working pressure is 690 bar / 10 000 psi, the maximum flow is up to 45 l/min and the typical pressure drop is 30 bar at 45 l/min. The hydraulic interface is 6 × 3/8″ BSP with a Ø6 mm hydraulic bore.

The body of the Ø55/Ø57 Valvestab System is Super Duplex for intervention / short term operations, and the seal material is stated as HPU. The system is compatible with mineral based and synthetic control fluids. The VStab weighs 9.2 kg in air and 7.9 kg in water, and the receptacle weighs 20.6 kg in air and 17.9 kg in water.
