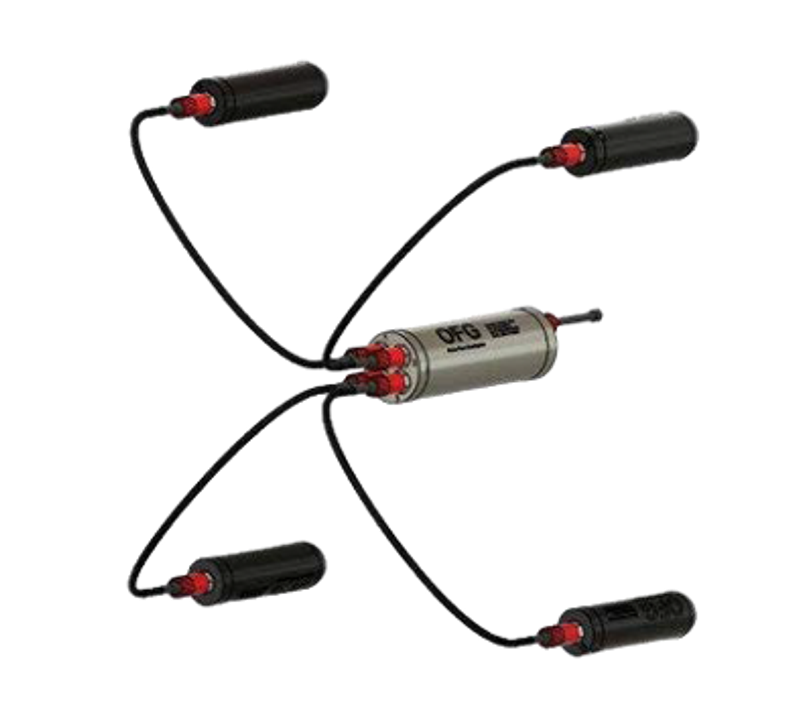

OFG Hypermag
Subsea Magnetometer Sensor Array
Description
The Ocean Floor Geophysics (OFG) Hypermag is a subsea magnetometer sensor array combined with a proprietary software algorithm for real-time magnetic measurements that are compensated for disturbances from the host vehicle caused by heading, attitude, electric currents and/or servo motors. Individual sensors are synchronously sampled across each set of two (2) or four (4) magnetometers, allowing real-time gradient measurements on suitable platforms.
The OFG Hypermag outputs corrected and raw magnetic intensity for three components and total field, at output sample rates from 10 Hz to 2400 Hz per sensor. Each sensor is a 3-axis fluxgate magnetometer with 1 kHz analog bandwidth and a standard (±60 µT) or extended (±100 µT) dynamic range. Magnetometer noise is ≤10 pTrms/√Hz @ 1 Hz (-SR-LN), ≤12 pTrms/√Hz @ 1 Hz (-ER-LN) and >10 pT to ≤25 pTrms/√Hz @ 1 Hz (-SR-UC and -ER-UC); noise levels of the installed system depend on the host platform.
Power consumption is 2 W including sensors and interface bottle, at 9-32 VDC, with power and data over a single SubConn 8-pin MCIL subsea cable. The Sensor Interface Bottle (SIB) outputs data over RS-232 or UDP/IP with user-configurable UDP ports, and OFG's MagTrace software on Windows is used for real-time control and visualisation.
The OFG Hypermag is offered as dual or quad systems in export controlled and uncontrolled (-UC) versions, with Delrin housings rated to 1000 m or titanium (Gr5) housings rated to 6000 m. Each magnetometer measures 175 mm in length and 50 mm in diameter, and the SIB measures 220 mm in length and 75 mm in diameter.
