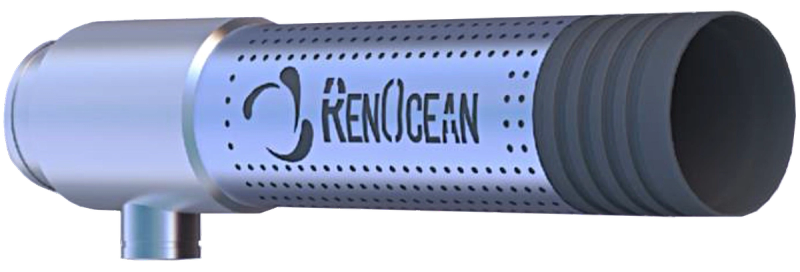

REN ROV Dredger 10 inch
ROV-Mounted Subsea Dredger
Description
The RenOcean REN ROV Dredger 10 inch is a subsea dredger supplied as a one-box package, ready to be mounted on an ROV. It has a flow rate of 1230 m³/hrs – 21 000 lpm and a removal capacity of 110 m³/hrs – 175 mt/hrs.
The REN ROV Dredger requires a hydraulic supply of 150 lpm @ 200 bar, and the datasheet states that the low hydraulic flow and pressure requirement allows use on vehicles of different sizes. Max rock size is 230 mm (theoretical). Approximate weight is 95 kg in air and 75 kg in water.
The datasheet lists 3 × ½" certified hydraulic hoses, 3 m long with 08 JIC female swivel, a 3.5 metre suction hose with Camlock for mounting on the dredger, and a 0.7 m long suction head, 45° or straight, with fishtail or D-handle. Total shipping weight is approx. 200 kg. Options are hot stab, back flush, a shipping container / integrated pallet from 1200 × 800 × 800 mm (l × w × h), a discharge extension of 0.9 m to 5 metres, and additional spare parts and custom parts on request.
