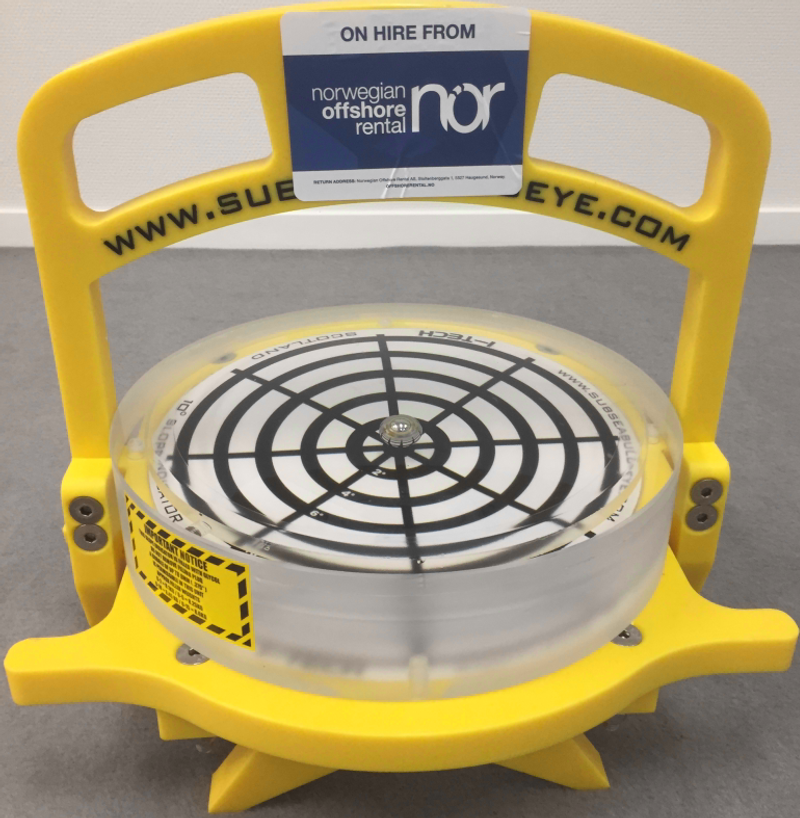

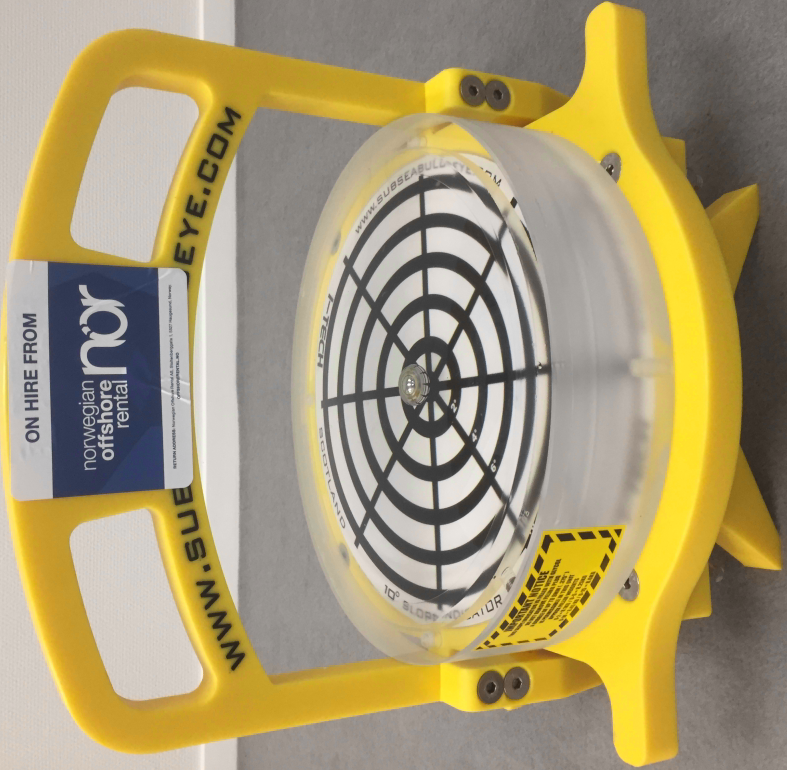

ROV Portable Subsea Bullseye
Subsea Inclination Bullseye, 0–10°
Description
The ROV Portable Subsea Bullseye is a 350 mm bullseye for monitoring inclination subsea, with a 0–10 degree range. When calibrated to a subsea structure, the bullseye gives a reading of inclination to an accuracy of ±0.25 degree. Readings can be taken by ROV, camera systems or divers.
The ROV Portable Subsea Bullseye has an all-polymer construction in non-corrosive materials and a maximum operating depth of 6000 m. It weighs 13.1 kg in air (complete), has an outer diameter of 350 mm and a dome diameter of 313 mm, and the overall height without handle is 200 mm.
