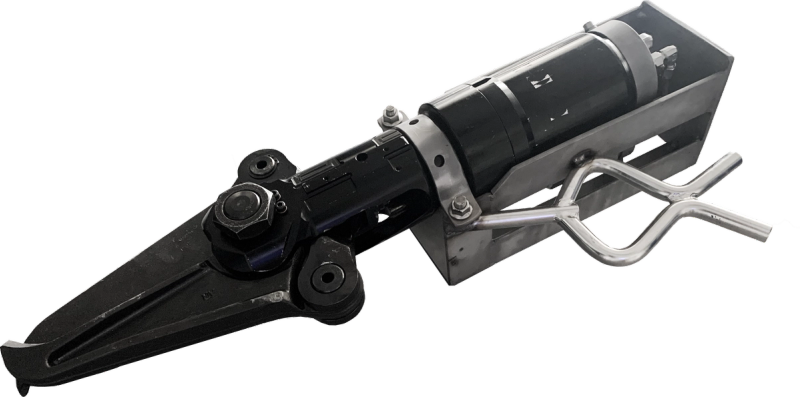

ROV Scissor S180

Description

The S180 T-Rex is a hydraulic ROV scissor operated by an ROV for cutting pipes, round bars, scaffolding and other materials. It has a fishtail handle for ROV operation and a built-in booster.

The S180 T-Rex has an opening width of 185 mm and a maximum cutting performance of Ø 30 mm with solid bar. The power input is 170 bar and the power output is 700 bar. The specification table lists the built-in booster at 690 bar, while the datasheet text states that the booster enables 680 bar when operating through the ROV. The S180 T-Rex weighs 13.9 kg.

Technical Specification

Opening width

185 mm

Weight

13.9 kg

Max cutting performance with solid bar

Ø 30 mm

Power input

170 bar

Power output

700 bar

Built-in booster

690 bar (text states 680 bar when operating through ROV)

ROV handle

Fishtail handle

Applications

Cutting pipes, round bars, scaffolding and other materials
