ROV Scissor S270

Description

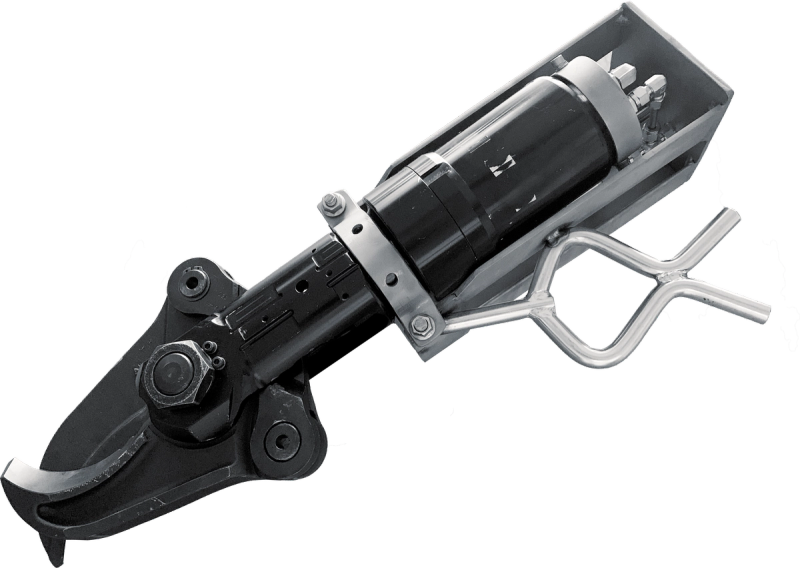

The S270 Hydraulic ROV Scissor is a hydraulic scissor operated by an ROV for cutting pipes, round bars, scaffolding and other materials. It has a fishtail handle for ROV operation and a built-in booster.

The S270 Hydraulic ROV Scissor has an opening width of 270 mm and weighs 18 kg. The power input is 170 bar and the power output is 700 bar. The specification table lists the built-in booster at 690 bar, while the datasheet text states that the booster enables 680 bar when operating through the ROV.

The S270 datasheet includes a cutting specification table for round bar, flat bar, round pipe, square tube and rectangular tube in categories A to K. The sizes marked as max cutting size are round bar ≥32 (category I), round pipe 88.9 × 4.0 (category I), flat bar 140 × 10 (category K) and square tube 70 × 5 (category K). Units are not stated in the cutting table.

Technical Specification

Opening width

270 mm

Weight

18 kg

Power input

170 bar

Power output

700 bar

Built-in booster

690 bar (text states 680 bar when operating through ROV)

ROV handle

Fishtail handle

Applications

Cutting pipes, round bars, scaffolding and other materials

Cutting table, round bar (unit not stated)

A ≥14, B ≥16, C ≥18, D ≥20, E ≥22, F ≥24, G ≥26, H ≥28, I ≥32, J ≥36, K ≥40

Cutting table, flat bar (unit not stated)

A 30 × 5, B 40 × 5, C 50 × 5, D 60 × 5, E 80 × 8, F 80 × 10, G 100 × 10, H 110 × 10, I 120 × 10, J 130 × 10, K 140 × 10

Cutting table, round pipe (unit not stated)

A 21.3 × 2.3, B 26.4 × 2.3, C 33.7 × 2.6, D 42.6 × 2.6, E 48.3 × 2.9, F 60.3 × 2.9, G 76.1 × 3.2, H 76.1 × 4.0, I 88.9 × 4.0, J 88.9 × 5.0, K 101.6 × 4.0

Cutting table, square tube (unit not stated)

C 35 × 3, D 40 × 4, E 45 × 4, F 50 × 4, G 55 × 4, H 60 × 4, I 60 × 5, J 70 × 4, K 70 × 5 (A and B not stated)

Cutting table, rectangular tube (unit not stated)

D 50 × 25 × 2.5, E 50 × 30 × 3.0, F 60 × 40 × 3.5, G 80 × 40 × 3.0, H 80 × 40 × 4.0, I 80 × 40 × 5.0, J 100 × 50 × 4.0, K 100 × 50 × 5.0 (A–C not stated)

Max cutting size (as marked)

Round bar ≥32 (I), round pipe 88.9 × 4.0 (I), flat bar 140 × 10 (K), square tube 70 × 5 (K); rectangular tube not marked
