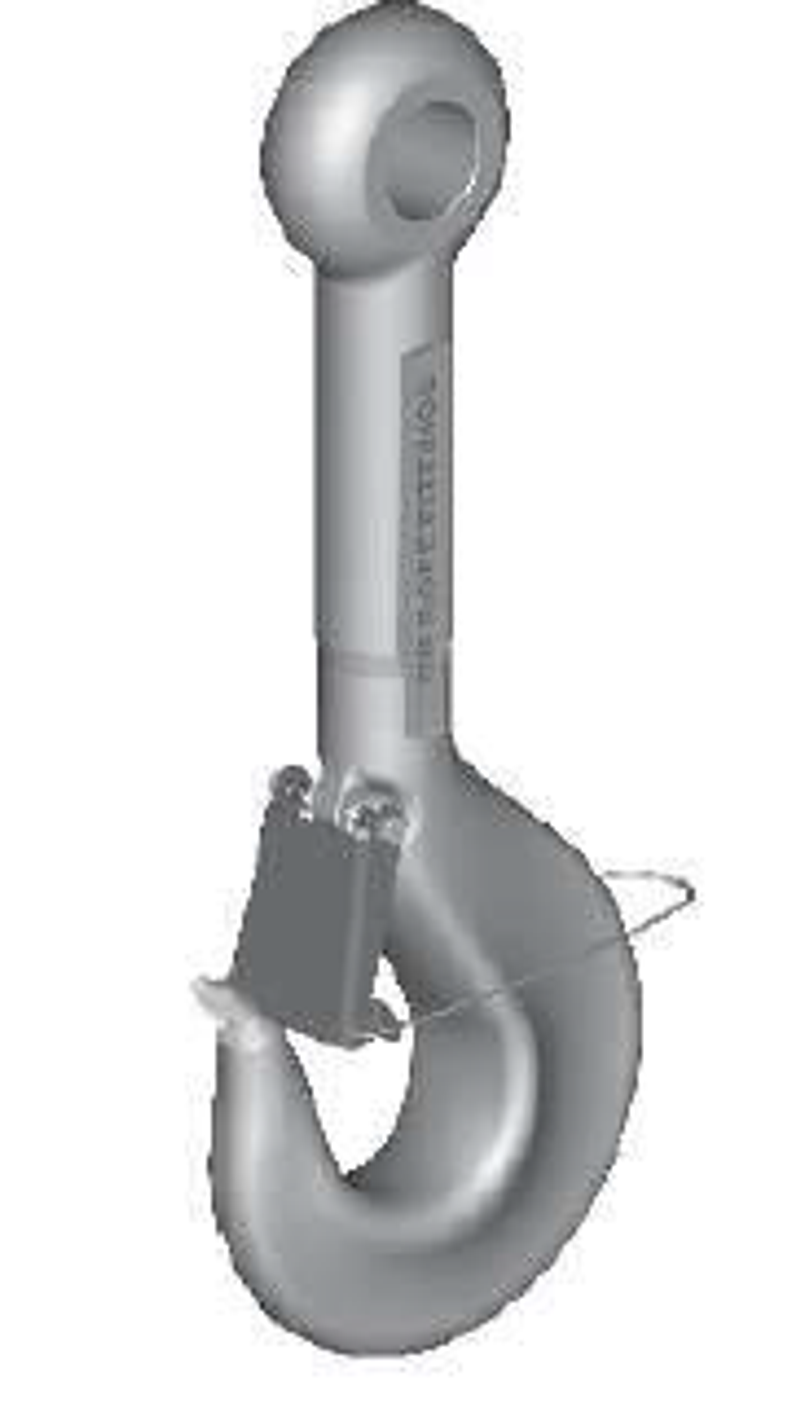

ROV Shank Hook Type HK5

Alloy Steel ROV Shank Hook

Description

The ROV Shank Hook Type HK5 is an ROV hook in alloy steel, quenched and tempered, with a painted finish and a safety factor of 4 times. The HK5 series is listed with working load limits (WLL) from 5 ton to 400 ton and MBL from 20 ton to 1600 ton.

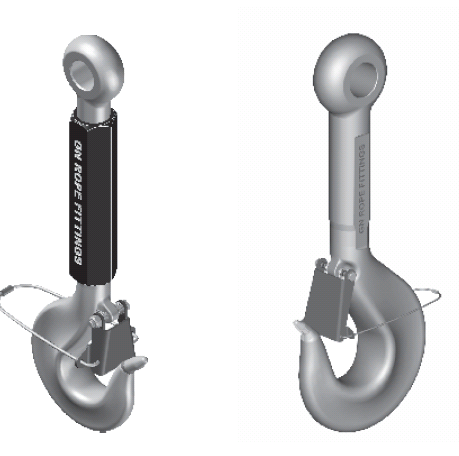

The ROV Shank Hook Type HK5 is shown in two designs: one type for hook WLL 5 ton up to WLL 80 ton, and one type for hook WLL 100 ton up to WLL 400 ton. Weight ranges from 7 kg (art. no. 53000005, WLL 5 ton) to 900 kg (art. no. 53000400, WLL 400 ton). Dimensions A to L are listed in mm for each size, with tolerances of ±5 % on forged parts and ±1 mm on machined parts.

A manufacturer certificate and a proofload certificate for the ROV Shank Hook Type HK5 are available on request.
