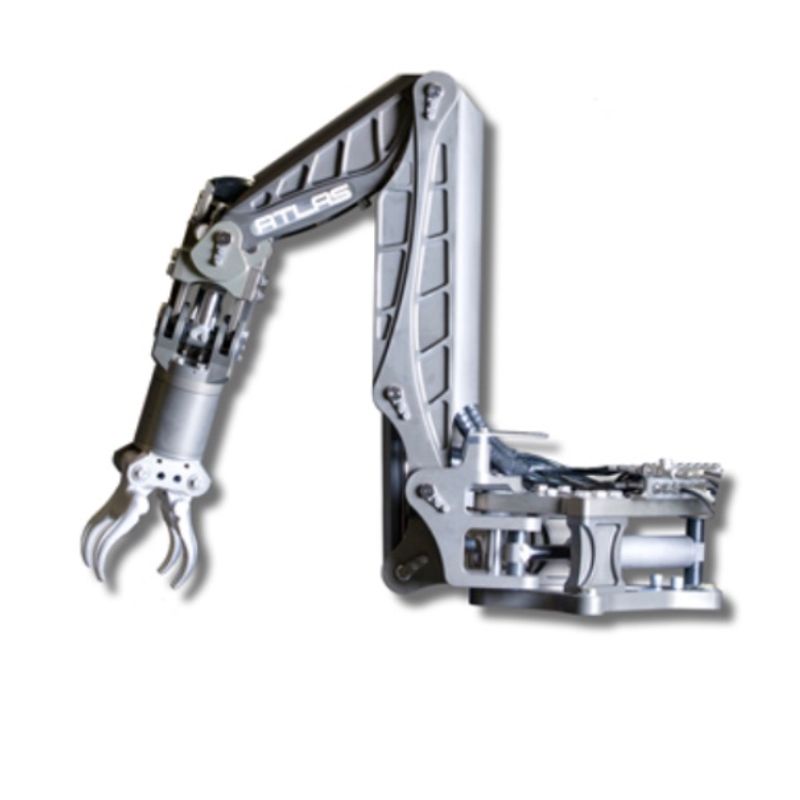

Schilling ATLAS 7R
Seven-Function Heavy-Duty Grabber
Description
The Schilling ATLAS 7R is a heavy-duty, seven-function grabber designed to lift heavy loads. The ATLAS 7R has six degrees of freedom and a depth rating of 6500 msw.
The Schilling ATLAS 7R arm has a nominal maximum lift of 500 kg and a wrist torque of 205 Nm. It weighs 73 kg in air and 50 kg in water, and uses a hydraulic flow of 5.7 lpm at a maximum pressure of 3000 psi / 207 bar.
Gripper options shown for the ATLAS 7R are a 6" parallel gripper, a 7.8" four finger intermeshing gripper and an 11.5" four finger intermeshing gripper.
